18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant
18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant
18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant
18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant
18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant
18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant
18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant
18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant
Specifications
Brand Name :
KHJ
Model Number :
Ex-KAF18,Ex-KAF30
Certification :
ATEX,IECEx,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs per day
Delivery Time :
3-8 work days
Packaging Details :
560*230*130mm
Product Name :
Arowana series
Input Voltage :
100-240 VAC,141-339 VDC
Rated Power :
18W,30W
Luminaire Efficacy :
100lm/W
Area Classification :
Group II Zone 1 & 21 and 2 & 22
Connecting Terminals :
3*1.0-4mm²(L+N+PE)
Availableg cable outer diameter :
φ7-φ14(mm)
Cable Entries :
2XNPT 3/4” (M20*1.5, M25*1.5 are optional)
Description
LED Explosion Proof Flood Light,18W.30W, Zone 1&2 , vibration and shock resistant


LED Explosion Proof Flood Light,18W.30W, Zone 1&2 , vibration and shock resistant

Highlight:LED Explosion Proof linear light, vibration and shock resistant

Features And Benefits:

1. High efficacy LED Source with long lifespan>100,000 hoursz.

2. Vibration and shock resistant.

3. Low THD around 10%,Less interference.

4. Environmentally friendly, no mercury.

5. 5-year performance warranty.

Product Important Information:

Type Of ProtectionEx d, Ex t
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-1,(IEC)EN 60079-31
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8

Area ClassfictionZone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation(IEC)EN 60079-14
CertificateLCIE 12 ATEX 3069 X / 01
Equipment Coding

Ex d IIB T6 Gb
Ex tb IIIC T80℃ Db IP66

Temperature Class-40℃ ≤ Ta ≤ +55℃
GasDust
T6T80℃
ATEx Coding18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock ResistantII 2 G D
Ingress ProtectionIP66 (IEC)EN 60529
Cable entryM20*1.5 or M25*1.5 and 3/4 NPT
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and Safety Requirements

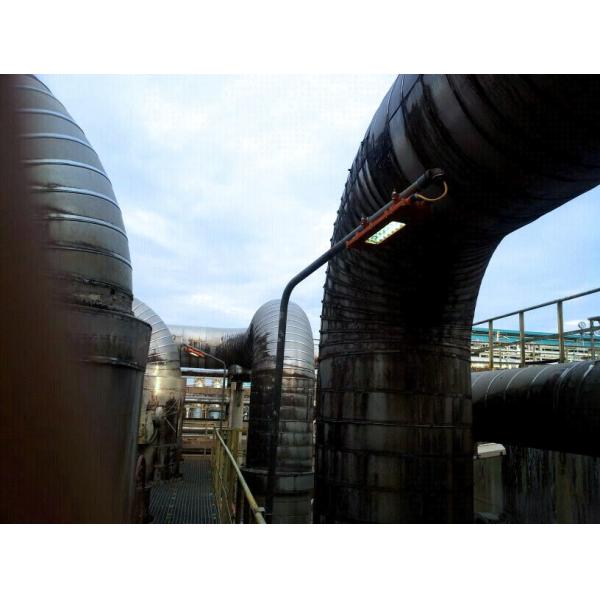

Applications:
It is ideally suited for oil & gas, chemical, petrochemical and other potentially explosive industrial environments
1. Areas requiring frequent on-and-off of lights
2. Onshore and offshore platforms
3. Drilling rigs
4. Other potentially explosive industrial environments

18W 30W Flame Proof Led Flood Light Atex Zone 2 Lighting Shock Resistant

Ordering information:

P/N

Operating Voltage(V)

Luminous Flux(lm)

Power(W)

CRI

Color Temp.

CCT(K)

Temp. Classification

Ex-KAF18WM-E

100~240 AC (141~339 DC)

14761870Warm white3000±300T6
Ex-KAF18NH-E18001870Natural white4000±300T6
Ex-KAF18NH-E18001870Natural white5000±300T6
Ex-KAF18CH-E18001870Cool white5700±300T6
Ex-KAF30WM-E24603070Warm white3000±300T6
Ex-KAF30NH-E30003070Natural white4000±300T6
Ex-KAF30NH-E30003070Natural white5000±300T6
Ex-KAF30CH-E30003070Cool white5700±300T6


Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
4. Various designs.
5. Accept small orders.
6. Professional lighting manufacturer for more than 10 years.
7. Gold supplier.
8. Provide high quality products and best service.
