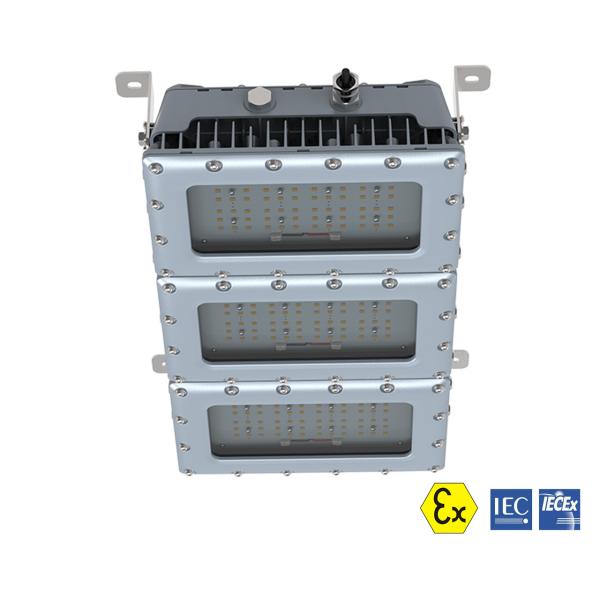

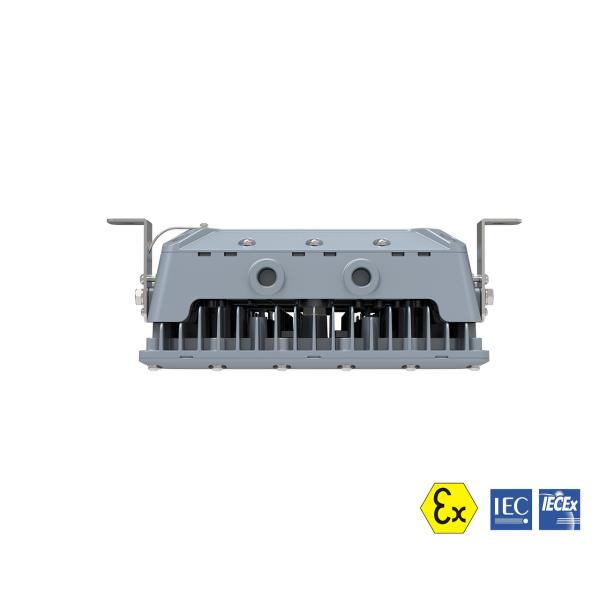

IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps
Specifications
Brand Name :
KHJ
Model Number :
Ex-KT240,Ex-KT300,Ex-KT360
Certification :
ATEX,IECEx,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs per day
Delivery Time :
3-8 work days
Product Name :
Tank Series
Operating Voltage :
100-277 VAC，347-480 VAC,141-391VDC,491-679 VDC
Power :
240W 300W 360W
Luminaire Efficacy :
Max:152lm/W
Area Classification :
Group II, Zone 1 & 21 and 2 & 22
Ambient Temperature :
-40℃-+55℃
Connecting Terminals :
3*1.0-4mm²(L+N+PE)
Available cable outer diameter :
φ7-φ20(mm)
Description

Ultra long-life Explosion Proof LED High Bay Lighting Ex Tank Series 240W 300W 360W(Three lamp)

Ex Tank Series 240W 300W and 360W Explosion Proof LED High Bay Lighting

Highlight: Explosion Proof LED High Bay Lighting, Ex Tank Series 240W 300W 360W

Features And Benefits:

1. High efficacy: up to 140lm/W.
2. Professional light distribution design.
3. Temperature compensation technology for longer life.
4. Low maintenance costs and power consumption reduced by over 50%.
5. 320W,400W and 480W available. Optional luminous intensity distribution for different applications.

6. Easy Installation and Maintenance.


Product Important Information:

Type Of Protection Ex db ,Ex tb
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN 60079-31
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction

Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,
Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation (IEC)EN 60079-14
Certificate pending
Equipment Coding

II 2 G Ex db IIC T* Gb
II 2 D Ex tb IIIC T* Db IP66
Temperature Class Rated power (W) -40℃ ≤ Ta ≤ +55℃
Gas Dust
240W~360W T5 T95℃
ATEx Coding IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three LampsII 2 G / II 2 D
Ingress Protection IP66 (IEC)EN 60529
Cable entry M20*1.5,M25*1.5,3/4 NPT
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and Safety Requirements

Applications:
LED Ex Tank series Explosion Proof Floodlight is applicable for zone I and zone II , or gas area, restricted area or heavy industrial processing equipment area, drilling platform and other coastal or offshore dangerous areas, Such as port, ship, oil, petrochemical, oil depot.
IECEx Explosion Proof LED High Bay Lighting 240W 300W 360W Three Lamps

Ordering information:

P/N Operating Voltage(V) Luminous Flux(lm) Power(W) CRI Color Temp. CCT(K) Temp. Classification
Ex-KTK240**CH-P3-E

100-277 VAC
(141-392 VDC)

 33520

240

 70 Cool white 5700±300k T5
Ex-KTK240**NH-P3-E 33520 70 Natural white 5000±300k T5
Ex-KTK240**NH-P3-E 33520 70 Natural white 4000±300k T5
Ex-KTK240**WM-P3-E 30168 70 Warm white 3000±300k T5
Ex-KTK300**CH-P3-E 43500

300

 70 Cool white 5700±300k T5
Ex-KTK300**NH-P3-E 43500 70 Natural white 5000±300k T5
Ex-KTK300**NH-P3-E 43500 70 Natural white 4000±300k T5
Ex-KTK300**WM-P3-E 31950 70 Warm white 3000±300k T5
Ex-KTK360** CH-P3-E 51120

360

 70 Cool white 5700±300k T5
Ex-KTK360** NH-P3-E 51120 70 Natural white 5000±300k T5
Ex-KTK360** NH-P3-E 51120 70 Natural white 4000±300k T5
Ex-KTK360** WM-P3-E 46008 70 Warm white 3000±300k T5

Remarks:

1. The first * stands for Operating Voltage including default -100-277VAC,D-347-480VAC.

2. The second * stands for Candela Distribution including H3V3,H5V5,H6V6.

What are our advantages?

1. Professional lighting manufacturer for more than 10 years.

2. Gold supplier.

3. Provide high quality products and best service.

Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. ATEX, IECEx, CE, RoHS certification.
