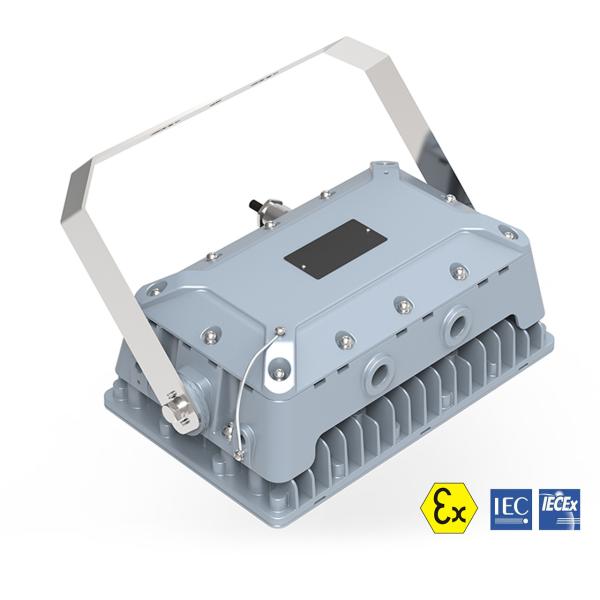

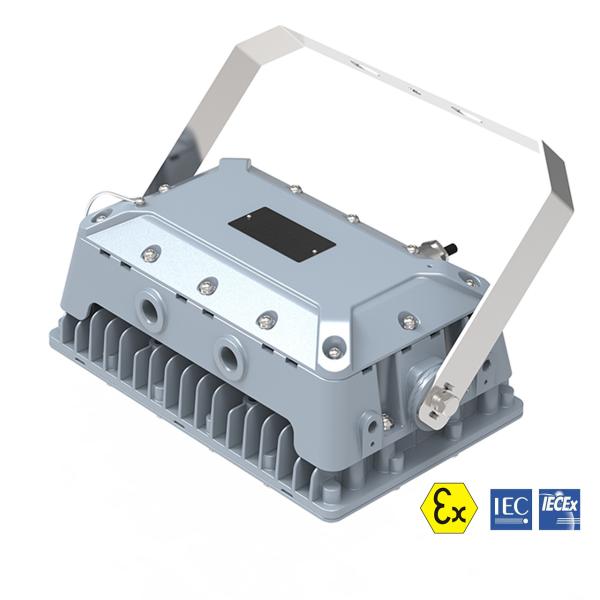

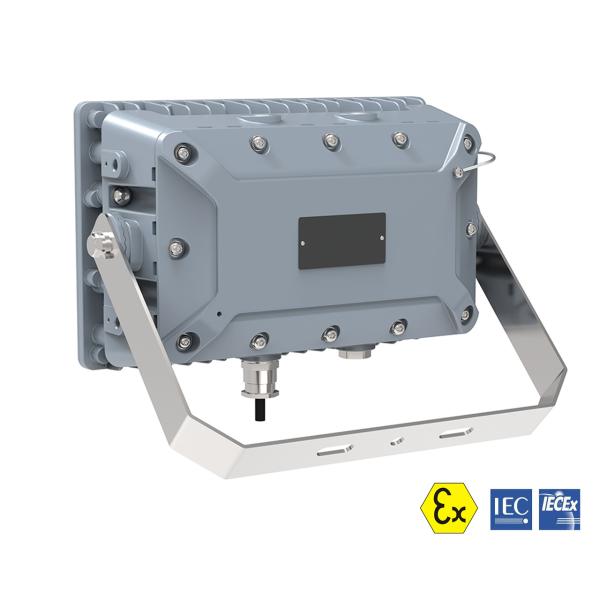

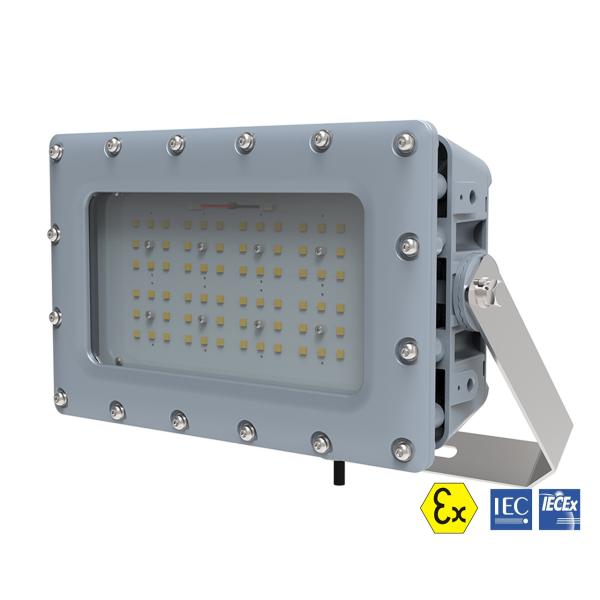

Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
Specifications
Brand Name :
KHJ
Model Number :
Ex-KTK80,Ex-KTK100,Ex-KTK120
Certification :
ATEX,IECEx,RoHS,CE
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs/day
Delivery Time :
5-10 work days
Packaging Details :
382*272*180mm
Product Name :
Tank Series Single Luminaire Zone 1 Explosion Proof Lighting
Operating Voltage :
20-30VAC/DC;100-277VAC;347-480VAC;141-392 VDC;491-679VDC
Luminaire Efficacy :
Max:152lm/W
Lifespan :
>50,000 hours
Frequency :
50/60Hz
LED Driver :
Over voltage protection/short circuit protection
Ambient Temperature :
-40℃-+55℃
Connecting Terminals :
3*1.0-4mm²(L+N+PE)
Description

Tank Series Single Luminaire 80W 100W 120W Zone 1 Explosion Proof Lighting​

This user manual covers the range of ATEX and IECEx Tank Series LED normal/emergency luminaire. These luminaires areconstructed with corrosion resistant epoxy coated aluminum alloy body and high impact resistance tempered glass diffuser.

Tank Series Single Luminaire LED are available from 80W to 120W, providing ideal solutions for a wide range of harsh and hazardous applications.


Features And Benefits:

1. High efficacy LED Source with long lifespan>100,000 hours
2.5-year performance warranty
3.Low THD around 10%,Less interference
4.6KV Surge Protection
5.Robust aluminium housing and strong tempered glass
6.Vibration and shock resistant
7.Low maintenance
8.Dust proof structure design to avoid dust accumulation

Product Important Information​:

Type Of Protection Ex db ,Ex tb
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN 60079-31

EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,

EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,

IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction

Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,

Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation (IEC)EN 60079-14
Certificate
Equipment Coding

Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led LightsII 2 G Ex db IIC T* Gb

Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led LightsII 2 D Ex tb IIIC T* Db IP66
Temperature Class Rated power (W) -40℃ ≤ Ta ≤ +55℃
Gas Dust
80W~480W T5 T95℃
ATEx Coding II 2 G / II 2 D
Ingress Protection IP66 (IEC)EN 60529
Cable entry M20*1.5,M25*1.5,3/4 NPT
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.

The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC

Type Examination and compliance with the Essential Health and Safety Requirements

Electrical & Photometric Features:

Luminaire Efficacy: 152m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,20-30 VAC,347-480 VAC,141-391VDC,491-679 VDC

Power:80W,100W,120W

Frequency:50/60Hz

Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 6KV
LED Driver: Over voltage protection/short circuit protection
Weight:8.3Kg
Size:332*212*142mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2XM20*1.5 (NPT 3/4”,M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:

1.Cement plants
2.Warehouse
3.Factory
4.Power Genera
5.Power Transmission
6.Shipping industry
Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights

Ordering Information:

P/N

Operating

Voltage(V)

Luminous Flux

(lm)

Power

(W)

CRI

Color Temp.

CCT

(K)

Temp. Classification
Ex-KTK80**CH-E

100-277 VAC

(141-392 VDC)

 12107

80

 70 Cool white 5700K±300K T5
Ex-KTK80**NH-E 12107 70 Natural white 5000K±300K T5
Ex-KTK80**NH-E 12107 70 Natural white 4000±300k T5
Ex-KTK80**WM-E 10896 70 Warm white 3000±300k T5
Ex-KTK100**CH-E 14954

100

 70 Cool white 5700±300k T5
Ex-KTK100**NH-E 14954 70 Natural white 5000±300k T5
Ex-KTK100**NH-E 14954 70 Natural white 4000±300k T5
Ex-KTK100**WM-E 13458 70 Warm white 3000±300k T5
Ex-KTK120**CH-E 17310

120

 70 Cool white 5700±300k T5
Ex-KTK120**NH-E 17310 70 Natural white 5000±300k T5
Ex-KTK120**NH-E 17310 70 Natural white 4000±300k T5
Ex-KTK120**WM-E 15579 70 Warm white 3000±300k T5

Remarks:

1.The first * stands for Operating Voltage including default-100 - 277 VAC , D-347-480VAC ,E-20-30VAC.
2.The second * stands for Candela Distribution including H3V3,H5V5,H6V6.

Candela Distribution:

Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights

Installation Method:

Single Luminaire 80W To 120W Atex Flood Lights Flameproof Led Lights
