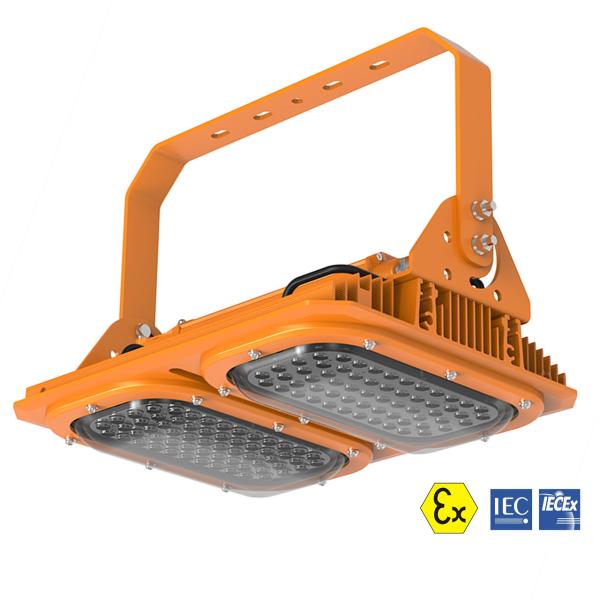

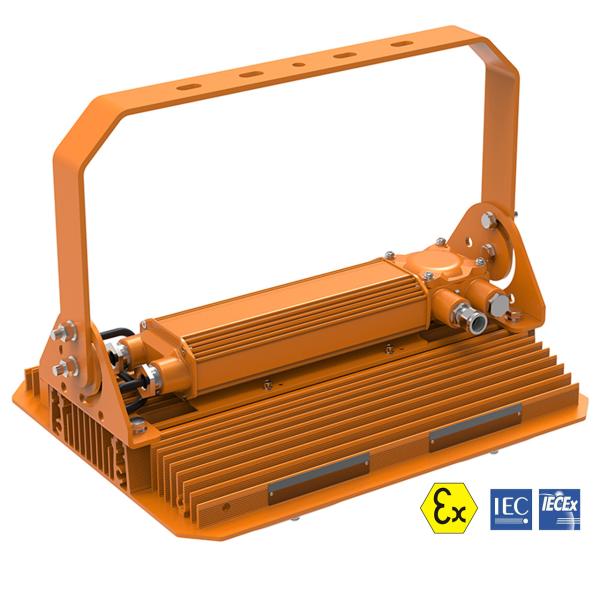

200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
Specifications
Brand Name :
KHJ
Model Number :
Ex-KPLB200,Ex-KPLB240
Certification :
ATEX,IECEx,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs/day
Delivery Time :
3-8work days
Packaging Details :
575*475*265mm
Product name :
Polarbear Series LED Explosion Proof Lights
Operating Voltage :
100-277 VAC/220-240 VAC/100-130 VAC 141-392 VDC/311-339 VDC/141-184 VDC
Power :
200W,240W
Available cable outer diameter :
φ7-φ14(mm)
Cable Entries :
2XNPT 3/4” (M20*1.5, M25*1.5 are optional)
IP Code :
IP66
Enclosure Material :
Copper-free Aluminium
Protective Cover :
Tempered glass,Stand 7J impact
Description

Polarbear Series 200W 240W​ LED Explosion Proof Lights Power Factor > 0.98

This user manual covers the range of ATEX and IECEx PolarBear series LED luminaire. These luminaires are constructed with corrosion resistant epoxy coated copper free aluminum alloy body and high impact resistance tempered glass diffuser.

Polarbear series LED are available from 200W to240W, providing ideal solutions for a wide range of harsh and hazardous applications.

Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 5KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.

Product Important Information:

Type Of Protection Ex nR,Ex tc
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-15,(IEC)EN 60079-31
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction

Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,
Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation (IEC)EN 60079-14
Certificate IECEx CQM 13.0044X LCIE 14 ATEX 1014 X
Equipment Coding

Ex nR IIC T4 or T5 or T6 Gc
Ex tc IIIC T130℃ or T95℃ or T80℃ Dc IP66

Ex nR IIC T* Gc
Ex tc IIIC T* Dc IP66
Temperature Class Rated Power Rated Voltage -40℃ ≤ Ta ≤ +40℃ -40℃ ≤ Ta ≤ +55℃
Gas Dust Gas Dust
200W

100~130VAC
220~240VAC
50/60Hz

 T6 T80℃ T5 T95℃
240W T5 T95℃ T4 T130℃
ATEx Coding 200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear SeriesII 2 G / II 2 D
Ingress Protection IP66 (IEC)EN 60529
Cable entry M20*1.5 or M25*1.5 and 3/4 NPT
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and Safety Requirements

Electrical Supplies:

Size:400*500mm
Voltage Range(AC) 100~130VAC 220~240VAC
Frequency Range(Hz) 50/60Hz
Power Watts(W) 200W 240W 200W 240W
Standard Current Range(A) 2-1.54 2.4-1.85 0.91-0.84 1.09-1

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
200W 240W Zone 2 Led Lighting Atex Flood Lights Polarbear Series
Ordering Information:

P/N

Operating Voltage(V)

Luminous Flux(lm)

Power

(W)

CRI

Color Temp.

CCT(K)

Temp. Classification
Ex-KPLB200*WM-E

100-277 AC

(141-392 DC)

 27300 200 70 Warm white 3000±300 T6/T5
Ex-KPLB200*NH-E 29400 200 70 Natural white 4000±300 T6/T5
Ex-KPLB200*NH-E 29400 200 70 Natural white 5000±300 T6/T5
Ex-KPLB200*CH-E 29400 200 70 Cool white 5700±300 T6/T5
Ex-KPLB240*WM-E 32760 240 70 Warm white 3000±300 T5/T4
Ex-KPLB240*NH-E 35280 240 70 Natural white 5000±300 T5/T4
Ex-KPLB240*NH-E 35280 240 70 Natural white 4000±300 T5/T4
Ex-KPLB240*CH-E 35280 240 70 Cool white 5700±300 T5/T4


Remarks:
1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6 /FW.
2. For Beam angle H1V1,H4V4 and H5V5,the luminous flux will be 15% less;For Beam angle SL/FW,the luminous flux will be 30% less.

Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.

What are our advantages?

1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
