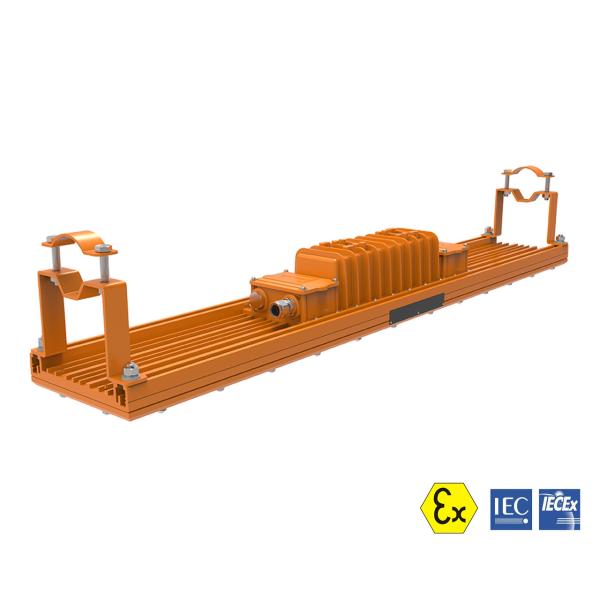

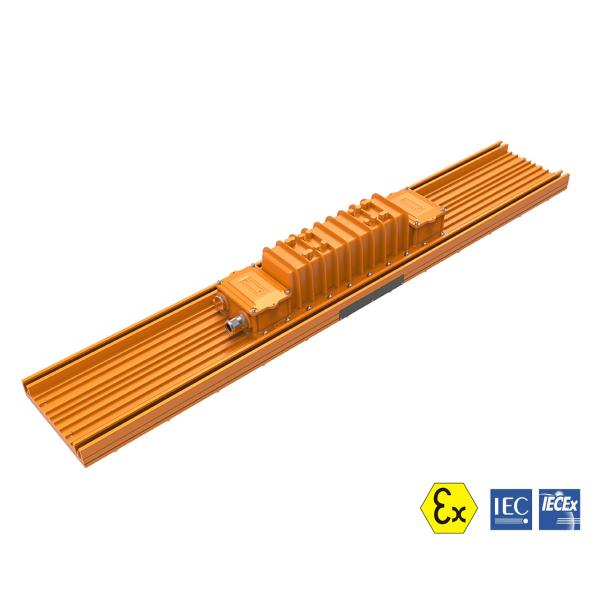

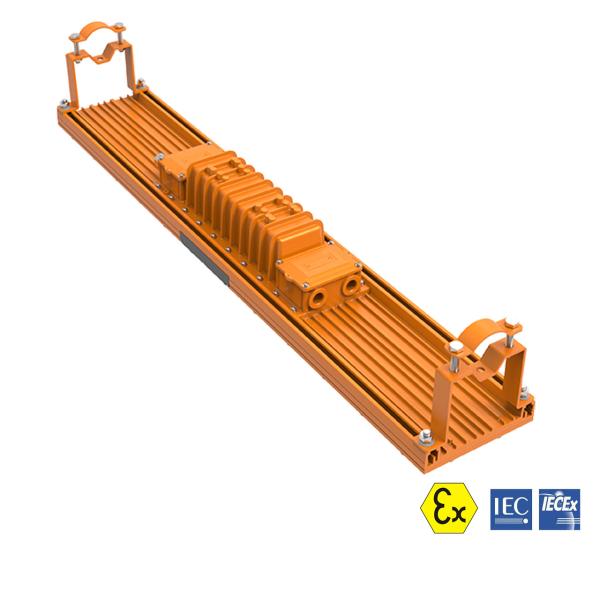

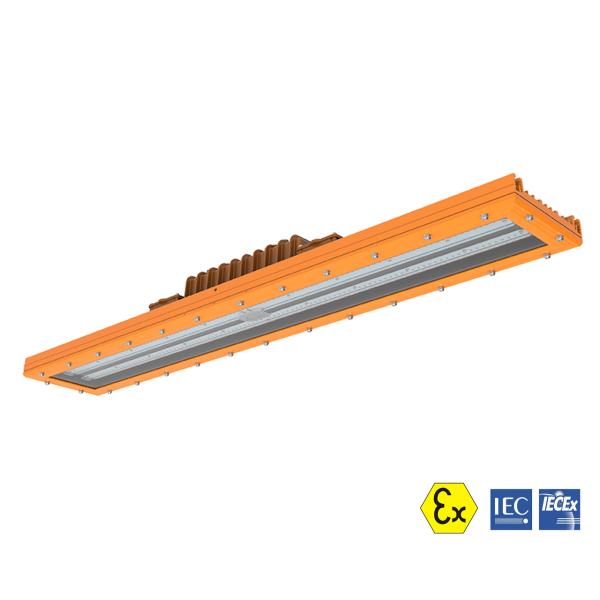

Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance
Specifications
Brand Name :
KHJ
Model Number :
Ex-KSF36,Ex-KSF48,Ex-KSF56,Ex-KSF72
Certification :
ATEX,IECEx,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs per day
Delivery Time :
3-8 work days
Packaging Details :
1234*281*165mm
Product Name :
Swordfish series
Operating Voltage :
100-277 VAC/24-48 VAC;10-30 VDC/24-48 VDC/141-392 VDC
Wattage :
36W 48W 56W 72W
Luminaire Efficacy :
136.5lm/W
Area Classification :
Group II Zone 1 & 21 and 2 & 22
Exposed Fastener :
Stainless steel
Protective Cover :
Tempered glass,Stand 7J impact
Lifespan :
>50,000 hours
Description

Low maintenance costs Explosion Proof LED Strip Lighting Ex Swordfish series

LED Explosion proof light 36W 48W 56W 72W LED Strip Lighting

Highlight: Explosion Proof LED Strip Lighting,Ex Swordfish series

Features And Benefits:

1. Ex-swordfish series explosion proof led linear light fitting in 4ft(length:1130mm).

2. Designed to replace traditional linear fluorescent lighting fixtures.

3. The independent LED and the driver chamber with external airflow heat sink provide excellent heat dissipation to ensure long life.
4. The slim, streamlined design of linear lights in hazardous areas allows access to limited space at a low installation height.
5. IP66 waterproof and dustproof, with a life of more than50000hrs.

6. Emergency version is available.

Product Important Information:

Type Of Protection Ex d eb ,Ex tb
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN 60079-28, (IEC)EN 60079-31

EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,

EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,

IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation (IEC)EN 60079-14
Certificate IECEx_TUR_16.0028X/TÜV 15 ATEX 7673 X
Equipment Coding

□Ex d eb op is IIB T6 Gb ,Ex tb op is IIIC T80℃ Db

□Ex d eb op is IIC T6 Gb , Ex tb op is IIIC T80℃ Db
Temperature Class

Rated

power (W)

 -20℃ ≤ Ta ≤ +55℃
Gas Dust
36W~72W T6 T80℃
ATEx Coding Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low MaintenanceII 2 G / II 2 D
Ingress Protection IP66 (IEC)EN 60529
Cable entry M20*1.5,M25*1.5,3/4 NPT
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.

The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC

Type Examination and compliance with the Essential Health and Safety Requirements

Applications:
Application Power Plants / Heavy Industrials Storage Facility / Paper mills Wastewater Treatment Plants Loading Docks / Platforms / Shipyards Chemical Processing Facility Petrochemical Processing Facility

Zone 1 Explosion Proof LED Strip Lighting 56W 72W Low Maintenance

Ordering information:

P/N

Operating Voltage(V)

Luminous Flux(lm)

Power

(W)

CRI

Color Temp.

CCT(K)

Temp. Classification
Ex-KSF361200H7V7WM-E

100-277 AC

(141-392 DC)

 4536 36 82 Warm white 3000±300

T6
Ex-KSF361200H7V7NH-E 4914 36 70 Natural white 4000±300
Ex-KSF361200H7V7NH-E 4914 36 70 Natural white 5000±300
Ex-KSF361200H7V7CH-E 4914 36 70 Cool white 5700±300
Ex-KSF481200H7V7WM-E 6048 48 82 Warm white 3000±300
Ex-KSF481200H7V7NH-E 6552 48 70 Natural white 4000±300
Ex-KSF481200H7V7NH-E 6552 48 70 Natural white 5000±300
Ex-KSF481200H7V7CH-E 6552 48 70 Cool white 5700±300
Ex-KSF561200H7V7WM-E 7056 56 82 Warm white 3000±300
Ex-KSF561200H7V7NH-E 7644 56 70 Natural white 4000±300
Ex-KSF561200H7V7NH-E 7644 56 70 Natural white 5000±300
Ex-KSF561200H7V7CH-E 7644 56 70 Cool white 5700±300
Ex-KSF721200H7V7WM-E 9072 72 82 Warm white 3000±300
Ex-KSF721200H7V7NH-E 9828 72 70 Natural white 4000±300
Ex-KSF721200H7V7NH-E 9828 72 70 Natural white 5000±300
Ex-KSF721200H7V7CH-E 9828 72 70 Cool white 5700±300

What are our advantages?

1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
3. Provide high quality products and best service.
4. Good production capacity and fast delivery.
