Specifications
Brand Name :
KHJ
Model Number :
Ex-KTK80,Ex-KTK100,Ex-KTK120
Certification :
ATEX,IECEx,RoHS,CE
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs/day
Delivery Time :
5-10 work days
Packaging Details :
382*272*180mm
Product Name :
Tank Series explosion proof light fixture
Operating Voltage :
100-277 VAC,20-30 VAC,347-480 VAC,141-391VDC,491-679 VDC
Power :
80W,100W,120W
Available cable outer diameter :
φ7-φ20(mm)
Cable Entries :
2XM20*1.5 (NPT 3/4”, M25*1.5 are optional)
IP Code :
IP66
Enclosure Material :
Aluminium
Protective Cover :
Tempered glass,Stand 7J impact
Description

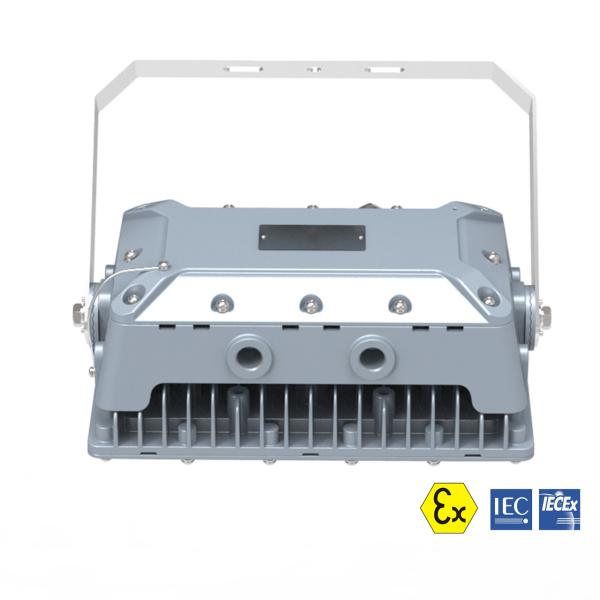

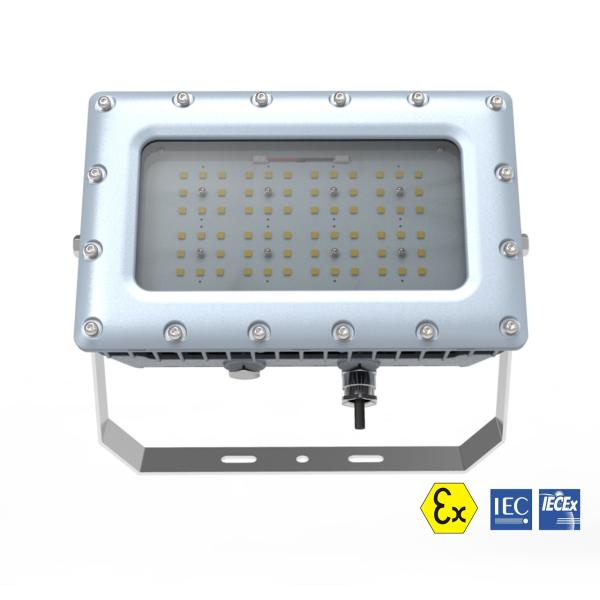

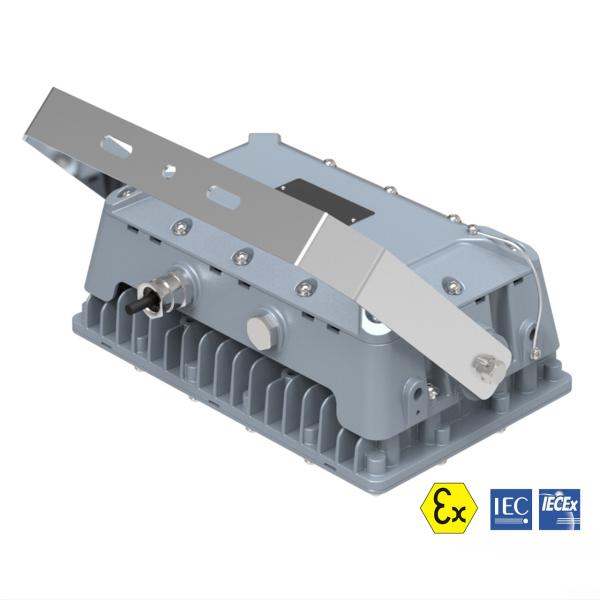

Tank Series 80W 100W 120W LED Explosion Proof Lights Power Factor ＞ 0.98

This user manual covers the range of ATEX and IECEx Tank Series LED normal/emergency luminaire. These luminaires are constructed with corrosion resistant epoxy coated aluminum alloy body and high impact resistance tempered glass diffuser.

Tank Series Single Luminaires LED are available from80W to 120W, providing ideal solutions for a wide range of harsh and hazardous applications.


Features And Benefits:

1. High efficacy LED Source with long lifespan>100,000 hours.
2. 5-year performance warrant.
3. Low THD around 10%,Less interference.
4. 6KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
8. Dust proof structure design to avoid dust accumulation.

Product Important Information​:

Type Of Protection Ex db ,Ex tb
Protection Standards

(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN 60079-31

EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,

EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,

IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction

Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,

Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation (IEC)EN 60079-14
Certificate
Equipment Coding

II 2 G Ex db IIC T* Gb

II 2 D Ex tb IIIC T* Db IP66
Temperature Class Rated power (W) -40℃ ≤ Ta ≤ +55℃
Gas Dust
80W~120W T5 T95℃
ATEx Coding 80W 100W 120W LED Explosion Proof Flood Light Power Factor ＞ 0.98 Tank SeriesII 2 G / II 2 D
Ingress Protection IP66 (IEC)EN 60529
Cable entry M20*1.5,M25*1.5,3/4 NPT
CE Mark

The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.

The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC

Type Examination and compliance with the Essential Health and Safety Requirements

Electrical Supplies:

Size:332*212*145mm
Voltage Range(AC) 100-277VAC (standard)
Frequency Range(Hz) 50/60Hz
Power Watts(W) 80W 100W 120W
Standard Current Range(A) 0.28~0.8 0.36~1.0 0.43~1.2

Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
80W 100W 120W LED Explosion Proof Flood Light Power Factor ＞ 0.98 Tank Series

Ordering Information:

P/N

Operating

Voltage(V)

Luminous Flux(lm)

Power(W)

CRI

Color Temp.

CCT(K)

Temp. Classification
Ex-KTK80**CH-E

100-277 VAC

(141-392 VDC)

 12107

80

 70 Cool white 5700K±300K T5
Ex-KTK80**NH-E 12107 70 Natural white 5000K±300K T5
Ex-KTK80**NH-E 12107 70 Natural white 4000±300k T5
Ex-KTK80**WM-E 10896 70 Warm white 3000±300k T5
Ex-KTK100**CH-E 14954

100

 70 Cool white 5700±300k T5
Ex-KTK100**NH-E 14954 70 Natural white 5000±300k T5
Ex-KTK100**NH-E 14954 70 Natural white 4000±300k T5
Ex-KTK100**WM-E 13458 70 Warm white 3000±300k T5
Ex-KTK120**CH-E 17310

120

 70 Cool white 5700±300k T5
Ex-KTK120**NH-E 17310 70 Natural white 5000±300k T5
Ex-KTK120**NH-E 17310 70 Natural white 4000±300k T5
Ex-KTK120**WM-E 15579 70 Warm white 3000±300k T5

Remarks:

1. The first * stands for Operating Voltage including default-100 - 277 VAC , D-347-480VAC ,E-20-30VAC.
2. The second * stands for Candela Distribution including H3V3,H5V5,H6V6.
