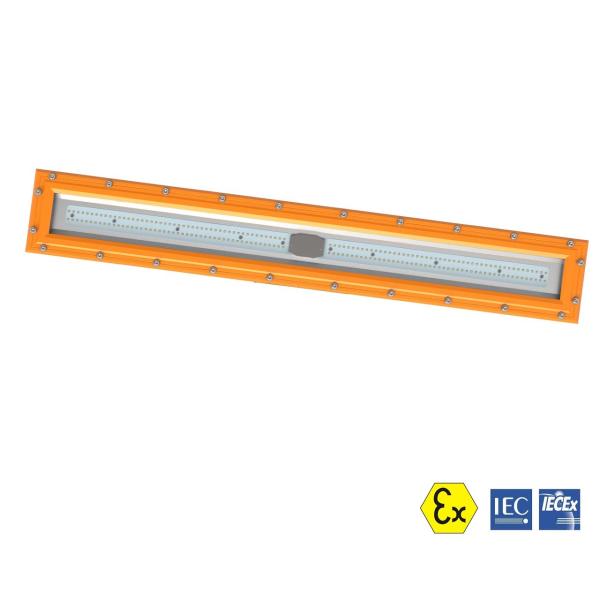

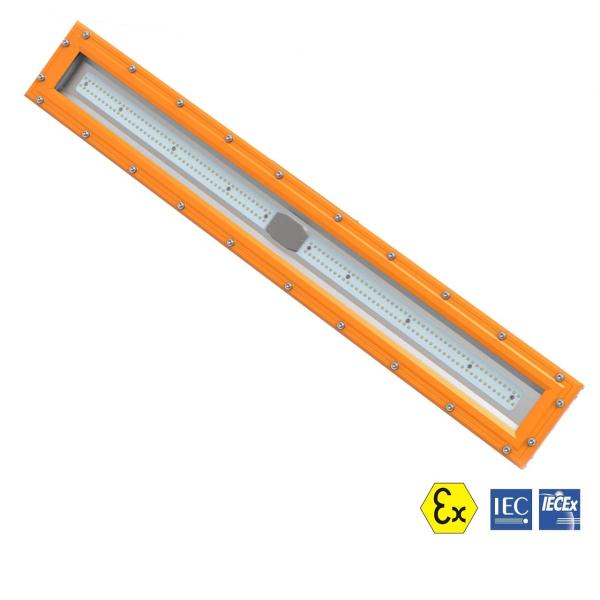

Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan
Specifications
Brand Name :
KHJ
Model Number :
Ex-KSF36,Ex-KSF48,Ex-KSF56,Ex-KSF72
Certification :
ATEX,IECEx,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs/day
Delivery Time :
3-8work days
Packaging Details :
960*200*157mm
Operating Voltage :
100-277 VAC,24-48 VAC,10-30 VDC,24-48 VDC,141-392 VDC
Power :
36W,48W,56W,72W
Power Factor :
＞0.98
THD :
＜10%
Insulation Class: :
I
Surge Protection :
5KV
Weight :
9.2Kg
Size :
900*136*124mm
Description

Swordfish Series 36W 48W 56W 72W LED Explosion Proof Strip Lighting Power Factor > 0.98

Features And Benefits:

1. High efficacy LED Source with long lifespan>50,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 5KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.

Specifications:

Standard &Certificate:

Ex Mark:Gas: Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long LifespanII 2 G Ex d eb op is IIB T6 Gb

Dust: Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long LifespanII 2 D Ex tb op is IIIC T80°C Db

Certificate:

ATEX Certification NO.:TÜV 15 ATEX 7673 X IECEx Certification NO.: IECEx TUR 16.0028X

CE

 RoHS

Executive Standard:

(IEC)EN 60079-0 (IEC)EN 60079-1 (IEC)EN 60079-7
(IEC)EN 60079-28

(IEC)EN 60079-31E

 EN 55015
EN 61547 EN 61000-3-2 EN 61000-3-3
EN 60598-1 EN 60598-2-5 EN 62031
EN 62493 IEC 62321-4 IEC 62321-5
IEC 62321-6 IEC 62321-7-1 IEC 62321-7-2
IEC 62321-8

Luminaire Efficacy: 136.5m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/24-48 VAC/10-30 VDC/24-48 VDC/141-392 VDC

Power:36W,48W,56W,72W

Frequency:50/60Hz

Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:9.2Kg
Size:900*136*124mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2XNPT 3/4” (M20*1.5 ,M25*1.5are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant

Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan

Ordering Information:

P/N

Operating Voltage(V)

Luminous Flux(lm)

Power

(W)

CRI

Color Temp.

CCT(K)

Temp. Classification
Ex-KSF36*1200H7V7WM-U-E

100-277 AC

(141-392 DC)

 4536 36 82 Warm white 3000±300

T6
Ex-KSF36*1200H7V7NH-U-E 4914 36 70 Natural white 4000±300
Ex-KSF36*1200H7V7NH-U-E 4914 36 70 Natural white 5000±300
Ex-KSF36*1200H7V7CH-U-E 4914 36 70 Cool white 5700±300
Ex-KSF48*1200H7V7WM-U-E 6048 48 82 Warm white 3000±300
Ex-KSF48*1200H7V7NH-U-E 6552 48 70 Natural white 4000±300
Ex-KSF48*1200H7V7NH-U-E 6552 48 70 Natural white 5000±300
Ex-KSF48*1200H7V7CH-U-E 6552 48 70 Cool white 5700±300
Ex-KSF56*1200H7V7WM-U-E 7056 56 82 Warm white 3000±300
Ex-KSF56*1200H7V7NH-U-E 7644 56 70 Natural white 4000±300
Ex-KSF56*1200H7V7NH-U-E 7644 56 70 Natural white 5000±300
Ex-KSF56*1200H7V7CH-U-E 7644 56 70 Cool white 5700±300
Ex-KSF72*1200H7V7WM-U-E 9072 72 82 Warm white 3000±300
Ex-KSF72*1200H7V7NH-U-E 9828 72 70 Natural white 4000±300
Ex-KSF72*1200H7V7NH-U-E 9828 72 70 Natural white 5000±300
Ex-KSF72*1200H7V7CH-U-E 9828 72 70 Cool white 5700±300

Remarks:

1. *Stands for Operating Voltage, including Default -AC-100~277V,A-AC/DC 24~48V,B-DC 10~30V.


Candela Distribution:
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan

Installation Method:
Power Plant 36W To 72W Explosion Proof LED Strip Lighting Long Lifespan

Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. ATEX, IECEx, CE, RoHS certification.

What are our advantages?

1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
