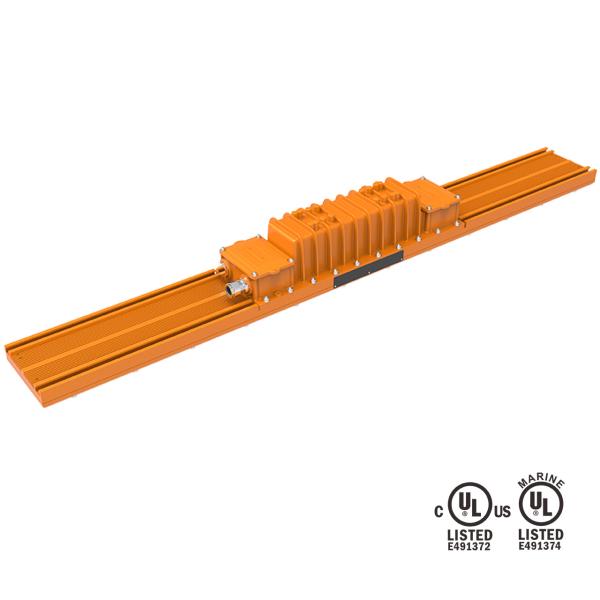

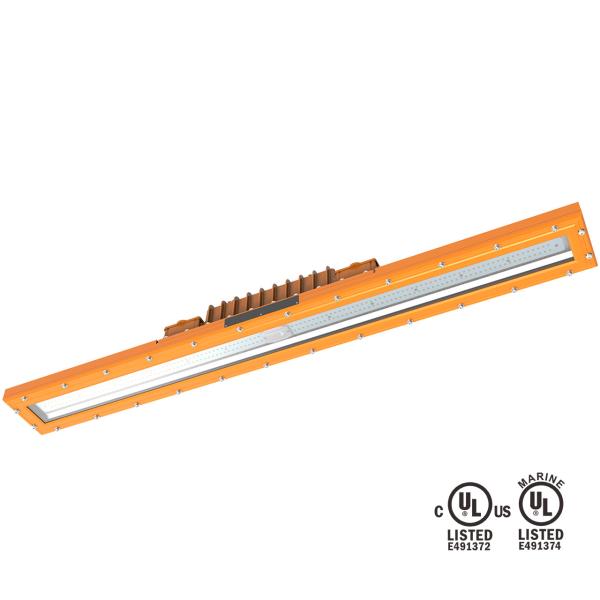

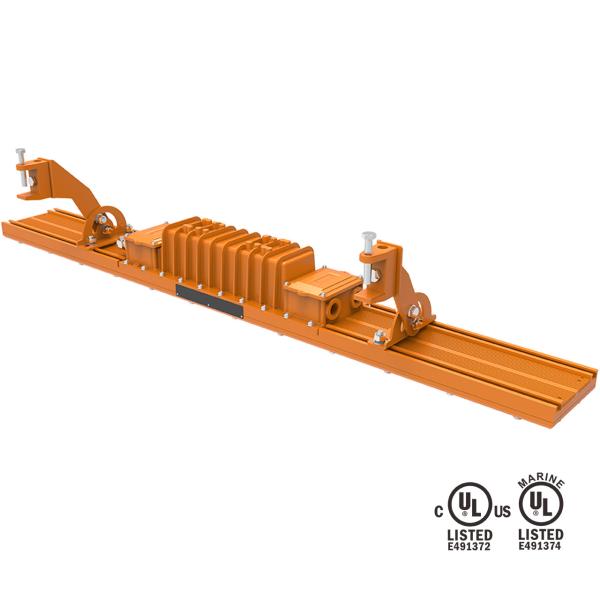

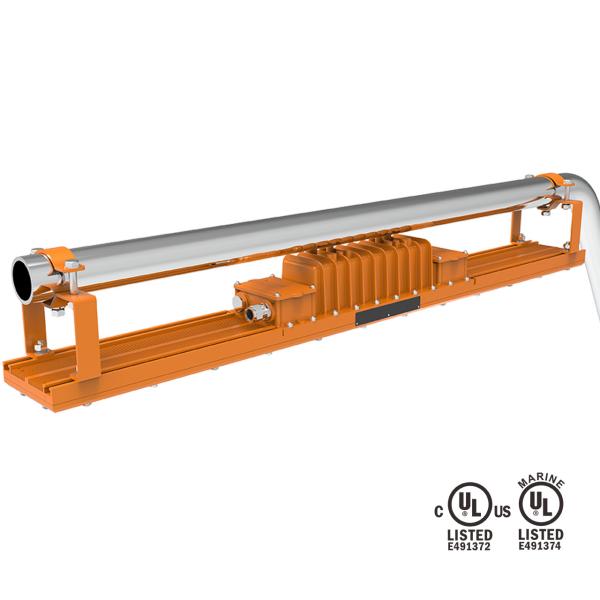

IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance
Specifications
Brand Name :
KHJ
Model Number :
Ex-KSF36,Ex-KSF48,Ex-KSF56, Ex-KSF72, Ex-KSF100
Certification :
UL,CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs per day
Delivery Time :
3-8 work days
Packaging Details :
486*410*180mm
Product Name :
Swordfish Series
Working Voltage :
100-277 VAC，141-392 VDC
Rated Power :
36W 48W 56W 72W 100W
Luminaire Efficacy :
136.5lm/W
Division :
Class Ⅰ Division 2,Group A, B ,C ,D; Class Ⅱ Division 2,Group F, G
IP Code :
IP66
Enclosure Material :
Copper-free Aluminium
Enclosure Colour :
Orange,RAL2011(optional grey RAL7040)
Description

Explosion Proof LED Strip Lighting UL listed,4ft, corrosion resistance

Ex-Swordfish Series LED Strip Lighting.UL listed,4ft.

Highlight: Explosion Proof LED Strip Lighting. UL listed, class 1 division 2

Features And Benefits:

1. Copper free aluminum alloy enclosure with epoxy powder coating, high corrosion resistance.

2. High efficacy Led source, whole luminaire efficacy up to 136.5lm/w.

3. Two feet and four feet length typically designed to replace fluorescent tubes.

4. Environmentally friendly, no mercury.

5. Low maintenance and long life span.

Product Important Information:

Type Of Protection USL, CNL
Protection Standards

UL 844 - Luminaires for Use in Hazardous.

UL 1598 - Luminaires.

UL 8750 - Light Emitting Diode (LED) Equipment for Use in Lighting Products.

CSA C22.2 No. 137-M1981 - Electric Luminaires for Use in Hazardous Locations.

CSA C22.2 No. 250.0-08 - Luminaires.

CSA C22.2 No. 250.13 - Light Emitting Diode (LED) Equipment for Lighting Applications.
Installation (IEC)EN 60079-14
Area Classfiction Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G.
Certificate 20171221-E491372
Report Reference E491372-20170914
Models KSF1001200, KSF721200, KSF561200, KSF481200, KSF361200
Ingress Protection IP66 for (IEC)EN 60529
Cable entry M20*1.5 or M25*1.5 and 3/4 NPT

Applications:

Can be widely used for hazardous area class 1 division 2, where flammable vapors, gases,ignitable dusts, fibers or flyings are present; indoors or outdoors

1. Oil and gas onshore and offshore platform

2. Oils rigs

3. Petrochemical and chemical plants

4. Pharmaceutical plants

5. Other potentially explosive industrial environments

IP66 4ft linear Explosion Proof LED Strip Lighting Corrosion Resistance

Ordering information:

P/N Operating Voltage(V) Luminous Flux(lm)

Power

(W)

 CRI Color Temp. CCT(K)

Temp.

Classification
Ex-KSF361200H7V7WM-U-UL-E

100-277 AC(141-392 DC)

 4536 36 82 Warm white 3000±300

T6
Ex-KSF361200H7V7NH-U-UL-E 4914 36 70 Natural white 4000±300
Ex-KSF361200H7V7NH-U-UL-E 4914 36 70 Natural white 5000±300
Ex-KSF361200H7V7CH-U-UL-E 4914 36 70 Cool white 5700±300
Ex-KSF481200H7V7WM-U-UL-E 6048 48 82 Warm white 3000±300
Ex-KSF481200H7V7NH-U-UL-E 6552 48 70 Natural white 4000±300
Ex-KSF481200H7V7NH-U-UL-E 6552 48 70 Natural white 5000±300
Ex-KSF481200H7V7CH-U-UL-E 6552 48 70 Cool white 5700±300
Ex-KSF561200H7V7WM-U-UL-E 7056 56 82 Warm white 3000±300
Ex-KSF561200H7V7NH-U-UL-E 7644 56 70 Natural white 4000±300
Ex-KSF561200H7V7NH-U-UL-E 7644 56 70 Natural white 5000±300
Ex-KSF561200H7V7CH-U-UL-E 7644 56 70 Cool white 5700±300
Ex-KSF721200H7V7WM-U-UL-E 9072 72 82 Warm white 3000±300
Ex-KSF721200H7V7NH-U-UL-E 9828 72 70 Natural white 4000±300
Ex-KSF721200H7V7NH-U-UL-E 9828 72 70 Natural white 5000±300
Ex-KSF721200H7V7CH-U-UL-E 9828 72 70 Cool white 5700±300
Ex-KSF1001200H7V7WM-U-UL-E 12600 100 82 Warm white 3000±300
Ex-KSF1001200H7V7NH-U-UL-E 13650 100 70 Natural white 4000±300
Ex-KSF1001200H7V7NH-U-UL-E 13650 100 70 Natural white 5000±300
Ex-KSF1001200H7V7CH-U-UL-E 13650 100 70 Cool white 5700±300

Why choose us?

1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
3. Provide high quality products and best service.
4. Good production capacity and fast delivery.

Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. ATEX, IECEx, CE, RoHS certification.
