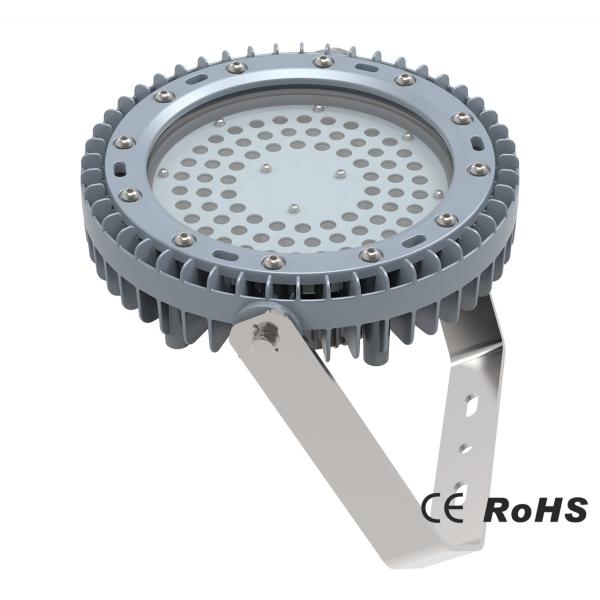

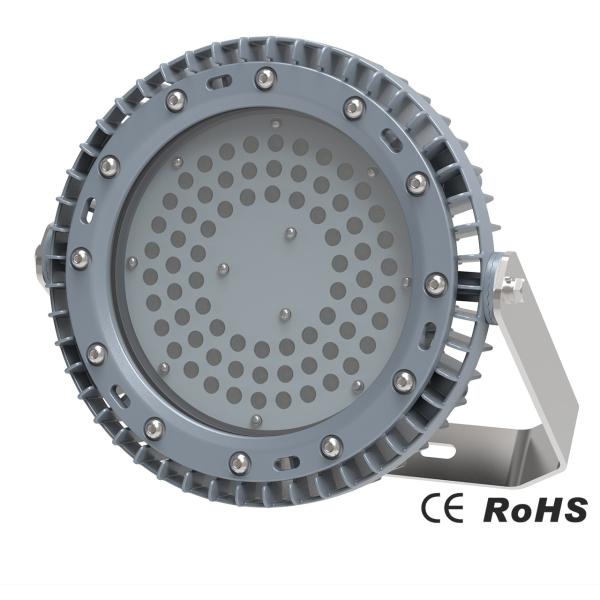

KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
Specifications
Brand Name :
KHJ
Model Number :
KSL100,KSL120,KSL150
Certification :
CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs/day
Delivery Time :
5-10work days
Packaging Details :
φ 330*157mm
Luminaire Efficacy :
140m/W
Lifespan :
>50,000 hours
Operating Voltage :
100V-277V/347-480V/141V-392V/491V-679V
Power :
100W,120W,150W
Frequency :
50/60Hz
Power Factor :
＞0.98
THD :
＜10%
Insulation Class: :
I
Description

Sealion Series 100W 120W 150W Industrial LED Flood Light Power Factor > 0.98

Features And Benefits:

1. High efficacy LED Source with long lifespan>50,000 hours
2. 5-year performance warranty
3. Low THD around 10%,Less interference
4. 5KV Surge Protection
5. Robust aluminium housing and strong tempered glass
6. Vibration and shock resistant
7. Low maintenance

8. Over voltage protection/short circuit protection

Specifications:

Certificate:CE,RoHS
Executive Standard:

EN 60598-1:2015+A1:2018 EN 60598-2-5:2015 EN 62031:2008+A1:2013+A2:2015
EN 62471:2008 EN 62493:2015 IEC 62321-4:2017
IEC 62321-5:2013 IEC 62321-6:2015 IEC 62321-7-1:2015
IEC 62321-7-2:2017 IEC 62321-7-2:2017 IEC 62321-8:2017

Luminaire Efficacy: 140m/W
Lifespan:>50,000 hours
Operating Voltage: 100V-277V/347-480V/141V-392V/491V-679V

Power:100W,120W,150W

Frequency:50/60Hz

Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:8.6Kg
Size:φ 330*157mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 1XM16,equipped with 1 meter cable
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W


Ordering Information:

P/N

Rated voltage(V)

Lumino us Flux(lm)

Power

CRI

Color temp.

CCT(K)
KSL100*WM-E

100~277 (141~392)

 13288 100 70 Warm white 3000±300
KSL100*NH-E 14764 100 70 Natural white 4000±300
KSL100*NH-E 14764 100 70 Natural white 5000±300
KSL100*CH-E 14764 100 70 Cool white 5700±300
KSL120*WM-E 15484 120 70 Warm white 3000±300
KSL120*NH-E 17204 120 70 Natural white 4000±300
KSL120*NH-E 17204 120 70 Natural white 5000±300
KSL120*CH-E 17204 120 70 Cool white 5700±300
KSL150*WM-E 18559 150 70 Warm white 3000±300
KSL150*NH-E 20621 150 70 Natural white 4000±300
KSL150*NH-E 20621 150 70 Natural white 5000±300
KSL150*CH-E 20621 150 70 Cool white 5700±300

Remarks:

1.*Stands for beam angle , including H4V4 / H5V5 / H6V6.

2.For beam angle H4V4 and H5V5,the luminous flux will be 15% less.


Candela Distribution:
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W

Installation Method:
KHJ Industrial Outdoor Led Lighting Flame Proof Led Flood Light 120W 150W
