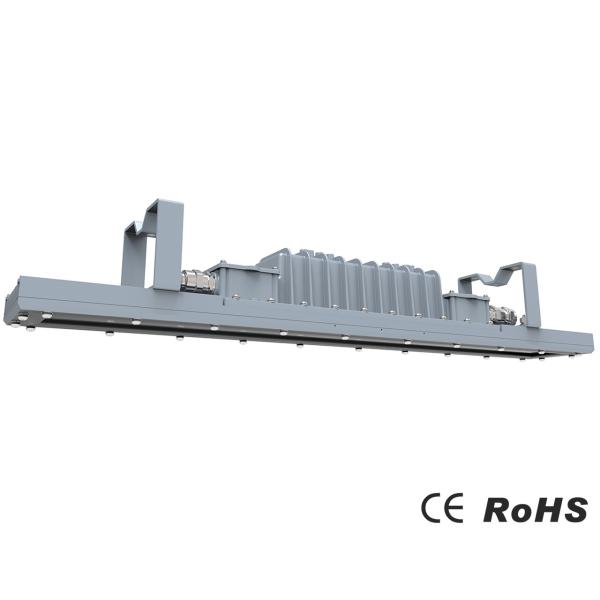

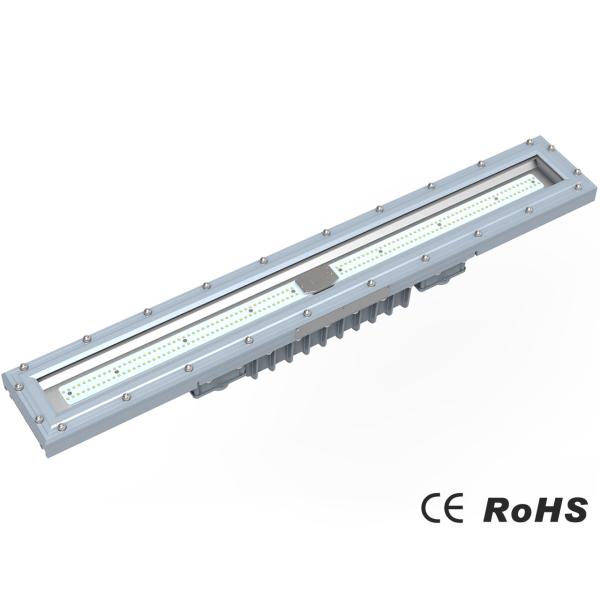

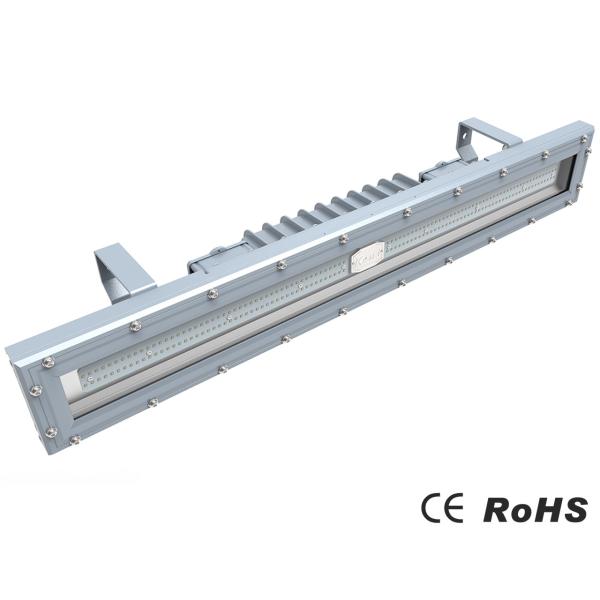

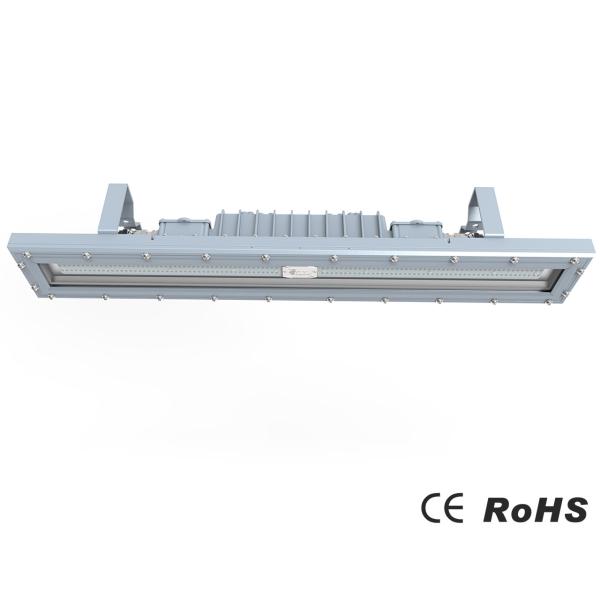

48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
Specifications
Brand Name :
KHJ
Model Number :
KSF36,KSF48,KSF56,KSF72
Certification :
CE,RoHS
Place of Origin :
Guangdong, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
400pcs/day
Delivery Time :
3-8work days
Packaging Details :
960*200*157mm
Operating Voltage :
100-277 VAC,24-48 VAC,10-30 VDC,24-48 VDC,141-392 VDC
Power :
36W,48W,56W,72W
Power Factor :
＞0.98
THD :
＜10%
Insulation Class: :
I
Surge Protection :
5KV
Weight :
Weight
Size :
900*136*124mm
Description

Swordfish Series 36W 48W 56W 72W Industrial LED Flood Light Power Factor > 0.98

Features And Benefits:

1.High efficacy LED Source with long lifespan>50,000 hours
2.5-year performance warranty
3.Low THD around 10%,Less interference
4.5KV Surge Protection
5.Robust aluminium housing and strong tempered glass
6.Vibration and shock resistant
7. Low maintenance

Specifications:

Certificate:CE,RoHS
Executive Standard:

EN 55015:2013+A1:2015 EN 61547:2009 EN 61000-3-2:2014
EN 61000-3-3:2013 IEC 62321-4:2013 IEC 62321-5:2013
IEC 62321-6:2015 IEC 62321-7-1:2015 EN 60598-1:2015
EN 60598-2-5:2015 IEC 62321-7-2:2017 IEC 62321-8:2017

Luminaire Efficacy: 136.5m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/24-48 VAC/10-30 VDC/24-48 VDC/141-392 VDC

Power:36W,48W,56W,72W

Frequency:50/60Hz

Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:9.2Kg
Size:900*136*124mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2XM25*1.5 (NPT 3/4”,M20*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:

1,Cement plants
2,Warehouse
3,Factory
4,Power Genera
5,Power Transmission
6,Shipping industry
48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor


Ordering Information:

P/N

Operating Voltage(V)

Luminous Flux(lm)

Power(W)

CRI

Color Temp.

CCT(K)
KSF36*1200H7V7WM-U-E

100-277 AC

(141-392 DC)

 4536 36 82 Warm white 3000±300
KSF36*1200H7V7NH-U-E 4914 36 70 Natural white 4000±300
KSF36*1200H7V7NH-U-E 4914 36 70 Natural white 5000±300
KSF36*1200H7V7CH-U-E 4914 36 70 Cool white 5700±300
KSF48*1200H7V7WM-U-E 6048 48 82 Warm white 3000±300
KSF48*1200H7V7NH-U-E 6552 48 70 Natural white 4000±300
KSF48*1200H7V7NH-U-E 6552 48 70 Natural white 5000±300
KSF48*1200H7V7CH-U-E 6552 48 70 Cool white 5700±300
KSF56*1200H7V7WM-U-E 7056 56 82 Warm white 3000±300
KSF56*1200H7V7NH-U-E 7644 56 70 Natural white 4000±300
KSF56*1200H7V7NH-U-E 7644 56 70 Natural white 5000±300
KSF56*1200H7V7CH-U-E 7644 56 70 Cool white 5700±300
KSF72*1200H7V7WM-U-E 9072 72 82 Warm white 3000±300
KSF72*1200H7V7NH-U-E 9828 72 70 Natural white 4000±300
KSF72*1200H7V7NH-U-E 9828 72 70 Natural white 5000±300
KSF72*1200H7V7CH-U-E 9828 72 70 Cool white 5700±300

Remarks:

1.*Stands for Operating Voltage, including Default -AC-100~277V,A-AC/DC 24~48V,B-DC 10~30V.


Candela Distribution:

48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor

Installation Method:

48W 56W 72W High Lumen Led Flood Light Industrial Flood Lights Outdoor
