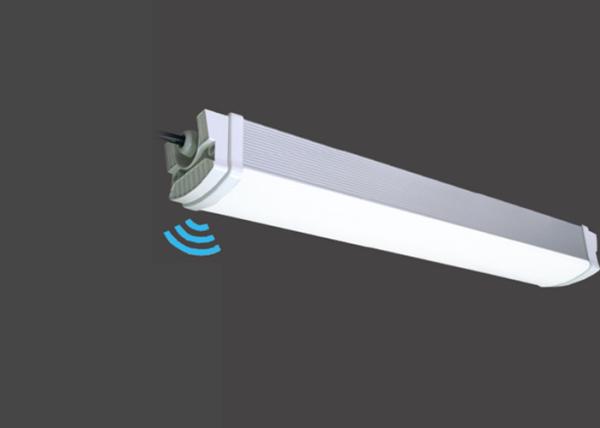

Enduro Series--Smart Sensor LED T8 lamp Special lamp for cold storage food factory
Waterproof, dustproof and anticorrosion. Special anti-oxidation and anti-corrosion materials and silica gel sealing rings are used to meet the protection requirements of lamps and lanterns. This lamp carries on the anticorrosion, waterproof and anti oxidation treatment to the circuit control board. In view of the characteristics of the weak sealing ability of the electric box seal, the special working circuit of the intelligent temperature control three defense lamp is used to reduce the working temperature of the power frequency converter, and the double insulation treatment of the strong electric isolation protection road and the connector ensures the safety and reliability of the line.
1. AC100-277V wide volTPge input, internal isolated led driver used
2. Aluminum PCB clings to the heat sink closely, high thermal conductivity, good heat dissipation
3. The cover and outer housing are sealed with high elasticity rubber band and water-proof silicone, IP66

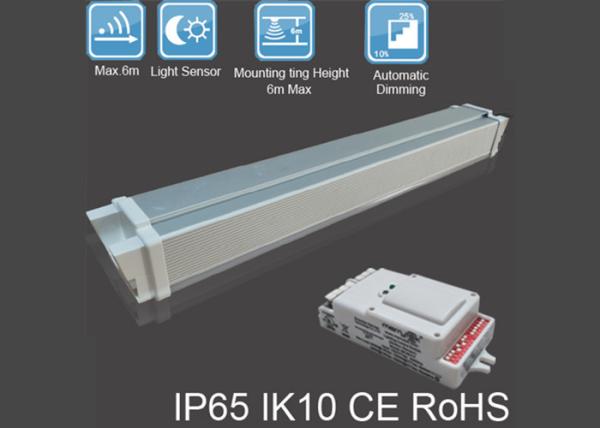

4.0-10v dimmable drivers,available to work with photosensor for adjuating the brightness automatically
5. 5years warranty for overall products
Part No. | Size(mm) | LED Q'ty | Voltage | Power | PF | Color temp | Lumen | CRI |
HNX-TP652F-20W-01 | 600*91*75 | SMD 2835 120PCS | AC85-265V | 20W | >0.95 | 3000-6500K | >100LM | >80Ra |
HNX-TP652F-30W-01 | 600*91*75 | SMD 2835 180PCS | AC85-265V | 30W | >0.95 | 3000-6500K | >100LM | >80Ra |
HNX-TP654F-40W-01 | 1200*91*75 | SMD 2835 240PCS | AC85-265V | 40W | >0.95 | 3000-6500K | >100LM | >80Ra |
HNX-TP654F-50W-01 | 1200*91*75 | SMD 2835 312PCS | AC85-265V | 50W | >0.95 | 3000-6500K | >100LM | >80Ra |
HNX-TP654F-60W-01 | 1200*91*75 | SMD 2835 360PCS | AC85-265V | 60W | >0.95 | 3000-6500K | >100LM | >80Ra |
HNX-TP655F-50W-01 | 1500*91*75 | SMD 2835 312PCS | AC85-265V | 50W | >0.95 | 3000-6500K | >100LM | >80Ra |
HNX-TP655F-60W-01 | 1500*91*75 | SMD 2835 360PCS | AC85-265V | 60W | >0.95 | 3000-6500K | >100LM | >80Ra |
