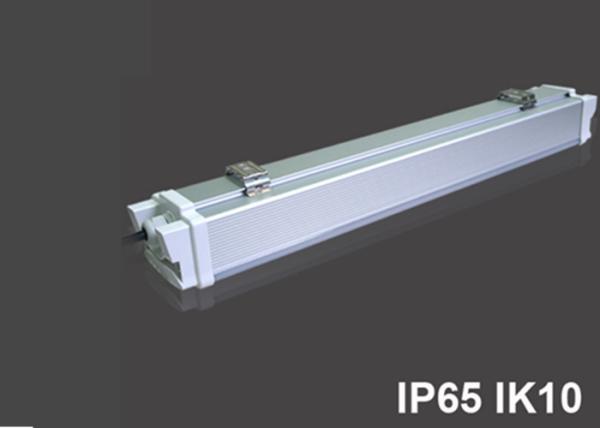

Smart Auto Dimmable LED T8 lamp Special lamp for cold storage food factory
It has good electromagnetic compatibility and will not cause electromagnetic interference to the surrounding environment.
Low overall temperature rise, good heat dissipation, can reduce the probability of failure.
In line with the humanized appearance design and environmental protection color collocation, and the natural landscape is fully harmonious, integrated.
The lamp is designed with dust-proof, damp-proof, water-proof, Corrosion-proof, anti-impact IK09 etc
1. CE, RoHS, UL,SAA , TUV approved drivers.
2. AC100-277V wide volTPge input, internal isolated led driver used Output volTPge DC30-42V, safe, sTPble and reliable
3. Luminous efficiency above 85%
4. 6063 aluminum alloy housing used, high thermosTPbility, high strength anti-impact and good toughness
5. Aluminum PCB clings to the heat sink closely, high thermal conductivity, good heat dissipation
6. The cover and outer housing are sealed with high elasticity rubber band and water-proof silicone, IP66

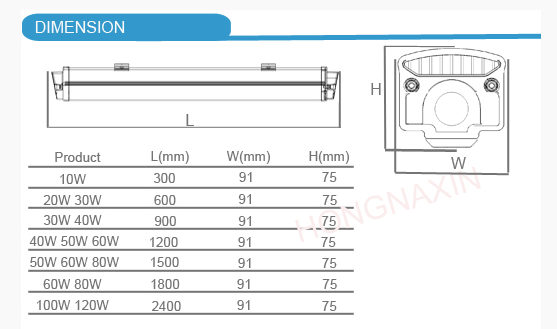

Size | LED Q'ty | Voltage | power | PF | color temp | Lumen | CRI |
600*91*75 | SMD 2835 120PCS | AC120V/220V | 20W | >0.95 | 3000-6500K | >100LM | >80Ra |
600*91*75 | SMD 2835 180PCS | AC120V/220V | 30W | >0.95 | 3000-6500K | >100LM | >80Ra |
1200*91*75 | SMD 2835 240PCS | AC120V/220V | 40W | >0.95 | 3000-6500K | >100LM | >80Ra |
1200*91*75 | SMD 2835 312PCS | AC120V/220V | 50W | >0.95 | 3000-6500K | >100LM | >80Ra |
1200*91*75 | SMD 2835 360PCS | AC120V/220V | 60W | >0.95 | 3000-6500K | >100LM | >80Ra |
1500*91*75 | SMD 2835 312PCS | AC120V/220V | 50W | >0.95 | 3000-6500K | >100LM | >80Ra |
1500*91*75 | SMD 2835 360PCS | AC120V/220V | 60W | >0.95 | 3000-6500K | >100LM | >80Ra |
