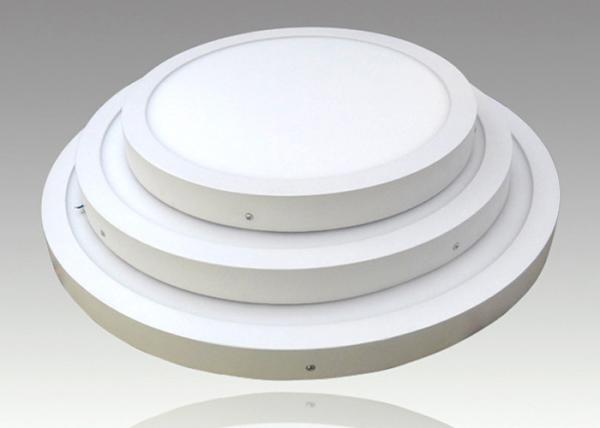

2 Years Warranty Round Led Ceiling Panel Light Use In Office Lighting
2 Years Warranty Round Led Ceiling Panel Light Use In Office Lighting
Specifications
Brand Name :
ZLONE
Model Number :
ZLRP3004024W
Certification :
CE ROHS TUV SGS SAA FCC
Place of Origin :
China
MOQ :
10pcs
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs/Month
Delivery Time :
5-7working days
Packaging Details :
20pcs/CTN 700*25*700 /CTN 22kgs/ CTN
Power :
24W
Size :
Φ300*40mm
Lumen :
2000-2100LM
Shape :
Round surface mounting
Warranty :
3 Year
certificate :
CE ROHS TUV FCC SAA SGS
Protection Grade :
IP44
Lifetime usage :
50000Hours
Description

2 Years Warranty Round Led Ceiling Panel Light Use In Office Lighting

Emergency Led Light Panel Specification:

Part No.

ZLRP3004024W

Optics

Parameters

Light Source

120pcs SMD2835 EPISTAR

Luminous Flux(lm)

2100LM

CCT(K)

warmwhtie(3000K)/white(6000K)/

Neturalwhite4000K

CRI(Ra)

more than 80Ra

Beam Angle

120 degree

Light Attenuation ratio (%)

less than 3% in 30,000Hrs

Lifespan (Hrs)

more than 50,000Hrs

Electric

Parameters

Input Voltage(V)

85-265Vac

Frequency(Hz)

50/60 Hz

Input Current(mA)

86mA (@ 220 Vac )

Total Power(W)

24W

Power Factor

0.95

Turn-on Time(S)

less than 0.05 S (@ 220Vac)

Dielectric Voltage Withstand Test

3750Vac/1min

Structure

Parameters

Material

Aluminum+ PMMA

Size(mm)

300mm*40mm

Net Weight(g)

125KG

Water Proof(IP)

Indoor Use Only IP44

Integrated

Parameters

Operating Temperature

-40 ~ +55 Centigrade

Storage Humidity

0% ~ 95%R.H.

Dimmable

Optional

More models available.

Product Name &Size Model&
Picture		 CCT Input
Voltage		 Lumen Flux CRI View Angle Led Brand & Type Note
12W
LED Surface Mounted Panel
Φ170*40mm 		ZLRP1704012WR
ZLRP1704012WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 880-960LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
18W
LED Surface Mounted Panel
Φ225*40mm 		ZLRP2254018WR
ZLRP2254018WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 1450-1650 LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
24W
LED Surface Mounted Panel
Φ300*40mm 		ZLRP3004024WR
ZLRP3004024WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 2000-2100LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
48W
LED Surface Mounted Panel
Φ600*40mm 		ZLRP6004048WR
ZLRP6004048WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 3300-3500 LM >75 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
3-Year Warranty

More sizes available:

2 Years Warranty Round Led Ceiling Panel Light Use In Office Lighting

Isolated Constand Current Driver used with High Voltage/Current Protection and PF>0.5

2 Years Warranty Round Led Ceiling Panel Light Use In Office Lighting

Applications:

  1. Hotels, Conference, Meeting rooms
  2. Factories & Offices
  3. Commercial Purposes
  4. Residential/institution Buildings
  5. Schools, Colleges & Universities, Hospitals
  6. Other lighting use
