Specifications
Brand Name :
ZLONE
Model Number :
ZL-STL03- 80W
Certification :
CE/ROHS/FCC/SGS/TUV
Place of Origin :
China,shenzhen factory
MOQ :
1 set
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/week
Delivery Time :
5-7 working days
Power :
80W
LED Brand :
SMD 3030
LEDs Qty :
77pcs
Material :
1060 Aluminum + PC Lens
Lumenius Fluxngle :
9000-9600lm
Lamp Efficiency :
120lm/w
Driver Brand :
Meanwell or TUV certificated
IP Rating :
IP65,IP66
Beam Angle :
70*140°
Installation Diameter :
60mm/40mm optional
Resist Lightning surge voltage :
4KV,10KV
CCT :
2700-6500K
CRI :
>70Ra,80Ra
Lamp Size :
432*160*90 mm
Warranty :
5-Year
PF :
>0.95
Description

80watt led street light, led with meanwell driver, 5-year warranty IP66,

led roadway light 80watt, leds street lamp, led street illuminair.

Minimalist&Toughness Design

Minimalist&toughness design ideas bring modern visual effect, angular appearance for lamp,

with light weight,saving cost for installation & shipping.

Grain Drying Process & Baking Paint Powder

The lamp surface treatment with grain drying process & baking paint powder,

enforce the anti-corrosion&surface strength ability.

Meanwhile improve better quality sense,creative design,elegant appearance.

80watt led street light, led with meanwell driver, 5-year warranty IP66, led roadway light 80watt, leds

80watt led street light, led with meanwell driver, 5-year warranty IP66, led roadway light 80watt, leds

Optimization of The Cooling Air Duct

Both sides for street light is not closed completely, separately keep holes to generate air duct,

make better heat dissipation through air duct; Further to improve the best heat dissipation effect,

fixture is designed by a row of air vent.

80watt led street light, led with meanwell driver, 5-year warranty IP66, led roadway light 80watt, leds

Product parameter:ZL-STL03-80W

Model & Power ZL-STL03-80W 80Watt
Input Voltage AC 90-260V
Frequency Range 50/60HZ
Power Factor >0.95
Driver Brand Meanwell/TUV
LED Quantity 77pcs SMD 3030
LED Consumption 80W
Beam Angle 70*140°
Luminous Efficiency 120-130LM/W
Luminous 9000-9600lm
Color Temperature Warm white (WW) 2800-3000K/3000-3200K
Natural white (NW) 3500-4500K
Pure white (PW) 5500-6500K
Color Rendering Index WW Ra>75
NW / PW Ra>80
Working Temperature -30℃ - +50℃
Resist Lightning surge voltage 4KV(without surge protective Device)
10KV(with surge protective Device)
IP Grade IP65,IP66
LED working Life-span >50,000H

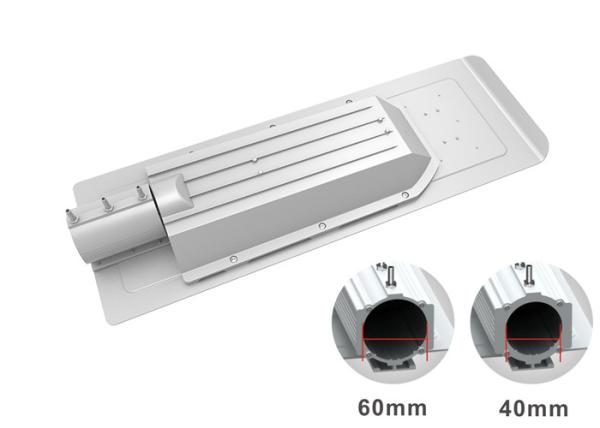

Installation Diameter 60mm/40mm optional
Certificates CE, RoHS, PSE

Product Profile Chart:

80watt led street light, led with meanwell driver, 5-year warranty IP66, led roadway light 80watt, leds

More wattages for option

80watt led street light, led with meanwell driver, 5-year warranty IP66, led roadway light 80watt, leds

Electric Data
Model

ZL-STL03-

30W

ZL-STL03-

40W

ZL-STL03-

60W

ZL-STL03-

80W

ZL-STL03-

120W

ZL-STL03-

150W
Power 30W 40W 60W 80W 120W 150W
Input Voltage AC 90-277V 50/60Hz
Photometric Specifications
LED Brand SMD LED 3030
Driver Brand Meanwell Driver
CRI >80
CCT 2700-6500K
PF >0.95
Beam Angle 70*140°
Luminous Efficiency 120lm/w

Luminous

Flux

 3400-3600lm 4600-4800lm 6800-7200lm 9000-9600lm

12800-14400

lm

16800-18000

lm
LEDs Qty. 24pcs 36pcs 54pcs 77pcs 112pcs 144pcs
Mechanical Specifications
IP Rate IP65
Working Environment -40℃~50℃,20%~90% H.R
Storage Temperature -40℃~85℃,10%~90% H.R.
Body Material Aluminum + AL PCB
Lens Material PC
Dimmable (optional)

0-10V, 1-10V dimmable

Daylight Sensor/ Microwave motion sensor
Installation Diameter 60mm/40mm optional
Resist Lightning surge voltage

4KV(without surge protective Device)

10KV(with surge protective Device)
N.W. 1.85KG 2KG 2.9KG 2.7KG 4.5KG 5.8KG
Lamp Size

366*135*85

mm

366*135*90

mm

432*160*90

mm

432*160*90

mm

632*215*90

mm

632*215*90

mm
Lifespan >50,000 Hours (Ta=30℃@L70)
Warranty 5-Year

Application:

  • Urban roads and highways

  • Parking area

  • Residential or insturial fields

  • Parks and commerical areas
