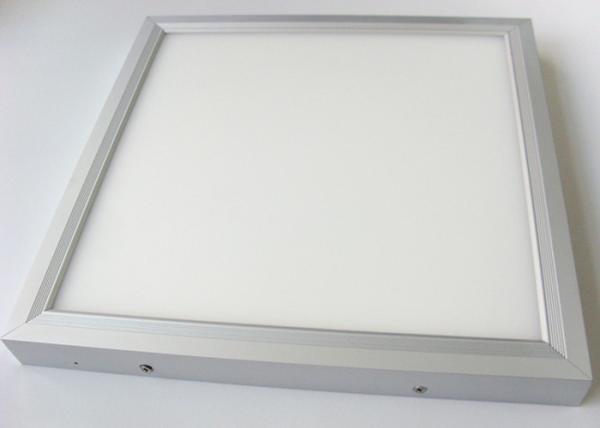

Dimmable 48w CRI > 80 Surface Mounted Led Panel Light For Office / Led Panel 60x60cm
Dimmable 48w CRI > 80 Surface Mounted Led Panel Light For Office / Led Panel 60x60cm
Specifications
Brand Name :
ZLONE
Model Number :
ZLRP6004048WS
Certification :
CE ROHS TUV SGS SAA FCC
Place of Origin :
China
MOQ :
2PCS
Price :
USD5.0-55.0/PC
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs/Month
Delivery Time :
3-5 working days
Packaging Details :
3pcs/CTN 720*25*720mm /CTN N.W: 4.8KGS G.W:18kgs/ CTN
Size :
600x600x40mm
Power :
48W
Lumen :
3600-3800LM
Shape :
Flat Surface mounting
Working Temperature :
-25℃-+55℃
Driver THD :
<15%
LED Brand :
EPISTAR SMD2835
Lifespan :
50000Hours
Description

Dimmable 48w CRI > 80 Surface Mounted Led Panel Light For Office / Led Panel 60x60cm

48w surface mounted panel specf.

Part No.

ZLRP6004048WS

Optics

Parameters

Light Source

288pcs SMD2835 EPISTAR

Luminous Flux(lm)

3600-3800LM

CCT(K)

warmwhtie(3000K)/white(6000K)/

Neturalwhite4000K

CRI(Ra)

more than 80Ra

Beam Angle

120 degree

Light Attenuation ratio (%)

less than 3% in 30,000Hrs

Lifespan (Hrs)

more than 50,000Hrs

Electric

Parameters

Input Voltage(V)

85-265Vac

Frequency(Hz)

50/60 Hz

Input Current(mA)

950mA (@ 220 Vac )

Total Power(W)

48W

Power Factor

0.95

Turn-on Time(S)

less than 0.05 S (@ 220Vac)

Dielectric Voltage Withstand Test

3750Vac/1min

Structure

Parameters

Material

Aluminum+ PMMA

Size(mm)

600x600x40mm

Net Weight(g)

4.7KG

Water Proof(IP)

Indoor Use Only IP44

Integrated

Parameters

Operating Temperature

-40 ~ +55 Centigrade

Storage Humidity

0% ~ 95%R.H.

Dimmable

Optional

About the Driver:

Driver used Isolated Constant Current Driver with PF>0.95, THD<15%, CE/RoHS approval

3-Year warranty.

IES Test result:

Dimmable 48w CRI > 80 Surface Mounted Led Panel Light For Office / Led Panel 60x60cm

Dimmable 48w CRI > 80 Surface Mounted Led Panel Light For Office / Led Panel 60x60cm



Product Application:
1: Hotels, Conference, Meeting rooms
2: Factories & Offices
3: C ommercial Purposes
4: Residential/institution Buildings
5: Schools, Colleges & Universities, Hospitals
6: Other lighting use
