Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel
Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel
Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel
Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel
Specifications
Brand Name :
ZLONE
Model Number :
ZLRP6004048WR
Certification :
CE ROHS TUV SGS SAA FCC
Place of Origin :
China
MOQ :
none
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50000pcs/Month
Delivery Time :
7-10working days
Packaging Details :
3pcs/CTN 720*25*720mm /CTN N.W: 4.8KGS G.W:18kgs/ CTN
Size :
Φ600*40mm
Power :
48W
Lumen :
3600-3800LM
CRI :
80Ra
CCT :
3000K,4000K,6000K
Warranty :
3 Years
LED Brand :
EPISTAR SMD2835
Lifespan :
50000Hours
IP Grade :
IP44
Installation :
Surface Mounting
Description

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel

Description for LED Panel light
LED panel lamp is a high-grade lighting lamps, light by LED lighting source. The outside borders made by anodic oxidation aluminum alloy. Design of LED panel light is beautiful and concise, atmospheric luxury. Good lighting effect can make person feeling good. Unique inside design, light after high light transmittance of guide plate to form a uniform plane light effect, good intensity of illumination uniformity, soft and comfortable, can release eyes fatigue effectively. LED panel light also can prevent radiation, friendly to the pregnant women, the elderly and children's skin.

Specification for 600mm round surface mount panel 48W

Part No.

ZLRP6004048WR

Optics

Parameters

Light Source

288pcs SMD2835 EPISTAR

Luminous Flux(lm)

3400-3600LM

CCT(K)

warmwhtie(3000K)/white(6000K)/

Neturalwhite4000K

CRI(Ra)

more than 80Ra

Beam Angle

120 degree

Light Attenuation ratio (%)

less than 3% in 30,000Hrs

Lifespan (Hrs)

more than 50,000Hrs

Electric

Parameters

Input Voltage(V)

85-265Vac

Frequency(Hz)

50/60 Hz

Input Current(mA)

950mA (@ 220 Vac )

Total Power(W)

48W

Power Factor

0.95

Turn-on Time(S)

less than 0.05 S (@ 220Vac)

Dielectric Voltage Withstand Test

3750Vac/1min

Structure

Parameters

Material

Aluminum+ PMMA

Size(mm)

600mm*40mm

Net Weight(g)

4.7KG

Water Proof(IP)

Indoor Use Only IP44

Integrated

Parameters

Operating Temperature

-40 ~ +55 Centigrade

Storage Humidity

0% ~ 95%R.H.

Dimmable

Optional

About the Driver:

Driver used Isolated Constant Current Driver with PF>0.95, THD<15%, CE/RoHS approval

3-Year warranty.

Quality key point:

3400-3600LM

288pcs SMD2835 EPISTAR

About the Driver:

Driver used Isolated Constant Current Driver with PF>0.95, THD<15%, CE/RoHS approval

3-Year warranty.

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel

IES Test result:

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel

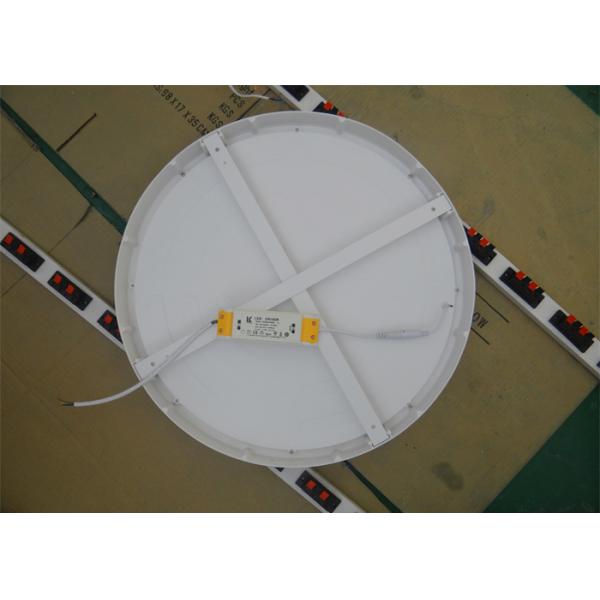

48W 600mm round surface mounted panels in production/aging test.

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel


Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel

Application:
1.lighting projects, banks, hotels, schools, bookstores, sports and other lighting
2.Exhibition,Fashionable dress act ;
3.Furniture, lighting, commercial lighting, museums, exhibition lighting
4.High-class stores,shopping malls;
5. Restaurant,Shopping Mall;

Surface Mounted 48w Led Panel Lamp 600x600 Led Ceiling Panel
