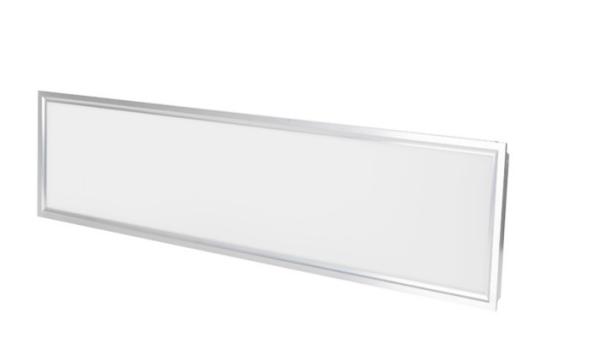

36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300
36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300
36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300
36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300
36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300
36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300
Specifications
Brand Name :
ZLONE
Model Number :
ZLP031272WS
Certification :
TUV/ETL/CE/ROHS
Place of Origin :
China
MOQ :
5pcs
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000PCS/Week
Delivery Time :
3-7 work days
Packaging Details :
5pcs/CTN G.W:25KGS 131*41*25cm/CTN
CCT :
CW/NW/WW/RGB
Volt :
AC100-260V
LED type :
Samsung SMD5630
Angle :
120 degree
CRI :
>85
Lumen :
80-90lm/w
IP grade :
IP44
Size :
300*1200*10mm
Watt :
72w
Driver :
UL approved
Description

36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300

  1. Westinghouse LED Panel Supplier.
  2. High quality Aluminum Frame with better heat-dissipation design
  3. High brightness LED SMD2835 EPISTAR or SAMSUNG LED
  4. Driver: CE/RoHS, EMC/LVD, SB , TUV SAA approved Isolated Constant Current Driver with PF>0.95
  5. CRI>85 or CRI>90
  6. Lifespan > 50000Hours
  7. Light Efficiency: 85-90LM/W
  8. UGR< 19 for EU marketing
  9. IP44 Rating or IP54/IP65 available
  10. LGP thickness: 3mm, 4mm, 6mm (Mitsubishi LGP with light transmittance >95%)
  11. We have NON-DUST workshop for panel assembly, and Dark Room can provide IES Report.
  12. Shortest delivery: 1-2 days for samples, 7-12working days for mass production.
  13. 3-Year warranty
  14. Proudly to say, we had less than 1% defective rate of the sold panels within 3 years.
  15. >5% Light Decay after 1-year use.
  16. TRIAC, 0-10V, DALI Dimmable, Color Temperature Dimmable available

Specification
Quality key point

Item No.

LED Quantity
(PCS)

Light Source

Power
(W)

Luminous Flux
(LM)

Size(mm)

ZLP031272WS

176pcs

SMD5630
SAMSUNG

72W

WW

5200LM±10%

295*1195*12mm

NW

5400LM±10%

CW/PW

5600LM±10%

Input Voltage :

100-260V AC 50Hz -60Hz

Power Factor:

≥0.97

LED Brand:

SAMSUNG

Color Temperature:

2700-3500K(WW) 4000-4500K(NW) 5000-5500K(PW) 6000-6500K(CW)

Color Rendering Index:

>84Ra

Beam Angle :

120°

Operating Temperature

(-10℃ to +40℃)

Storage Temperature:

(-20℃ to +85℃)

Humidity Operating:

10-80%

Material :

(6063)Aluminum body + PMMA +LGP

Lifespan :

>50,000 hours

Net Weight:

4.5kgs

Accessory:

UL/CUL approved Power Supply + Installation Kits for certain installation

Fixing Ways:

Built-in/Mounted/Suspended

Certificates:

CE/RoHS/SGS/UL/CUL

Color:

White/Silver Frame optional

Protection Grade:

IP 42

Warranty:

3 Years

Packing:

EPE Cotton Packing: 4pcs/CTN G.W:23KGS/CTN Size: 130*40*25cm

More Wattages for Option

ZLP031236WS

36W

88 pcs 5630 SMD

WW (2500LM±10%) NW (2700LM±10%) CW (2900LM±10%)
CRI>84Ra PF≥0.97

ZLP031242WS

42W

88 pcs 5630 SMD

WW (3000LM±10%) NW (3200LM±10%) CW (3400LM±10%)
CRI>84Ra PF≥0.97

ZLP031248WS

48W

99pcs 5630 SMD

WW (3400LM±10%) NW (3600LM±10%) CW (3800LM±10%)
CRI>84Ra PF≥0.97

ZLP031254WS

54W

176pcs 5630 SMD

WW (3900LM±10%) NW (4200LM±10%) CW (4500LM±10%)
CRI>84Ra PF≥0.97

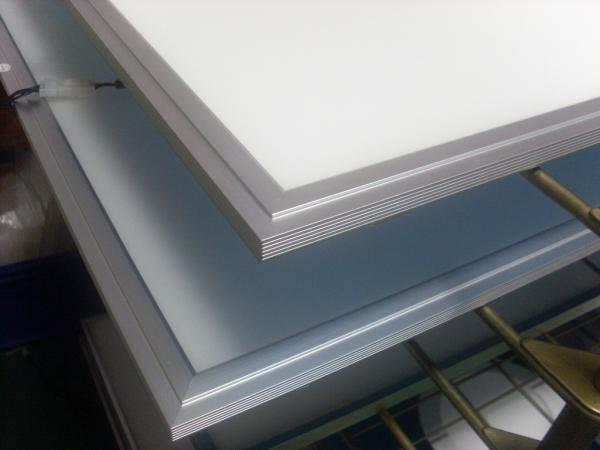

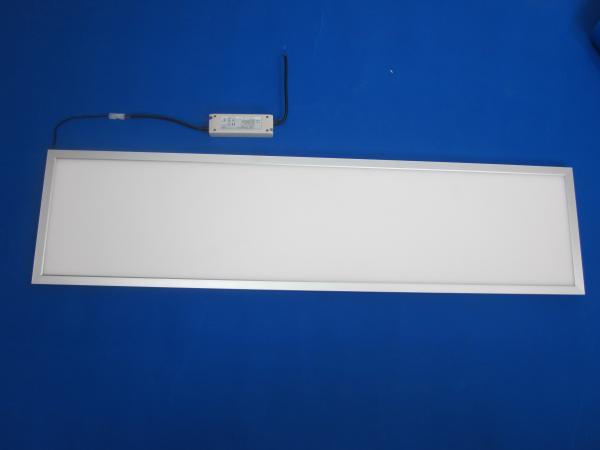

More pictures :
36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300

36w 42w 48w 54w Samsung Flat Panel Led Lights Lamp 1200 X 300
