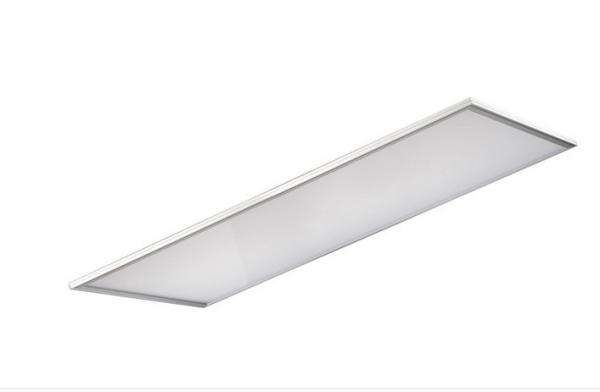

Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200
Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200
Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200
Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200
Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200
Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200
Specifications
Brand Name :
ZLONE
Model Number :
ZLP031254W
Certification :
TUV/ETL/CE/ROHS
Place of Origin :
China
MOQ :
5pcs
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000PCS/Week
Delivery Time :
3-7 work days
Packaging Details :
5pcs/CTN G.W:25KGS 131*41*25cm/CTN
CCT :
CW/NW/WW/RGB
Volt :
AC100-260V
LED type :
Epistar SMD2835
Angle :
120 degree
CRI :
>85
Lumen :
80-90lm/w
IP grade :
IP44
Size :
300*1200*10mm
Watt :
54w
Driver :
UL approved
Description

Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200

  1. Westinghouse LED Panel Supplier.
  2. High quality Aluminum Frame with better heat-dissipation design
  3. High brightness LED SMD2835 EPISTAR or SAMSUNG LED
  4. Driver: CE/RoHS, EMC/LVD, SB , TUV SAA approved Isolated Constant Current Driver with PF>0.95
  5. CRI>85 or CRI>90
  6. Lifespan > 50000Hours
  7. Light Efficiency: 85-90LM/W
  8. UGR< 19 for EU marketing
  9. IP44 Rating or IP54/IP65 available
  10. LGP thickness: 3mm, 4mm, 6mm (Mitsubishi LGP with light transmittance >95%)
  11. We have NON-DUST workshop for panel assembly, and Dark Room can provide IES Report.
  12. Shortest delivery: 1-2 days for samples, 7-12working days for mass production.
  13. 3-Year warranty
  14. Proudly to say, we had less than 1% defective rate of the sold panels within 3 years.
  15. >5% Light Decay after 1-year use.
  16. TRIAC, 0-10V, DALI Dimmable, Color Temperature Dimmable available

Specification

Quality key point

SMD 2835 EPISTAR LED Chip

6063 Aluminium &PMMA(Japan)

Power: 36W/40W/48W/54W/72W Input Voltage: AC100-260V 50/60Hz
LED Brand/Type: SMD 2835 EPISTAR Size: N.W:4.8kgs 5pcs/CTN
G.W: 25KGS 131*41*25cm
White/Silver Frame
Frame White/Silver Driver CE RoHS isolated driver
Lumenious Flux: 85-88lm/W CCT: WW:3000K/NW:4000/CW:6000K
CRI: >80 Material 6063 Aluminium &PMMA(Japan)
PF: >0.95 Lifespan >50,000Hours
IP Rating: IP42 Warranty 3 Years
Beam Angle: 120° Certificates

TUV/CE/RoHS/SAA/CB

More pictures :

Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200

Ultra Thin 10mm 54w Led Flat Panel Lighting Led Panel 300x1200
