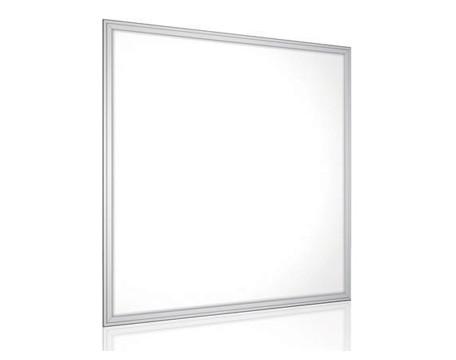

Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light
Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light
Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light
Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light
Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light
Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light
Specifications
Brand Name :
ZLONE
Model Number :
ZLP0606-36W-72W
Certification :
CE ROHS TUV SGS SAA
Place of Origin :
China
MOQ :
2PCS
Price :
US$30-40/PC
Payment Terms :
Western Union, T/T
Supply Ability :
20000pcs/month
Delivery Time :
5-7working days
Packaging Details :
N.W:4.8kgs 5pcs/CTN G.W: 24KGS Size:71*71*25cm/CTN
Power :
48W
Size :
600x600mm
CRI :
80Ra
CCT :
2700-6500K
IP Grade :
IP44
Lumenous Fux :
4100LM
Lifespan :
50000hours
Warranty :
3 Year
Installation :
False-ceiling, suspended, mounted
Color :
White ,Silver
Description

Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light

Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light

Features:
1. Material: superior aluminum alloy and high quality acrylic plate (PMMA).
2. Operating Voltage: low voltage DC38-42V
3. Input Voltage:AC100V~AC260V available
4. Light source: low power EPISTAR SMD LEDs (placed in the edge of the plate)
5. Color Rendering Index CRI >80
6. Uniformity of light color: ≥ 90%
7. Lifespan: ≥ 50000h (8 years using validity)
8. Beam angle: 120 degree
9. Color: White (various colors available)
10. Color temperature: 2700K-7000K (Optional, according to your requirement)
11. Ambient temperature: -20℃~85℃
12. Edge-lit methods, with advanced light guide technology.
13. Low heat and more environment protection.
14. No stroboscopic, no pollution, long lifespan, low luminous decay.
15. Quickly start (0.01second) and the light is natural and soft, appearance is exquisite,
16. CE, FCC, RoHS approved, with 3 year quality warranty.

Specifications:

Model & Picture Power Dimension Input Voltage Body Material LED Brand/
Type		 CCT

Lumen
Flux

 CRI Note
ZLP060636WS 36W 595*595*10
(mm)		 100-260V AC 50/60Hz
TUV/CE SAA CB approved Constant Current Driver		 6063 Aluminium &
PMMA
(Japan)		 SMD 2835
EPISTAR 		WW:3000K
NW:4000K
CW:6000K

3000-
3300LM

 >80 IP Rating:IP44
PF>0.95
Beam Angle: 120°
3 Years Warranty
CE/RoHS
Life:50,000hrs
N.W:4.8kgs
5pcs/CTN
G.W: 24KGS
71*71*25cm/CTN
White/Silver Frame
ZLP060640WS 40W 3400-3600LM
ZLP060654WS 54W 4600-5000LM
ZLP060672WS

72W

5800-6400LM


Connection & Installation:
Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light
Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light

Application:
Replacement for conventional down light lamp in
Hotels
Conference / Meeting rooms
Offices
Commercial Complexes
Residential / Institution Buildings
Schools, Colleges, Universities
Hospitals, etc.

Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light


Energy Efficient 48w 600x600 Led Panel Light Fixtures , Led Square Ceiling Light
