Specifications
Brand Name :
ZLONE
Model Number :
ZL-TGD-100W
Certification :
CE ROHS TUV SGS FCC IP65
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50,000pcs/Month
Delivery Time :
7-10working days
Packaging Details :
380*280mm 2pcs/Carton N.W:3.46kg/pcs G.W:3.77kg/pcs
Power :
ZLONE
Model :
ZL-TGD-100W
Wattage :
100watt
LED Brand :
Bridgelux Chip 45mil
IP rating :
1p66 ip65
Input Voltage :
90-260vac 50-60Hz
Description

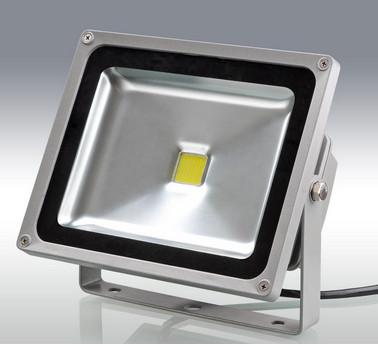

100w 10000lm Bright Outdoor Flood Lights IP65 Led Floodlight 60 120 Degree Angle

100w 10000lm Bright Outdoor Flood Lights IP65 Led Floodlight 60 120 Degree Angle

-------------------------------------PRODUCT Feature ---------------------------------------
1. Led chip: High lumen EPISTAR chip-on-board chips or BRIDGELUX delivery 80lm/w high lumens in high CRI for lighting performance and have 120o beam angle for lighting.
2. Lifespan: ZLONE’s led flood light has 50000 hours lifespan for using. You can using 5 years base on using 10 hours per day.
3. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.
4. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process. Also the quality of the lamp housing is same.
5. Glass Cover: High quality 4mm-5mm thickness heat-resistant temper glass will not splash when the flood light is exploded in wrong operation. It guarantees 100% light transmittance and uniform light distribution.
6. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.
7. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.
8. Adjustable bracket: It can adjust 0-180o beam angle in horizontal direction for different application purpose.
9. Warranty: ZLONE offers 2-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.
Customized your LED flood light:
1. Different led chip brand:Epistar/Bridgelux/CREE
2. Dimmable are available,compatible most dimmer,RF remote prepared
3. Isolated power supplier and non-isolated power could be chosen.
4. Regular lumen 90-100lm/w,Highest lumen 130lm/w or 120-140lm/w for chosen.
5. Different power supplier solution:lowest temperature upto -40 degree.it could be updated to Meanwell power supplier.
6. Long life span,20000/50000 hours,2-5 years warranty by your request.


Specifications:

Part No.

ZL-TGD-100W

Optics

Parameters

Light Source

1pc bridgelux chip 45mil

Luminous Flux(lm)

9800LM

CCT(K)

warmwhtie(3000K)/white(6000K)/

Neturalwhite4000K

CRI(Ra)

more than 80Ra

Beam Angle

120 degree

Light Attenuation ratio (%)

less than 3% in 30,000Hrs

Lifespan (Hrs)

more than 50,000Hrs

Electric

Parameters

Input Voltage(V)

85-265Vac

Frequency(Hz)

50/60 Hz

Input Current(mA)

86mA (@ 220 Vac )

Total Power(W)

105W

Power Factor

0.95

Turn-on Time(S)

less than 0.05 S (@ 220Vac)

Dielectric Voltage Withstand Test

3750Vac/1min

Structure

Parameters

Material

Aluminum+ PMMA

Size(mm)

380*280mm

Net Weight(g)

7.35KG

Water Proof(IP)

IP66

Integrated

Parameters

Operating Temperature

-40 ~ +55 Centigrade

Storage Humidity

0% ~ 95%R.H.

Dimmable

Optional

instructions:

1.LED is DC driven, low power consumption device.It is anti-seismic, impact resistant,Non-thermal

radiation,secure stable,reliableWorry free for thermal dissipation, long lifespan, compact

light body ,simple installation chic style, manufacturing excellence and product serration.

2.Energy saving,environment-friendly,waste free,completely recyclable.
