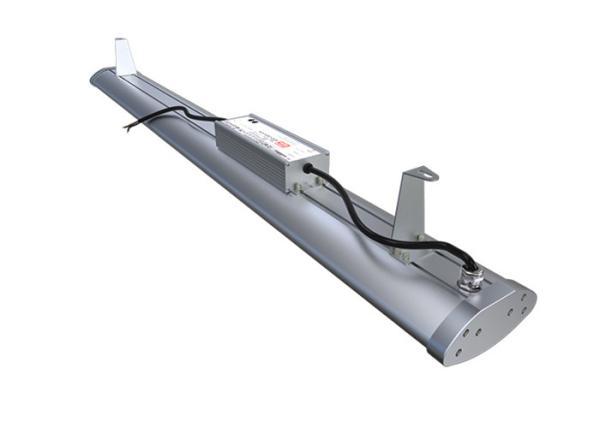

High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
High Lumen Linear High Bay LED Lighting 120 Watt 90cm Ip65 2700-6500K 120º Beam Angle
Specifications
Brand Name :
ZLONE
Model Number :
ZL-HBL-900-120W
Certification :
CE/RoHS/TUV/SGS/DLC/ETL/UL
Place of Origin :
China,Shenzhen
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5,000pcs/month
Delivery Time :
5-7working days
Packaging Details :
2pcs/ctn
Power :
120W
Size :
900x150x68mm, 3feet
Material :
AL housing+PC cover+AL board
Input Voltage :
AC 90-277V 50/60Hz
LED Source :
SMD 2835 EPISTAR
LED Qty :
756pcs
Lumenius Flux :
14,400 -15,600lm
Lamp Efficiency :
120-130lm/w
Dimming/Control Way :
0-10V,1-10V,Zigbee,Motion Sensor/ Daylight Optional
Driver Brand :
Meanwell HLG/ELG
IP Rating :
IP65,IP66
IK Grade :
IK10
CCT :
2700-6500K
PF :
>0.95
CRI :
80Ra
Working Temperature :
-30~+50℃
Warranty :
5-Year
N.W :
4.5KG
Description

Hot New 40w LED Tri Proof Light Product for 2015 Latest 3 Years Warranty high luminous

Features.

1. Unique patent design, TUV-GS, UL, DLC, ERP, CE certified.

2. Water-proof, Dust-proof, Damp-proof, Pressure-proof.

3. High luminous efficiency 100 -115LM/W.

4. Low light decay, L70=50,000 Hours.

5. High impact test, IK09.

6. Long lifespan 50,000 hours.

7. 3 years warranty.

8. Energy saving up to 80%.

9. Maximum 3M Long for single product .

10. Excellent heat dissipation support stable quality.

11. Convention installation for linking in series.

Specification

Model No.:

ZL-TPL4F40W

Actual Size

1200x910x74mm

LED Source/QTY

288PCS SMD LED 2835

Power

40W

Color Temp

Warm White: 2800-3500K

Neutral White: 4000-4500K
Cool White: 6000-6500K

Luminous (lm)

3800~4400 LM

Luminous Flux

(5000-5500k)

1M

1330-1400 Lux

2M

330-350 Lux

3M

147-160 Lux

Lighting effect

95~110LM/W

CRI

80-85Ra

P.F

>0.95

Input Voltage

AC85-265V, 50/60Hz

Output Voltage

DC30-40V

Work Temp

-20~80°C

Main Material

Aluminum housing , PC cover

Frame color

White, sliver

Installation

surface mounted, ceiling hanging

Lifespan

More than 35000H

Warranty

3 Years

Certification

TUV, ROHS, CE, CB, FCC

Protection Grade

IP65

Packing

Carton Size: 1280*260*300mm, 6pcs/ctn, N.W.: 12 kgs/ctn, G.W.: 17 kgs/ctn

Application:

- Underground parking lot, metro station, Subway,Train station,underground tunnel

- factory, gas station,outdoor playground,airport,indoor stadium

- Garden,Courtyard,and other humid environment etc.

Feature
1, IP66 Water-proof, Dust-proof and Corrosion-proof
2, Resist compression, Explosion Proof
3, High lumen output >85Lm/W CRI>80
4, Thickened 1.3mm Aluminum housing, Excellent heat dissipation
5, Constant current isolated power supply, PF>0.9
6, Long Lifespan 50000 hours, 3 Years Warranty

7, More than 80% saving energy over fluorescent tubes
8, Specially used in Harsh Environments, such as Mining area,Steel plant,Factory,Tunnel,Basement etc.
