Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom
Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom
Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom
Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom
Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom
Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom
Specifications
Brand Name :
ZLONE
Model Number :
ZLRP120406WR
Certification :
SAA TUV CE ROHS UL
Place of Origin :
China
MOQ :
NONE
Price :
Negotiable
Payment Terms :
, T/T, Western Union
Supply Ability :
50000pcs/Month
Delivery Time :
5-7working days
Packaging Details :
5.9kgs/ CTN 20pcs/CTN 380*250*380mm /CTN
Power :
6W
Shape :
Round surface mount
Color :
Milky White
Lumenious Flux :
480lm
CIR :
>80
PF :
>0.95
Input Voltage :
90-260VAC 50/60Hz
Brand :
ZLONE
LED Type :
SMD2835 EPISTAR
LED Qty :
30pcs
Description

Ultra Thin Dimmable Round Surface Mounted LED Panel 6W 12W 18W for Kitchen Bedroom

Advantages and features:


1. Save up more than 80% power consumption .
2. Brand New High quality .
3. No UV radiation, No RF interference, No flashing and shockproof .
4. Safe and long lifespan, over 50,000 hours, low pressure constant current driver .
5. Wide range of applications, easy installation, low maintenance costs.
6. panel indicator lights

Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

Details

Model Number ZLRP120406WR Installation

Surface Mounting

View Angle

120°
Brand ZLONE Size Φ120*40mm Power factor

>0.95
Lamp Power(W) 6W Luminous Efficiency 85lm/w Driver Type

Isolated Constant current driver
Luminous Flux(lm) 420-480LM CRI >80 Input Voltage:

85V~265V AC

50/60Hz
CCT 2700-6500K LED QTY 30pcs Warranty

2Years
IP Grade IP44

LED Light Source

 SMD2835 LED Brand EPISTAR
Working Lifetime 50000Hours Working Temperature -25℃ - +55℃ Certification

CE, EMC, LVD, RoHS,TUV,SGS

Driver used for the panel- Isolated constant current driver.

Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

Available Models:

Product Name &Size Model&
Picture		 CCT Input
Voltage		 Lumen Flux CRI View Angle Led Brand & Type Note
12W
LED Surface Mounted Panel
Φ170*40mm 		ZLRP1704012WR
ZLRP1704012WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 880-960LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
18W
LED Surface Mounted Panel
Φ225*40mm 		ZLRP2254018WR
ZLRP2254018WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 1450-1650 LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
24W
LED Surface Mounted Panel
Φ300*40mm 		ZLRP3004024WR
ZLRP3004024WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 2000-2100LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
48W
LED Surface Mounted Panel
Φ600*40mm 		ZLRP6004048WR
ZLRP6004048WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 3300-3500 LM >75 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
3-Year Warranty

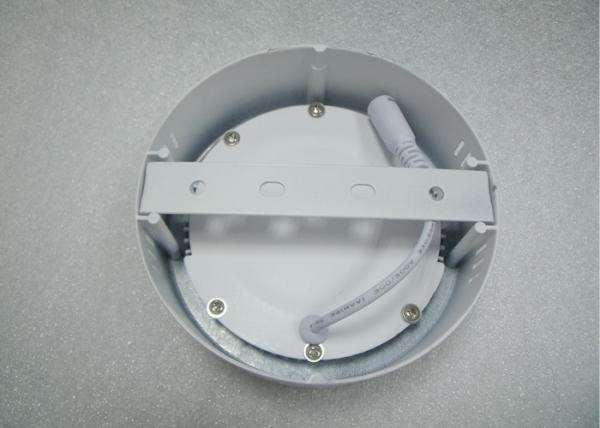

Installation:

Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom

Cautions

Switch off power before replaceing lamp.

Keep away from direct sunshine and high temperature.

If any doubt about installation or use of product, consult electrician.

Application:
1. Lighting for home, hotel, shopping mall, school, office, hospitals, library etc;
2. Decoration for park, arena, hotel, supermarket, festive lamp etc.

Ultra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen BedroomUltra Thin wall mounted led light panel 6W 12W 18W , led backlight panel for Kitchen Bedroom
