3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS
3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS
3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS
3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS
3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS
3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS
Specifications
Brand Name :
ZLONE
Model Number :
ZLRP1704012WSRE
Certification :
CE ROHS TUV FCC
Place of Origin :
China
MOQ :
NONE
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
50000pcs/Month
Delivery Time :
5-7working days
Packaging Details :
5.9kgs/ CTN 20pcs/CTN 380*250*380mm /CTN
Name :
Flat surface mounted panel
Power :
12W
Brand :
ZLONE
Original :
China
Cert :
CE ROHS FCC TUV SGS
Protection Grade :
IP44
Input Voltage :
90-260VAC 50/60Hz
Installation Way :
Surface Mounting
Lumen :
980lm
CRI :
>80
Description

3 Years' Warranty Rechargeable Emergency Led Panel 12W 1000LM Epistar 2835 CE RoHS

Description:

Energy-saving: Low energy consumption: 80% of energy saved than fluorescent lamp.
Long Life-span: 10 times longer than fluorescent lamp.
Edge-lit panel technology: Non-glare & high uniformity. No flicker.
Well-being : No UV wave, RFI free, No dazzling, no tiredness for eyes.
Eco-friendly : No mercury, longer life, no environment pollution, environment-friendly.
LEDs Working separately: Special circuit design,each group of LEDs work separately,avoiding any problem of lighting output caused or influenced by single faulty LED.
Revolutionary heat dissipation: good heat dissipation ,make LEDs Lumen Attenuation very small

Parameters

Model Number ZLRP1704012WSRE Installation

Surface Mounted

View Angle:

120°
Brand ZLONE Size: Φ170*40mm Power factor:

>0.95
Lamp Power(W): 12W Luminous Efficiency 85lm/w Driver Type

Isolated Constant current driver THD<20%
Luminous Flux(lm): 980-1100LM CRI >80 Input Voltage:

85V~265V AC 50-60Hz
CCT

3000K Warm White

4000K Natural White

6000K Cold White

 LED QTY: 60pcs Warranty :

2Years
IP Grade IP44

LED Light Source:

 SMD2835 LED Brand EPISTAR
Working Lifetime 50000Hours Working Temperature -25℃ - +55℃ Certification:

CE, EMC, LVD, RoHS,TUV,SGS

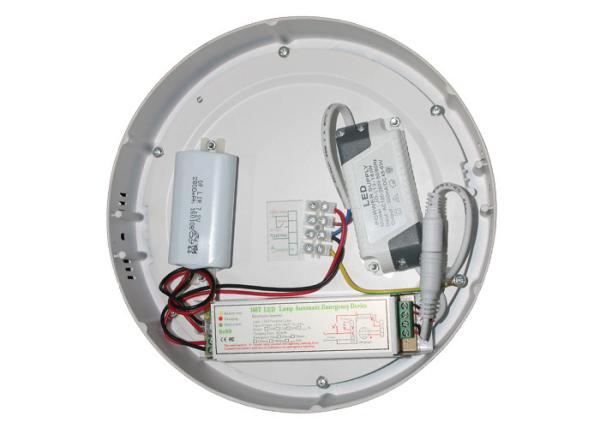

Inside structure of 12W panel

Isolated constant current driver with EMC/LVD , THD<15%

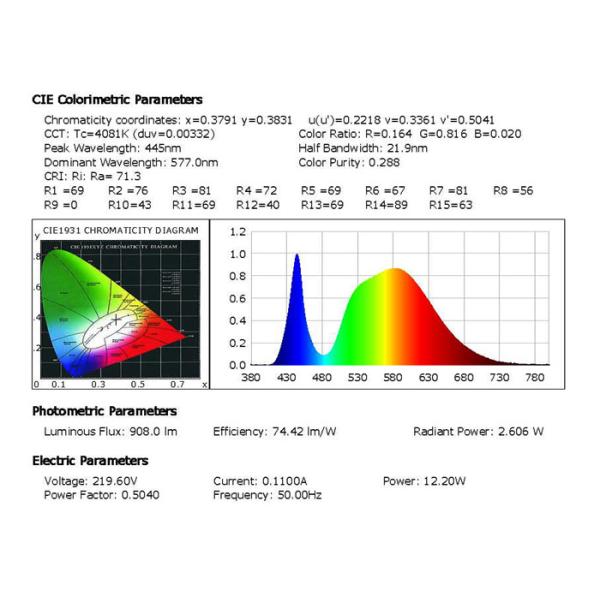

Intergrated Sphere Test result 3000K Warm White:


3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS

More wattages and sizes available:

Product Name &Size Model&
Picture		 CCT Input
Voltage		 Lumen Flux CRI View Angle

Led Brand

& Type

 Note
6W
LED Surface Mounted Panel
Φ120*40mm 		ZLRP120406WR
ZLRP120406WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 360-420LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
18W
LED Surface Mounted Panel
Φ225*40mm 		ZLRP2254018WR
ZLRP2254018WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 1450-1650 LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
24W
LED Surface Mounted Panel
Φ300*40mm 		ZLRP3004024WR
ZLRP3004024WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 2000-2100LM >80 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
2-Year Warranty
48W
LED Surface Mounted Panel
Φ600*40mm 		ZLRP6004048WR
ZLRP6004048WS		 3000K
4000K
6000K		 100-260V AC 50/60Hz 3300-3500 LM >75 120° SMD 2835
EPISTAR		 IP40
CE/RoHs
Surface mount
WHITE Frame
3-Year Warranty

Installation guidance
3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS

Application of surface mounted led panel lights:


1. Hotels
2. Conference/Meeting rooms
3. Factories & Offices
4. Commercial Purposes
5. Residential / Institution Buildings
6. Schools, Colleges & Universities
7. Hospitals


3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS
3 Years Warranty Rechargeable Emergency Led Light Panel 12W 1000LM Epistar 2835 CE RoHS
