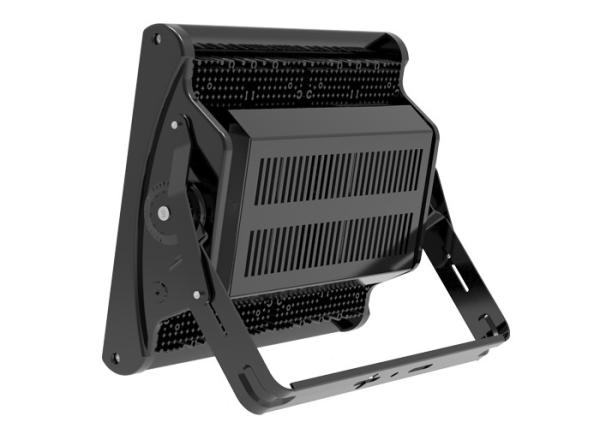

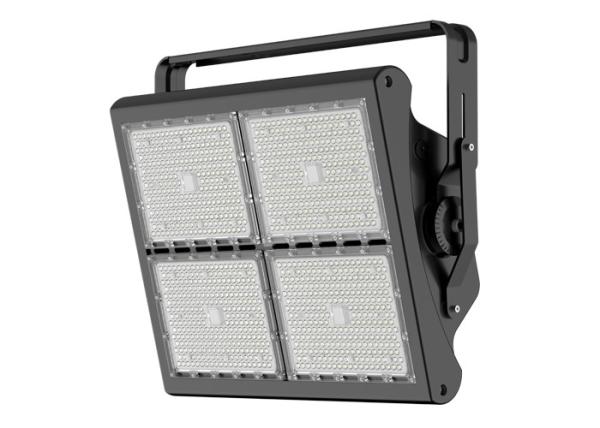

800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
Specifications
Brand Name :
ZLONE
Model Number :
ZL-SPM-800W
Certification :
CE, ROHS, TUV,UL,ETL,DLC, SAA
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Packing Size:880*560*200mm NW:56KG GW:59.5KG
Lamp Power :
800Watt
Input Voltage :
AC85-277V
Lamp efficiency :
140lm/w
Lumen flux :
112000LM
Material :
1070 Cold Forging Alu+Lens
Beam Angle :
25°/45°/60°/90° ( 10° optional)
LED Brand :
3030/ CREE LED for 10° Angle
CCT :
2700-6500K
Driver Brand :
MEANWELL HLG
N.W :
26KG
Warranty :
5-Year
IP Rating（IP） :
IP65,ip66
PF :
>0.95
Operating Temperature :
-40℃~+50℃
Description

800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light led. stadium floods 110V

Why LED Stadium Lights?

Stadium lights are a very crucial part of any stadium and other outdoor sports venues.

These spaces host a variety of events which include sports, flea markets, concerts, and outdoor games. Having bright stadium lights is an absolute necessity as they not only provide sufficient lighting for sportspersons and other people on the field,

they also allow spectators and visitors to move in and out of the venue easily and safely.

When LED stadium lights are installed in a stadium that lacks a good source of illumination,

they allow for more events to take place in the space.

They increase the versatility and usefulness of an outdoor sports venue and provide a lot of value to the operators and owners of the venue.

Main specs

ZL-SPM-800W-LED High Mast LED Light Quick Summar
Lamp Type: SMD3030 LED 1500 Watt Metal Halide Replacement
Dimensions: L629xW536xH160 Ambient Op Temp -40C to +80C
Weight: 26KG Ideal for Light Towers & LED Retrofits
Total Watts: 800W 98% Transmission High Purity PMMA Optics
Total Lumens: 112000LM Multiple LED Banks for Heat Dispersion
Luminous Efficiency: 135-140lm/w 135-140 Lumens Per Watt Efficiency
Beam Configurations: 10° Spot, 25° Wide Spot, 45° Narrow Flood, 60° Flood, or 90° Wide Flood 70% Lumen Retention after 80,000 Hours
LED Color Temperature: Cool White - 5500-6500K UL1012 Compliant
LED Life Expectancy: 50,000 hours UL60950-1 Compliant
Optics Efficiency: 98% - PMMA High Transmittance Optics CE Certified
Led Drive %: 90% RoHS Compliant
Voltage: 110-277V AC 50/60 Hz IP66 Rated Waterproof
Amp Draw: 6.25A @ 120V, 2.71A @ 277V Wiring: 2.5` Pigtail w/ Flying Leads
Materials: Die Cast Aluminum Housing, PMMA Optics Housing Color: Natural Aluminum
Mounting: Flat Surface Trunnion Mount U-Bracket Waterproof Rating: IP66
Ambient Temperature Range: -40°C to +80°C Special Orders- Requirements
Warranty: Yes -5 Years Contact us for special requirements


Write to us NOW for more details and data sheets, IES, pictures, prices for high mast lights led.
email: sales@zloneled.com

Installation of high mast lights/ stadium light 400watt

800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light

Eplosive picture of 800Watts

800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light


800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light
More watts/models available for outdoor high mast, high pole lights800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light

Power

LED

Brand

 Driver Brand Lumen Specification Beam Angle N.W &
Product Size(mm)
400W 3030 - 560pcs

Meanwell HLG/

Sosen Driver

 56000LM

PF: >0.95
CRI:>Ra70

(optional Ra80)
CCT: 2700-6500K
Material:
1070 Cold Forging Alu+Lens
5-Year Warranty

 25°/45°/60°/90°
( 10° optional with CREE LEDs)		 N.W: 15KG
L325xW472xH160
500W

Meanwell HLG/

Sosen Driver

 70000LM
800W 3030 - 1120pcs

Meanwell HLG/

Sosen Driver

 112000LM N.W: 26KG
L629xW536xH160
1000W

Meanwell HLG/

Sosen Driver

 140000LM
1200W 3030 - 1680pcs

Meanwell HLG/

Sosen Driver

 168000LM N.W: 37KG
L890xW536xH160
1500W

Meanwell HLG/

Sosen Driver

 210000LM

Packing details:800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light

Application of stadium lights, high mast light, led tower lights:

High Mast floodlights are broad-beamed, high-intensity artificial lights. They are often used to illuminate outdoor playing fields while an outdoor sports event is being held during low-light conditions. More focused kinds are often used as a stage lighting instrument in live performances such as concerts and plays.

800W led stadium floodlights, IP66 high tower lights, outdoor lighting tower 800watt,140lm/w 220V 120V high pole light

Key words:

1000w stadium lights led
1500w stadium led lights
1200w stadium flood lights
1200w ip65 stadium
600watt stadium light
600w stadium light led
LED STADIUM LIGHT
STADIUM LIGHTS LED
400W Stadium lights LED
soccer stadium lights led
outdoor soccer stadium light
outdoor waterproof stadium led
dimmable led stadium lights
floodlights LED stadium
Dimmable stadium LED Lights
led stadium light 1000W
led stadium lights 800watt
1000watt stadium light LED

800watt dimmable high tower light
