Specifications
Brand Name :
ZLONE
Model Number :
ZL-TLPM-250W
Certification :
CE, ROHS, TUV,UL,ETL,DLC, SAA,
Place of Origin :
CHINA
MOQ :
1pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/weeks
Delivery Time :
2-3days
Packaging Details :
Export Cantons
Lamp Power :
250W
Input Voltage :
AC85-277V
Power Factor :
0.95
Operating Temperature :
-40℃~+50℃
Warranty :
5 Years
IP Rate :
IP65
Lamp efficiency :
140lm/w
Material :
6063 Aluminum
Beam Angles :
15/30/ 45/60/90° 49*21°/70°*30°/140°*80
N.W :
6.5KG
Lumenius Flux :
35000LM
Modules :
5modules
Color :
Black/ Gray
Description
250W 110V,220V outdoor IP65 Tunnel Lights, Tunnel lamp fixture high PF, 140lm/w 5-year warranty IP66. highway tunnel lighting.

LED Tunnel Lights. With a high level of brightness and uniformity ensuring the safety and security of road tunnel users. LED light reduces cost of your electricity bill up to 70%. It is compatible to user-friendly control and instant turn on and off. We offer cost-effective & High Quality 50 watts to 600 watts LED. They can retrofit your old MH or HPS luminaries.

Strengths of the LED tunnel lights

LED tunnel lights has been more common in roadway illumination. Many of the LED lights for roadway tunnel can replace the old Metal Halide or High-intensity Discharge lamps. It is because they have exclusive strengths and advantages over the conventional luminaries. For instance, 4 to 5 times more life span, 60% brighter and 70% energy saving. It is worthwhile to replace fluorescent, HPS or halogen tunnel lamps with LED. It is preferred by majority of electrical contractors to select LED because of the above advantages. The new era of hybrid and electric car increases the traffic demand on roads. And thus reliable, long-lasting luminaries are essential nowadays. Image that it is very undesirable to repair and maintain the luminaries inside subways.

Main details of tunnel lighting fixtures 250Watt

Product Name: Tunnel light 250Watt
Model: ZL-TLPM-250W
LED Quantity: 420pcs
Power 250W
Input Voltage: AC85-277V
Frequency Range 50/60Hz
Power Factor: >0.95
Power Efficiency: ≥90%
LED Luminous Efficiency: 130-140lm/w 35000lm
Light output ratio: >90%
Color Temperature: 2700-6500K all available
Color Rendring Index: >80
Junction Temperature: <70°C
Working Environment: -40-+50°C
Storage Temperature: -35 ~ 80 degrees
Relative humidity: 10%~90%
Protection Grade: IP65
Lifespan: 50000hrs
Body & Lampshade Material: 6030 Aluminum +Lens
Housing Color Gray/Black
Beam Angle

15/30/ 45/60/90° 49*21°/70°*30°/140°*80

Warranty 5years
Modules 5
Certificates CE,RoHS

Outdoor IP65 LED Tunnel Light 250W 110V 220V Highway Lamp Fixture High PF

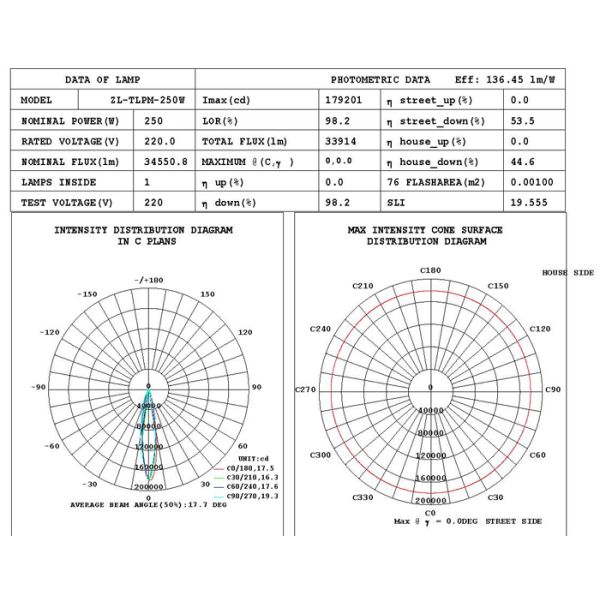

250W tunnel lights IES test report:

Outdoor IP65 LED Tunnel Light 250W 110V 220V Highway Lamp Fixture High PF

TUNNEL LIGHTS Installation:

Outdoor IP65 LED Tunnel Light 250W 110V 220V Highway Lamp Fixture High PF

Write to us NOW for more details and data sheets, IES, pictures, prices for 100W tunnel lights.

email: sales@zloneled.com

More watts/models available for Tunnel Roadway Lighting

Outdoor IP65 LED Tunnel Light 250W 110V 220V Highway Lamp Fixture High PF

Power LED Brand Driver Brand Lumen Specification Beam Angle N.W &
Product Size(mm)
50W Lumileds /
Epistar 3030 - 84pcs
Meanwell HLG/ Sosen Driver 6500-7000LM PF: >0.95
CRI:>80
CCT: 2700-6500K
Material:
6063 Alu+Lens
IP65
5-Year Warranty

15°/30°/ 45°/60°/90°
49*21°/

70°*30°/

140°*80

N.W:2.3KG
L310xW87xH170
100W Lumileds /
Epistar 3030 - 168pcs
Meanwell HLG/ Sosen Driver 13000-14000LM N.W:3.6KG
L310xW87xH228
150W Lumileds /
Epistar 3030 - 252pcs
Meanwell HLG/ Sosen Driver 19500-21000LM N.W:4.5KG
L310xW87xH309
200W Lumileds /
Epistar 3030 - 336pcs
Meanwell HLG/ Sosen Driver 26000-28000LM N.W:5.5KG
L310xW87xH459
250W Lumileds /
Epistar 3030 - 420pcs
Meanwell HLG/ Sosen Driver 32500-35000LM N.W: 6.5KG
L310xW87xH459
300W Lumileds /
Epistar 3030 - 504pcs
Meanwell HLG/ Sosen Driver 39000-42000LM N.W: 8KG
L310xW87xH539
400W Lumileds /
Epistar 3030 - 672pcs
Meanwell HLG/ Sosen Driver 52000-56000LM N.W: 11KG
L571xW107xH388
500W Lumileds /
Epistar 3030 - 840pcs
Meanwell HLG/ Sosen Driver 65000-70000LM N.W: 12KG
L571xW107xH461
600W Lumileds /
Epistar 3030 -1008pcs
Meanwell HLG/ Sosen Driver 78000-84000LM N.W: 14KG
L571xW107xH529
