60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year
60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year
60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year
60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year
Specifications
Brand Name :
ZLONE
Model Number :
ZL-STL03- 60W
Certification :
CE/ROHS/FCC/SGS/TUV
Place of Origin :
China,shenzhen factory
MOQ :
1
Price :
USD55.0-215.0/PC
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS/week
Delivery Time :
5-7 working days
Power :
60Watts
LED Brand :
SMD 3030
LEDs Qty :
54pcs
Material :
1060 Aluminum + PC Lens
Input Voltage :
AC90-260V 50/60Hz
Lumenius Flux :
6800-7200lm
Lamp Efficiency :
120lm/w
IP Rating :
IP65,IP66
Beam Angle :
70*140°
Installation Diameter :
60mm/40mm optional
Resist Lightning surge voltage :
4KV,10KV
CCT :
2700-6500K
CRI :
>70Ra,80Ra
Lamp Size :
432*160*90 mm
Warranty :
5-Year
Driver Brand :
Meanwell or TUV certificated
Description

60w led roadway light, led street lights 60watt, 3000K, 6000K Roadway light, 120lm/,

ip65 outdoor roadway lighting led, led 3030, meanwell driver

Minimalist&Toughness Design

Minimalist&toughness design ideas bring modern visual effect, angular appearance for lamp,

with light weight,saving cost for installation & shipping.

Grain Drying Process & Baking Paint Powder

The lamp surface treatment with grain drying process & baking paint powder,

enforce the anti-corrosion&surface strength ability.

Meanwhile improve better quality sense,creative design,elegant appearance.

60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year

60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year

Optimization of The Cooling Air Duct

Both sides for street light is not closed completely, separately keep holes to generate air duct,

make better heat dissipation through air duct; Further to improve the best heat dissipation effect,

fixture is designed by a row of air vent.

60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year

Product parameter:ZL-STL03-60W

Model & Power ZL-STL03-60W 60Watt
Input Voltage AC 90-260V
Frequency Range 50/60HZ
Power Factor >0.95
Driver Brand Meanwell/TUV
LED Quantity 54pcs SMD 3030
LED Consumption 60W
Beam Angle 70*140°
Luminous Efficiency 120-130LM/W
Luminous 6800-7200lm
Color Temperature Warm white (WW) 2800-3000K/3000-3200K
Natural white (NW) 3500-4500K
Pure white (PW) 5500-6500K
Color Rendering Index WW Ra>75
NW / PW Ra>80
Working Temperature -30℃ - +50℃
Resist Lightning surge voltage 4KV(without surge protective Device)
10KV(with surge protective Device)
IP Grade IP65,IP66
LED working Life-span >50,000H

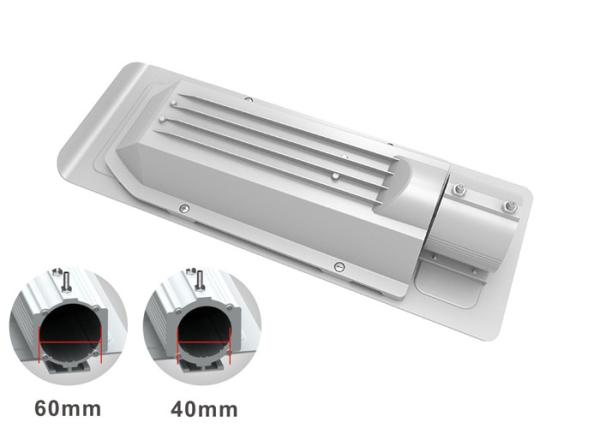

Installation Diameter 60mm/40mm optional
Certificates CE, RoHS, PSE

Product Profile Chart:

60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year

More wattages for option

60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year

Electric Data
Model

ZL-STL03-

30W

ZL-STL03-

40W

ZL-STL03-

60W

ZL-STL03-

80W

ZL-STL03-

120W

ZL-STL03-

150W
Power 30W 40W 60W 80W 120W 150W
Input Voltage AC 90-277V 50/60Hz
Photometric Specifications
LED Brand SMD LED 3030
Driver Brand Meanwell Driver
CRI >80
CCT 2700-6500K
PF >0.95
Beam Angle 70*140°
Luminous Efficiency 120lm/w

Luminous

Flux

 3400-3600lm 4600-4800lm 6800-7200lm 9000-9600lm

12800-14400

lm

16800-18000

lm
LEDs Qty. 24pcs 36pcs 54pcs 77pcs 112pcs 144pcs
Mechanical Specifications
IP Rate IP65
Working Environment -40℃~50℃,20%~90% H.R
Storage Temperature -40℃~85℃,10%~90% H.R.
Body Material Aluminum + AL PCB
Lens Material PC
Dimmable (optional)

0-10V, 1-10V dimmable

Daylight Sensor/ Microwave motion sensor
Installation Diameter 60mm/40mm optional
Resist Lightning surge voltage

4KV(without surge protective Device)

10KV(with surge protective Device)
N.W. 1.85KG 2KG 2.9KG 2.7KG 4.5KG 5.8KG
Lamp Size

366*135*85

mm

366*135*90

mm

432*160*90

mm

432*160*90

mm

632*215*90

mm

632*215*90

mm
Lifespan >50,000 Hours (Ta=30℃@L70)
Warranty 5-Year

Application:

  • Urban roads and highways

  • Parking area

  • Residential or insturial fields

  • Parks and commerical areas

60w led roadway light,high lumen CCT: 3000K, 6000K Roadway light led, 120lm/, ip65 outdoor roadway lighting led 5-year
