Specifications
Brand Name :
GuangDa
Model Number :
EBF205(long)
Place of Origin :
Shenzhen, China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
1000pcs/day
Delivery Time :
25 work days
Packaging Details :
1pc/box
Operation Voltage :
AC220V
size :
2x4
model :
EBF205(long)
Protection level :
IP65
Power :
48W
Service life :
100000h
Color temperature :
2700-6500K
Weight :
3Kg
Description

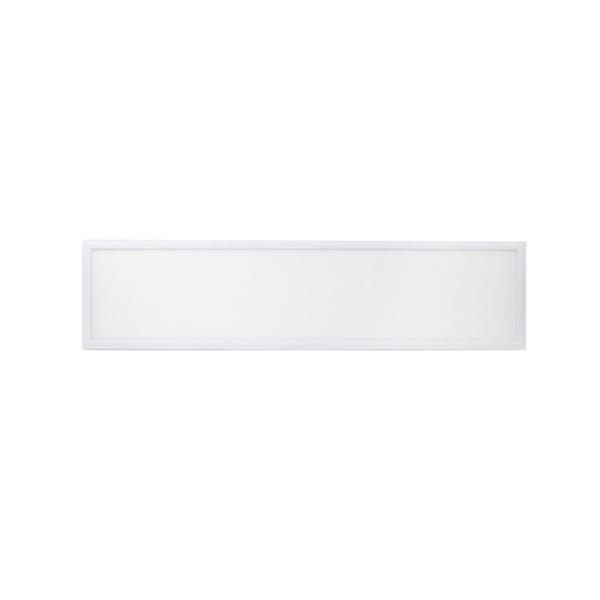

72W Commercial Electric LED Color Changing Flat Panel 2x4 Thermostable

Ce / UL 48W / 72W Commercial Office LED Ceiling Panel Wall Light

This LED Flat Panel in an ideal replacement for traditional fluorescent grille fixture And is ideal for ceiling lighting, with a long lifespan of 100,000hrs.Slim,elegant And ultra-slim design enhance office's concision, enlarging a sense of space. The lamp is designed blending in with ceiling.The light is hidden in it.It seems Like your ceiling is shinning and brightening the office, shopping mall, hotel lobby....
The panels can be recessed into ceilings, and can be surface mounted according to your space needs.

Light source LED
Rated voltage AC220V
Working frequency 50HZ
Voltage range AC 180~240V
Rated power 18W/24W/36W/48W/72W
Power factor PF 0.97
Light efficiency 100lm/w
Color rendering index ≥80
Color temperature 5000±280K
Luminous attenuation 60000h Luminous flux≥80%
Average life ≥30000h
Protection grade IP65
Environment temperature -40~50℃
Lamp efficiency 85%
Size 1220×120×65mm/595×595×10mm/295×295×10mm

User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box

Performance characteristics:
◆ It adopts high-power solid-state maintenance-free LED light source imported from the top brand from the United States, with high luminous efficiency and a long life of 100,000 hours, which truly meets the requirements of green environmental protection.
◆ The design of separate type, compartment type and multiple radiating ribs fundamentally solves the problem of heat dissipation and light attenuation of the light source.
◆ Using advanced lighting optics optimization design principles, using a unique large-angle condensing optical lens, the illumination range is large and uniform, the light is soft, and there is no glare.
◆ The surface is treated with anti-static spray plastic, which has good abrasion resistance and high corrosion resistance.
◆ The transparent parts are made of high-quality high borosilicate fully tempered glass, which has strong impact resistance and high light transmittance.
◆ The seals are made of high-quality anti-aging, high-temperature resistant silicon rubber, and the enclosure protection grade is IP65, which is dust and moisture-proof.
◆ Customers can choose AC and DC voltage 24V or 36V, or AC 220V to drive the lamp according to their needs to meet the needs of different customers and different voltages.
