High Efficiency 80 Watt IP65 Protection Exterior LED Wall Pack Outdoor
High Efficiency 80 Watt IP65 Protection Exterior LED Wall Pack Outdoor
High Efficiency 80 Watt IP65 Protection Exterior LED Wall Pack Outdoor
High Efficiency 80 Watt IP65 Protection Exterior LED Wall Pack Outdoor
High Efficiency 80 Watt IP65 Protection Exterior LED Wall Pack Outdoor
High Efficiency 80 Watt IP65 Protection Exterior LED Wall Pack Outdoor
Specifications
Brand Name :
FYTLED
Model Number :
WP2
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
10
Price :
$30-63/pcs
Delivery Time :
5-10 working days
Packaging Details :
1pcs/CTN
Material :
Massive aluminum
Color :
Brown
Application :
Outdoor wall-mount applications
Size :
9.18"X9.22"X7.43" , 11.11"X10.75"X7.82"
Wattage :
30W, 40W, 40W, 80W, 100W, 120W
Light Source :
SMD3030
CCT :
3000K-6000K
IP Rating :
IP65
Description
30W-120W Wall Pack Light with 5 years warranty

The new improved FYTLED Wall Pack Light is built for building facade, commercial, industrial, retail, and hospitality buildings that demand long service life and low maintenance.It is convenient to install and wire. The housing is sealed with an industrial great silicon seal to assure a dust and water proof IP65 rating. To increase the power savings an optional photocell sensor can be provided. The internal driver is well protected against all weather conditions and can be easily accessed for maintenance purposes.

Features
Very High efficiency - up to 160lm/w
Very high Luminous flux- up to 18000lm
Flicker free drivers for models above 50W
Easy and convenient installation
Clip-on structure, easy maintance for driver
Durable die-cast aluminum housing
UV-resistant PC Optics
TYPE3/TYPE4/TYPE5 optical distribution (more optical lens options upon request)
IP65 high grade waterproof protection

Options
Optional PHOTOCELL and Daylight PHOTOCONTROLLER
Microwave motion sensor option
CRI 80 Ra available
IP66 protection upon request
Area of application
Industrial and commercial us
Specifications
General Information Product Type LED Wall Pack Light
Product Size 9.18"X9.22"X7.43", 11.11"X10.75"X7.82"
Product Color Bronze, or custom
Electric parameter Input Voltage AC100-277V & AC277-480V /50-60Hz
Power 30W,40W,60W, 80W, 100W, 120W
PF >0.9
Driver Brand Tomcarline/Meanwell or other famious brand
Optical Parameter LED EMC3030
CRI >70,or 80 options
Color Tempearture (CCT) 3000-6000K
Luminous Efficiency 160lm/w
Beam angle TYPE3 / TYPE5
Standards & Certification Type of protection IP65
Tested dielectric strength 3.75KVac
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Certificates CE, RoHS, UL
Energy efficiency class A+ & A++
Temperatures & operating conditions Heatsink temperature 5~+70℃
Ambient temperature -30~+55℃
Storage temperature -40~+80℃
Others Lifetime 50,000Hr
Warranty 5 years
Materials AL housing+PC lens +AL board
Application Outdoor wall-mount applications:
building facade, commercial, industrial, retail,
hospitality buildings that demand long service life and low maintenance

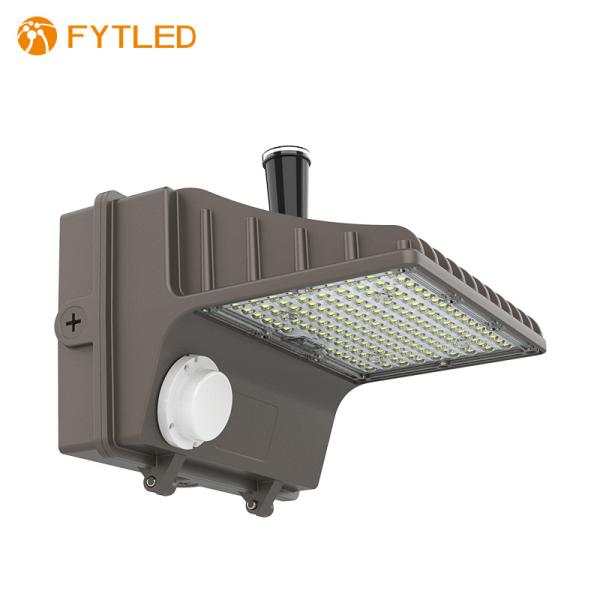

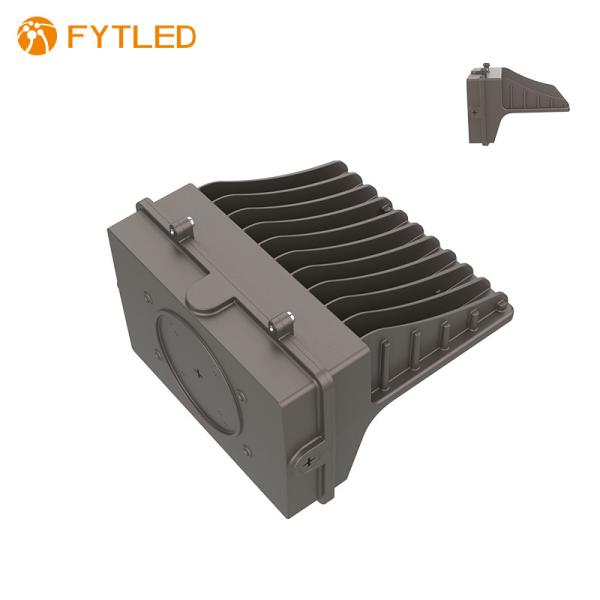

Picture:

High Efficiency 80 Watt IP65 Protection Exterior LED Wall Pack Outdoor

FAQ

FAQ:
1. Delivery Time:
Normal 15 days after order confirming. Some items maybe more faster
2. Payment Terms:
T/T 30% deposit after order confirmed, the balance after goods ready
3. OEM :
OEM Service is available.
4. Shipping Ways:
By Express: DHL, UPS, EMS, TNT, etc.
By Air: Please let us know the airport.
By Sea : Please let us know the seaport.
UPS, FEDEX, EMS etc
