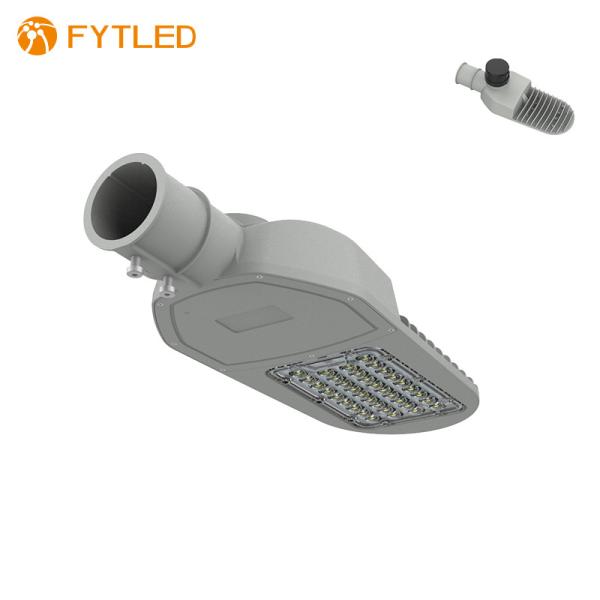

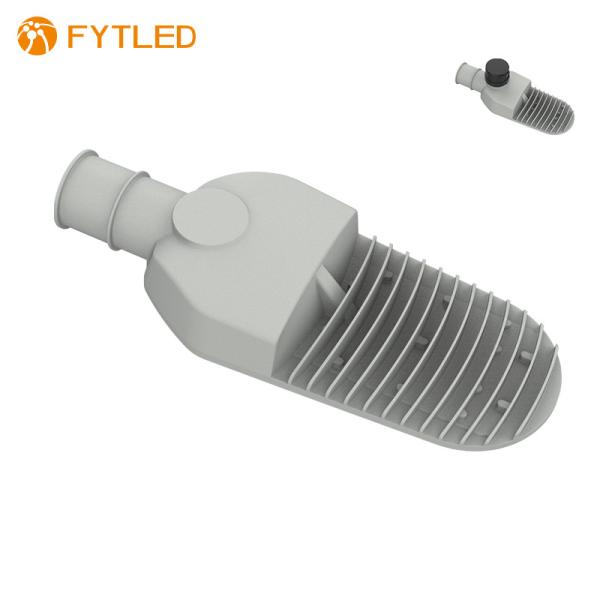

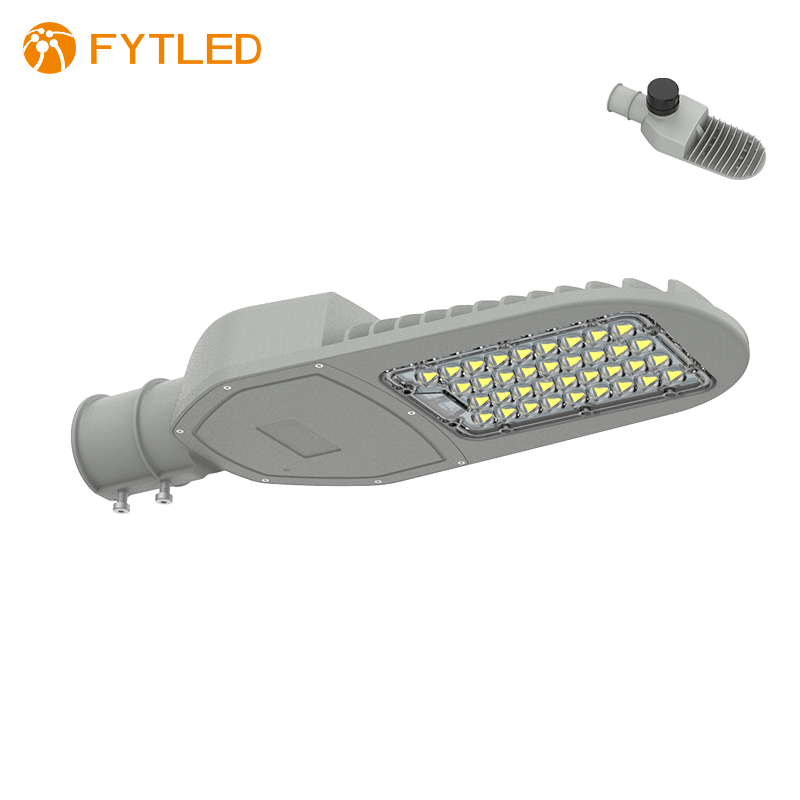

Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System
Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System
Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System
Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System
Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System
Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System
Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System
Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System
Specifications
Brand Name :
FYTLED
Model Number :
T63
Certification :
CE ROHS
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS per month
Delivery Time :
15-20 working days
Packaging Details :
1pcs/carton
Color :
Grey
Material :
Aluminum
Available light colors :
warm white;natural white; daylight white
Available beam angles :
TYPE2-S， TYPE3-M
Color rendering index Ra :
70
Dimmable :
1-10V dimmable, DALI dimmable
Power factor λ :
>0.9
Rated nominal Lifetime :
50,000hours
Ambient temperature :
30~+50℃
Type of current :
AC100-277V
Description

LED road lighting solution 20W T2 degree CE RoHS 150lm/w 5050 led chips

The Easyway T63 LED street light offers an affordable LED road lighting solution to the customer for both pedestrian and vehicle road applications.With 5W EMC 5050 led chips, it reaches 150lm/w for the system efficiency and helps the customer to save more energy. Its die-cast aluminum housing and high quality Tomcarline power driver ensures long lifetime and reliability.

Features:

  • 150-165lm/w(5W EMC 5050 led chips)
  • IP65 and IK10 protection grade
  • Excellent thermal management ensures long system lifetime
  • PC lens
  • Level metre as standard
  • The back is shallow, and it won not hide bird droppings or leaf
  • 5 years warranty

Options
  • 10KV surge protection
  • 1-10V dimmable driver
  • Photocell
Area of application
  • Road and street

Basic Specifications

Standard lumen (150lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T63-20W 20W AC100~277V
50~60Hz		 150±10 3300±200 TYPE2-S 20 PCS
5W EMC 5050		 >70
T63-30W 30W 150±10 4500±300 20 PCS
5W EMC 5050
T63-40W 40W 150±10 6000±400 20 PCS
5W EMC 5050
T63-50W 50W 150±10 7500±500 20 PCS
5W EMC 5050
T63-60W 60W 150±10 9600±600 TYPE3-M 20 PCS
5W EMC 5050
T63-80W 80W 150±10 12800±800 36 PCS
5W EMC 5050
T63-100W 100W 150±10 15500±800 36 PCS
5W EMC 5050
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92%
Standard deviation of color
matching
 <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles TYPE2-S, TYPE3-M
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+50℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection		 Storage temperature -40~+80℃
Certificates CE,ROHS
Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50.000 hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension(MM) CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
T63-20W/30W/
40W/50W/60W		 425*163*75 46.5*40.5*28 4PCS 9.6 11.5
T63-80W/100W 500*203.6*71 54*48.5*28 4PCS 13.2 15.7

Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System

Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System

Aluminum 20W 150lm/W IP65 Street Lights , Road Lighting System

FAQ:
1. Delivery Time:
Normal 15 days after order confirming. Some items maybe more faster
2. Payment Terms:
T/T 30% deposit after order confirmed, the balance after goods ready
3. OEM :
OEM Service is available.
4. Shipping Ways:
By Express: DHL, UPS, EMS, TNT, etc.
By Air: Please let us know the airport.
By Sea : Please let us know the seaport.
UPS, FEDEX, EMS etc
