Corrosion Resistant IP66 Waterproof 240W LED Street Light System Grey
Corrosion Resistant IP66 Waterproof 240W LED Street Light System Grey
Corrosion Resistant IP66 Waterproof 240W LED Street Light System Grey
Corrosion Resistant IP66 Waterproof 240W LED Street Light System Grey
Corrosion Resistant IP66 Waterproof 240W LED Street Light System Grey
Corrosion Resistant IP66 Waterproof 240W LED Street Light System Grey
Specifications
Brand Name :
FYTLED
Model Number :
T68B-240W
Certification :
ENEC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
20-25 working days
Packaging Details :
1pcs/carton
Color :
Grey
Warranty :
5 years
Material :
Aluminum
Wattage :
240W
Description

240W street light ENEC IP66 tool-free access to maintenance

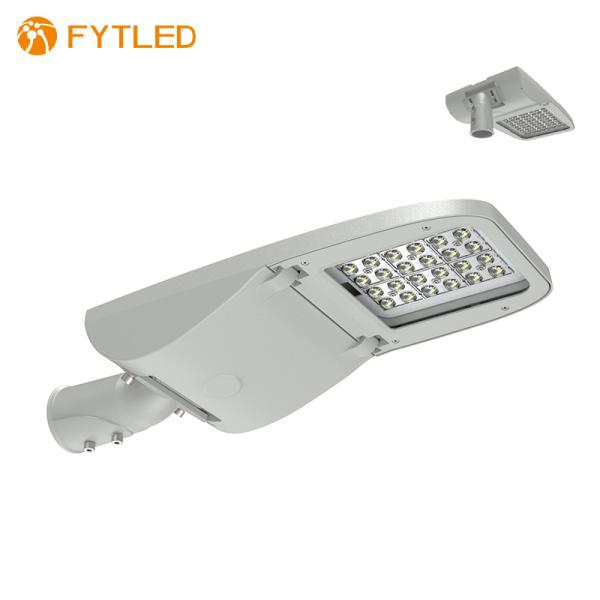

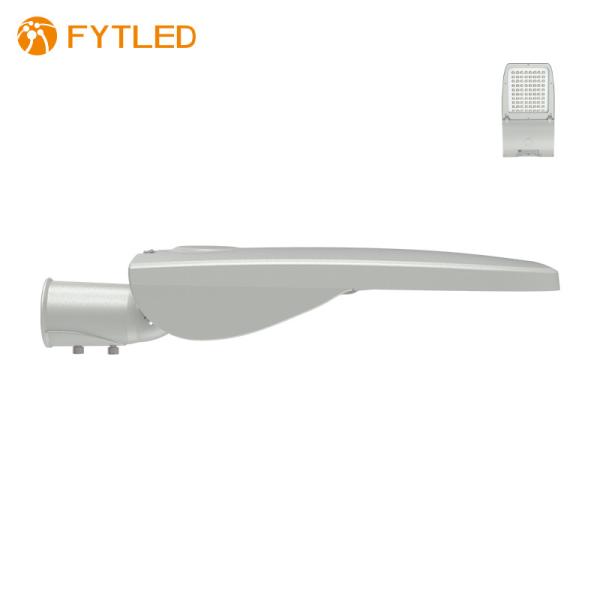

The Nero Pro T68B street light is cost-effective solution for street and road lighting. The power ranges from 30W to 240W with tool-free access design to the driver compartment for easy maintenance. High lumen efficiency reaching 140lm/W helps to spare the energy consumption. Common beam angles T2-S and T3-M are available for double carriage ways and triple carriage ways.

Product features
  • Tool-free access to the independent driver compartment for maintenance(i.e. driver replacement)
  • Each 5° to maximum ±15° adjustable installation angle for different light distribution demands
  • IP66 waterproof performance
  • Cost effective solution to afford various projects
  • 5 years warranty
  • Lumen efficiency arriving Up to140lm/W

Options
  • 10KV/20KV surge protection device(SPD)
  • Electrical disconnector(power will be cut off automatically to ensure the safety of the technician under maintenance work)
  • Corrosion-resistant coating brand "AkzoNobel"(for seashore project)
  • Class II luminare
  • 3pin, 5pin, 7pin NEMA base
  • Microwave motion sensor, photocell daylight sensor and photocontroller
  • 1-10V dimmable and DALI dimmable
  • Level meter
Area of application
  • Road and street

Basic Specifications

Model Nominal Wattages (W) Nominal Voltage Rated luminous efficacy(lm/w) Nominal luminous flux(lumen) Beam Angle LED Quantity CRI
T68B-30W 30W AC100-277V 50~60Hz 140±10 4200±300 T2-S
T3-M		 12pcs 5W EMC5050 >70
T68B-40W 40W 5600±400 12pcs 5W EMC5051
T68B-50W 50W 7000±500 12pcs 5W EMC5052
T68B-60W 60W 8400±600 24pcs 5W EMC5050
T68B-80W 80W 11200±800 24pcs 5W EMC5050
T68B-100W 100W 14000±1000 36pcs 5W EMC5050
T68B-120W 120W 16800±1200 48pcs 5W EMC5050
T68B-150W 150W 21000±1500 48pcs 5W EMC5050
T68B-180W 180W 25200±1800 80pcs 5W EMC5050
T68B-240W 240W 33600±2400 80pcs 5W EMC5050

Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white; natural white; cold white
Type of current AC100-277V Available color temperatures 3000K; 4000K; 5000K; 6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92%

Standards & Certification Temperatures & operating conditions
Type of protection IP66 Heatsink temperature -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+50℃
Safety features Open circuit protection; Storage temperature -40~+80℃
Short circuit protection ;
Overvoltage protection
Certificates ENEC, CB, CE, RoHS, SAA, RCM

Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 5 years Base/Socket 42 60 76
Switching cycles 100,000 times

Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight/CTN(kg)
T68B-240W 680*320*125MM 80*39*22 1PCS 14.8 16.7

Corrosion Resistant IP66 Waterproof 240W LED Street Light System Grey

Why choose us?

1. Warranty: most items enjoy 5 years warranty, some reach 10 years warranty.

2. R&D team: 20 qualified engineers to support product development(3 to 5 new arrivals quarterly) and ODM.

3. Qualifications: ISO9001 and ISO14001; China Hi-tech enterprise(over 40 patents achieved).

4. Factories: ① FYT LED for LED lights; ② Tomcarline for LED power driver; ③ JYT for aluminum heatsink.

5. MOQ: ≥1pc
