Specifications
Brand Name :
FYTLED
Model Number :
T68-150W
Certification :
ENEC, CE, RoHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
20-25 working days
Packaging Details :
1pcs/carton
Color :
Grey
Warranty :
5 years
Material :
Aluminum
Wattage :
150W
Description

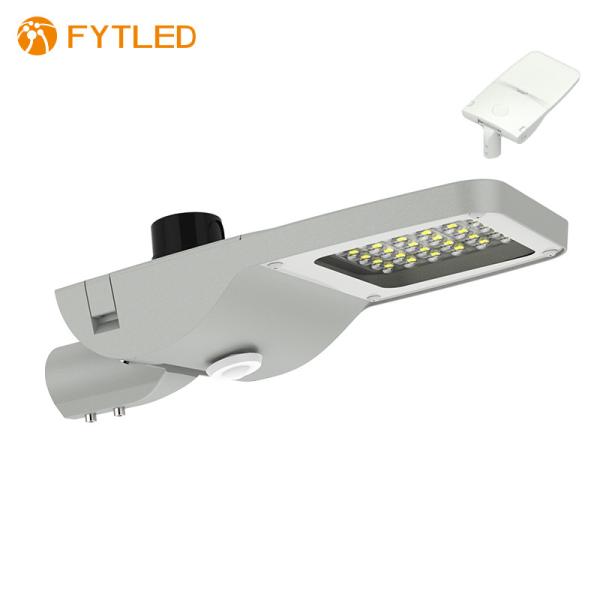

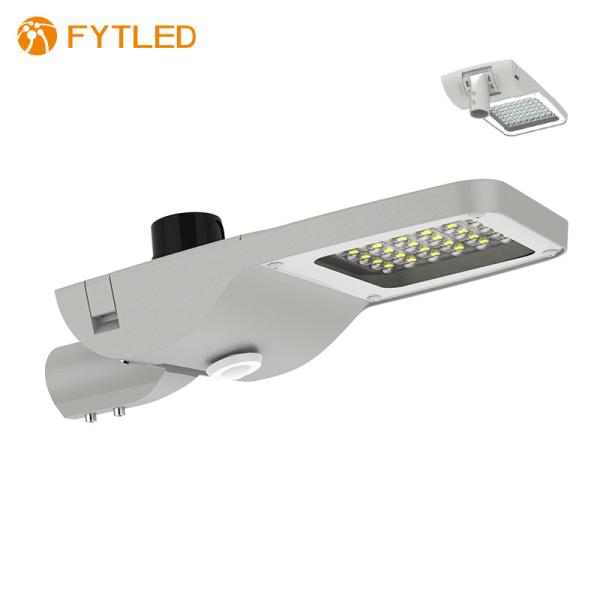

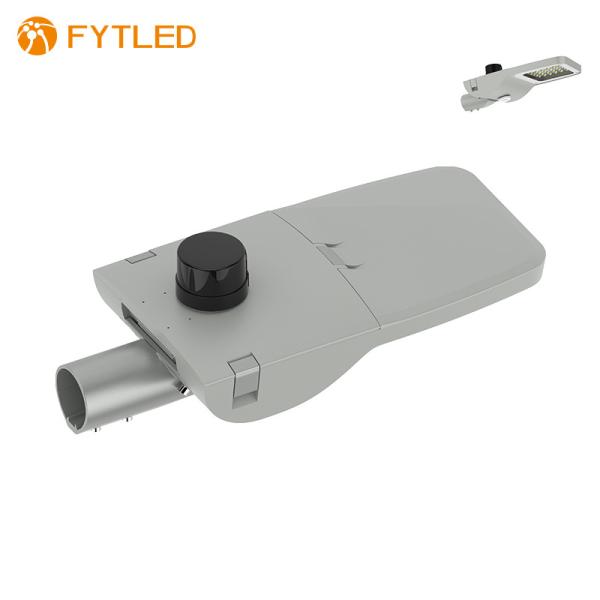

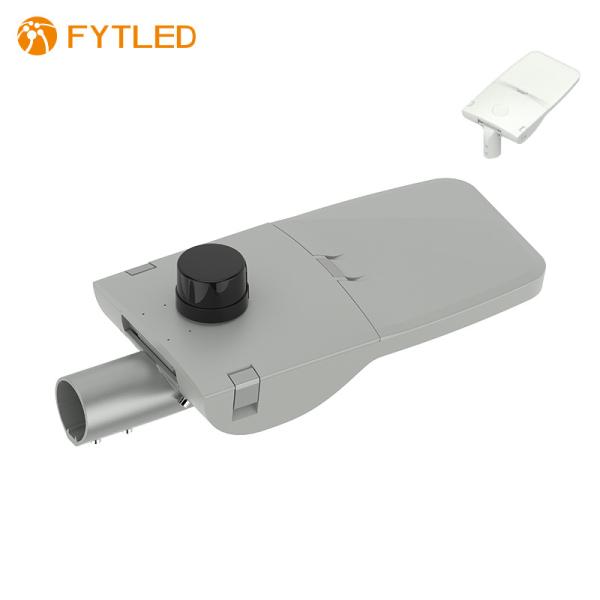

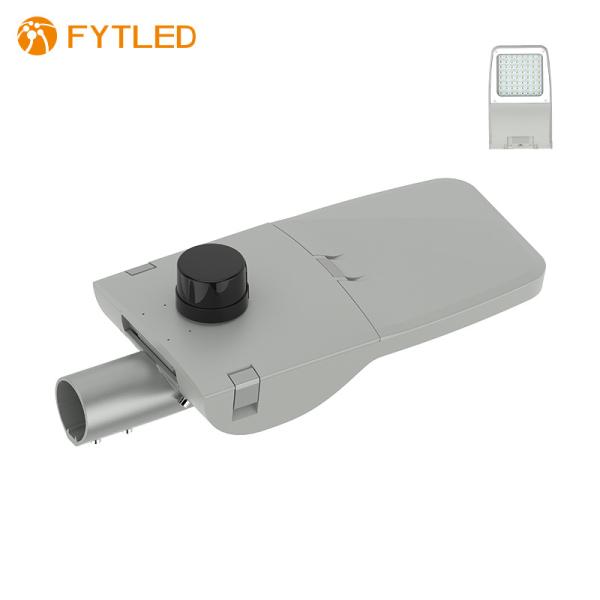

ENEC IP66 Nero street light 150W

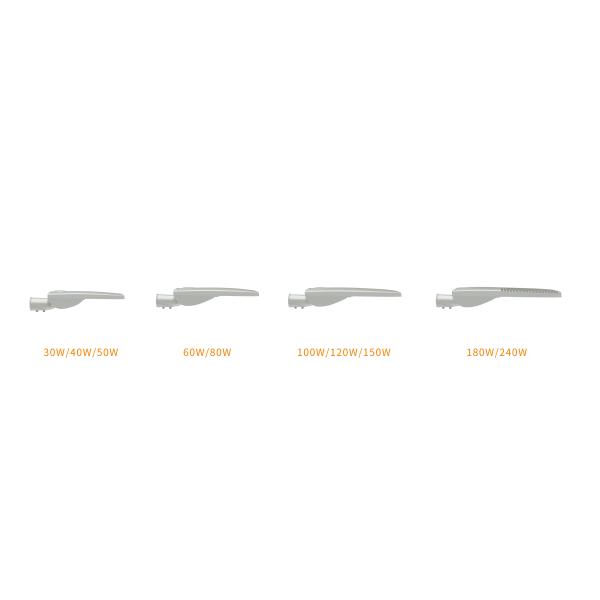

The Nero T68 street light is an ideal solution for road and street lighting. It ranges from 30W to 150W and offers common beam angles for double carriage ways and triple carriage ways. The waterproof performance is IP66 approved for outdoor applications. Most importantly, the maintenance flap design allows quick access to the driver compartment for easy maintenance.

Highlights:

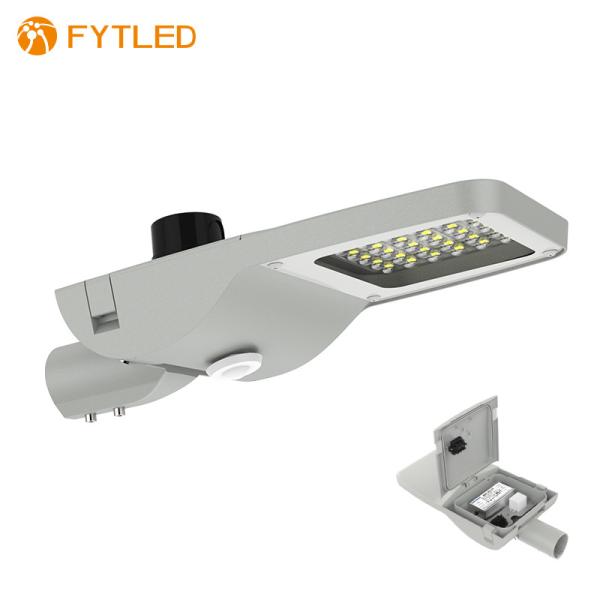

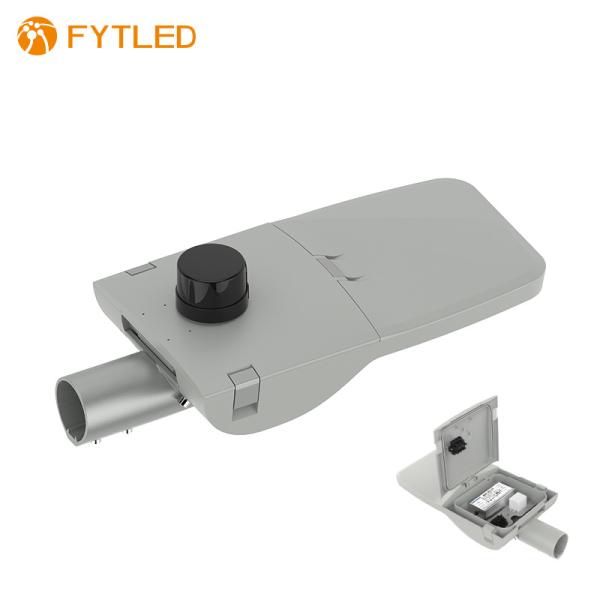

  • Quick snap lock for fast and convenient access to the driver compartment for easy maintenance e.g. driver replacement
  • ±15° installation angle adjustment(each 5° to max. ±15°) for different light distribution
  • IP66 approved for outdoor lighting
  • Dust-free thanks to sleek surface
  • 5 years warranty
  • Lumen efficiency up to 140lm/W

Options
  • 20KV surge protection device(SPD, 10KV is default)
  • Curcuit interrupter(When lamp is opened for maintenance, the power will be cut off automatically to ensure the safety of the technician)
  • Coating/painting brand "AkzoNobel"(for seashore project)
  • Class II luminare
  • 3pin, 5pin, 7pin NEMA base
  • Microwave motion sensor
  • Photocell daylight sensor and photocontroller
  • 1-10V dimmable and DALI dimmable
Area of application
  • Road and street

Basic Specifications
Model Nominal Wattages (W) Nominal Voltage Rated luminous efficacy(lm/w) Nominal luminous flux(lumen) Beam Angle LED Quantity CRI
T68-30W 30W AC100-277V 50~60Hz 140±10 4200±300 T2-S
T3-M		 16pcs 5W EMC5050 >70
T68-40W 40W 5600±400 16pcs 5W EMC5050
T68-50W 50W 7000±500 16pcs 5W EMC5050
T68-60W 60W 8400±600 36pcs 5W EMC5050
T68-80W 80W 11200±800 36pcs 5W EMC5050
T68-100W 100W 14000±1000 48pcs 5W EMC5050
T68-120W 120W 16800±1200 48pcs 5W EMC5050
T68-150W 150W 21000±1500 64pcs 5W EMC5050

Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white; natural white; cold white
Type of current AC100-277V Available color temperatures 3000K; 4000K; 5000K; 6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles TYPE2-S, TYPE3-M

Standards & Certification Temperatures & operating conditions
Type of protection IP66 Heatsink temperature -20~+69℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+40℃
Safety features Open circuit protection Storage temperature -40~+80℃
Short circuit protection
Overvoltage protection
Certificates ENEC, CB, CE, RoHS, SAA, RCM
Energy efficiency class A++

Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 100.000 hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable
Lumen maintenance at e.o.l. 80% Warranty 5 years

Packing Information
Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight/CTN(kg)
T68-150W 608*300*105MM 72*39.5*22.5 1PCS 8.4 9.4

Dimmable Industrial 150W 140lm/W IP66 Street Lights , Nero Light


FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America. Our products have key license CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your demands.

2.Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1pcs.

3.Q: How long is the sample production time?

A: About 10-15 days.

4.Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) 100%

2) 30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5.Q:How long is the delivery time?

A: About 4-5 weeks for qty<200 and 6-8 weeks for 200<qty<500
