Grey 150lm/W 30 Watt IP65 Street Lights With Daylight Sensor
Grey 150lm/W 30 Watt IP65 Street Lights With Daylight Sensor
Grey 150lm/W 30 Watt IP65 Street Lights With Daylight Sensor
Grey 150lm/W 30 Watt IP65 Street Lights With Daylight Sensor
Grey 150lm/W 30 Watt IP65 Street Lights With Daylight Sensor
Grey 150lm/W 30 Watt IP65 Street Lights With Daylight Sensor
Specifications
Brand Name :
FYTLED
Model Number :
T63
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS per month
Delivery Time :
12-15 working days
Packaging Details :
1pcs/carton
Color :
Grey
Warranty :
5 year
Material :
Aluminum
Wattage :
20W-100W
Application :
Road and street
Available light colors :
warm white;natural white; daylight white
Available beam angles :
TYPE2-S， TYPE3-M
Description

150lm/W IP66 and IK10 easyway streetlight option daylight Sensor

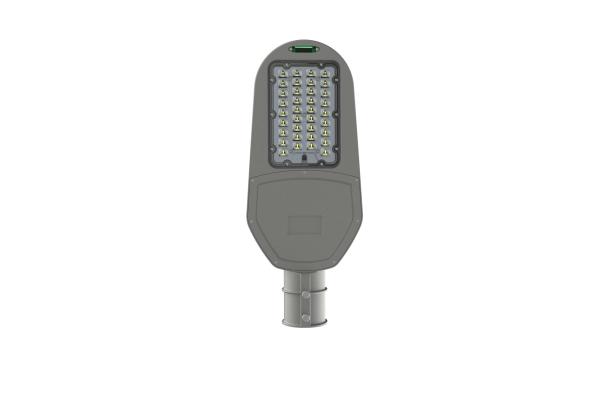

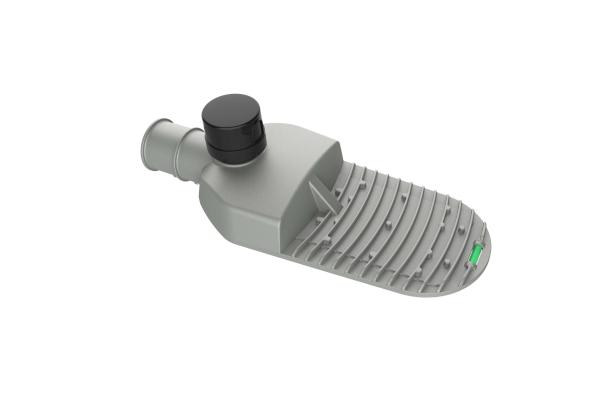

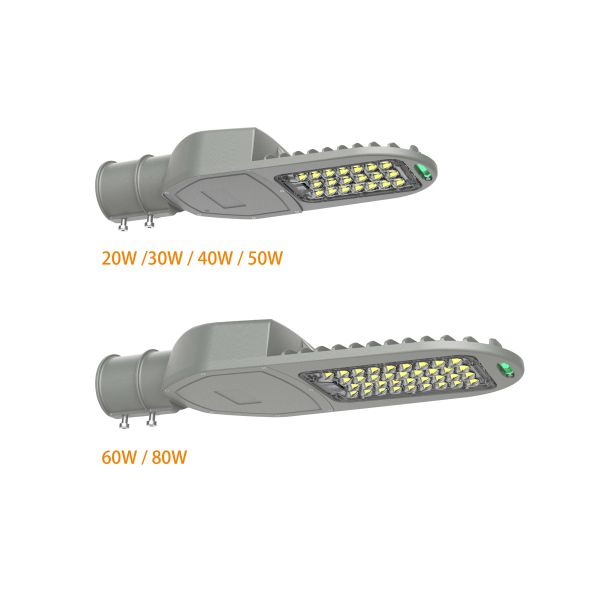

The Easyway T63 LED street light offers an affordable LED road lighting solution to the customer for both pedestrian and vehicle road applications. Its die-cast aluminum housing and high quality Tomcarline power driver ensures long lifetime and reliability. It offers 2 housing sizes and beam optics for road and street with 2 or 3 lanes. With 5W EMC 5050 led chips, it reaches 150lm/w for the system efficiency and helps the customer to save more energy

Features:

  • 150-165lm/w(5W EMC 5050 led chips)
  • IP65 and IK10 protection grade
  • Excellent thermal management ensures long system lifetime
  • PC lens
  • Level metre as standard
  • The back is shallow, and it won not hide bird droppings or leaf
  • 5 years warranty

Options
  • 10KV surge protection
  • 1-10V dimmable driver
  • Photocell
Area of application
  • Road and street

Basic Specifications

Standard lumen (150lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
T63-20W 20W AC100~277V
50~60Hz		 150±10 3300±200 TYPE2-S 20 PCS
5W EMC 5050		 >70
T63-30W 30W 150±10 4500±300 20 PCS
5W EMC 5050
T63-40W 40W 150±10 6000±400 20 PCS
5W EMC 5050
T63-50W 50W 150±10 7500±500 20 PCS
5W EMC 5050
T63-60W 60W 150±10 9600±600 TYPE3-M 20 PCS
5W EMC 5050
T63-80W 80W 150±10 12800±800 36 PCS
5W EMC 5050
T63-100W 100W 150±10 15500±800 36 PCS
5W EMC 5050
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >92%
Standard deviation of color
matching
 <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles TYPE2-S, TYPE3-M
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+50℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection		 Storage temperature -40~+80℃
Certificates CE,ROHS
Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50.000 hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable, DALI dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension(MM) CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
T63-20W/30W/
40W/50W/60W		 425*163*75 46.5*40.5*28 4PCS 9.6 11.5
T63-80W/100W 500*203.6*71 54*48.5*28 4PCS 13.2 15.7

Grey 150lm/W 30 Watt IP65 Street Lights With Daylight Sensor

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.1. Q: Where is your target market?FAQ

2.Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3.Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4.Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2)30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5.Q:How long is the delivery time?

A:About 10-14 days
