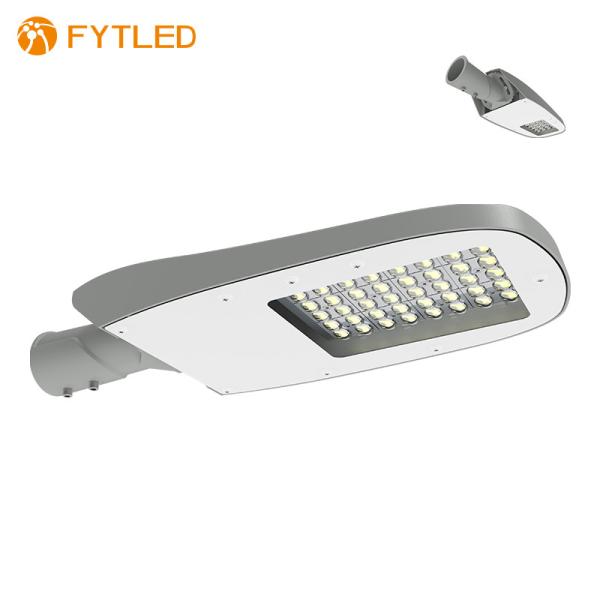

Grey RoHS Approval 80 Watt Street Light Fixture Dust Free Design
Grey RoHS Approval 80 Watt Street Light Fixture Dust Free Design
Grey RoHS Approval 80 Watt Street Light Fixture Dust Free Design
Grey RoHS Approval 80 Watt Street Light Fixture Dust Free Design
Grey RoHS Approval 80 Watt Street Light Fixture Dust Free Design
Grey RoHS Approval 80 Watt Street Light Fixture Dust Free Design
Specifications
Brand Name :
FYTLED
Model Number :
T67
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
5000PCS per month
Delivery Time :
20-25 working days
Packaging Details :
1pc/carton
Color :
Grey
Warranty :
5 years
Material :
Aluminum
Wattage :
80W
Description

IP66 street light 80W T2-S 3-M dust-free design 5 years guarantee

The Freedom T67 street light performs excellent in lumen efficiency. Reaching up to 160lm/W, it helps to spare energy consumption and spendings. The power range is 30W to 100W, with common beam angle T2-S and T3-M for double carriage ways and triple carriage ways. IP66 waterproof performance allows outdoor application.

Features

  • Lumen efficiency160lm/W
  • Sleek surface design for dust-free
  • IP66 approved
  • Each 5° to maximum 15° adjustable installation angle up/down for various light distribution
  • 5 years warranty

Options
  • 10KV surge protection device(SPD)
  • Photocell daylight sensor
  • 1-10V dimmable
  • DALI dimmable
Area of application
  • Road and street

Basic Specifications

Model Nominal Wattages (W) Nominal Voltage Rated luminous efficacy(lm/w) Nominal luminous flux(lumen) Beam Angle LED Quantity CRI
T67-30W 30W AC100-277V 50~60Hz 140±10 4200±300 T2-S
T3-M		 24pcs 5W EMC5050 >70
T67-40W 40W 140±10 5600±400 24pcs 5W EMC5050
T67-50W 50W 140±10 7000±500 24pcs 5W EMC5050
T67-60W 60W 135±10 8400±600 24pcs 5W EMC5050
T67-60W 60W 150±10 9000±600 48pcs 5W EMC5050
T67-80W 80W 140±10 11200±800 48pcs 5W EMC5050
T68-100W 100W 140±10 14000±1300 48pcs 5W EMC5050

Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white; natural white; cold white
Type of current AC100-277V Available color temperatures 4000K 5000K 6000K
Power factor λ >0.95 Color rendering index Ra >70
Efficiency in % >91%

Standards & Certification Temperatures & operating conditions
Type of protection IP66 Heatsink temperature -5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+55℃
Safety features Open circuit protection Storage temperature -40~+80℃
Short circuit protection
Overvoltage protection

Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50.000 hours Base/Socket Directly wired
Switching cycles 100,000 times
Lumen maintenance at e.o.l. 70%

Packing Information
Model Dimension(MM) CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight/CTN(kg)
T67-80W 600*260*90 66*32*15 1PCS 6 7.2

Grey RoHS Approval 80 Watt Street Light Fixture Dust Free Design


FAQ

1. Warranty: most items enjoy 5 years warranty, some reach 10 years warranty.

2. R&D team: 20 qualified engineers to support product development(3 to 5 new product will be released quarterly) and ODM.

3. Qualifications: ISO9001 and ISO14001; China Hi-tech enterprise(over 40 patents achieved).

4. Factories: ① FYT LED(parent company) for LED lights since 2008; ② Tomcarline(subsidiary) for LED power driver since 2011; ③ JYT LED(subsidiary) for aluminum heatsink since 2019.

5. MOQ: ≥1pc(it's allowed to place sample order to test the product quality and performance)
