TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
Specifications
Brand Name :
FYT LED
Model Number :
T10B-240W
Certification :
UL, DLC, CE, RoHS, CB, TUV, SAA, C-tick
Place of Origin :
Shenzhen, China
MOQ :
10 pcs
Price :
56USD-83USD/piece
Payment Terms :
L/C, T/T, Paypal, Western Union, Alipay
Supply Ability :
12000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
2PCS/CTN
Lumen Efficiency :
135lm/W
Dimming :
0-10V, DALI, DMX
Dimmension :
1205*135*72mm
Life time :
50000 hours
Net weight :
5.8kg
Fixture color :
Silver(white or black optional)
Beam angle :
120°
Storage temperature range :
-40~80℃
Description

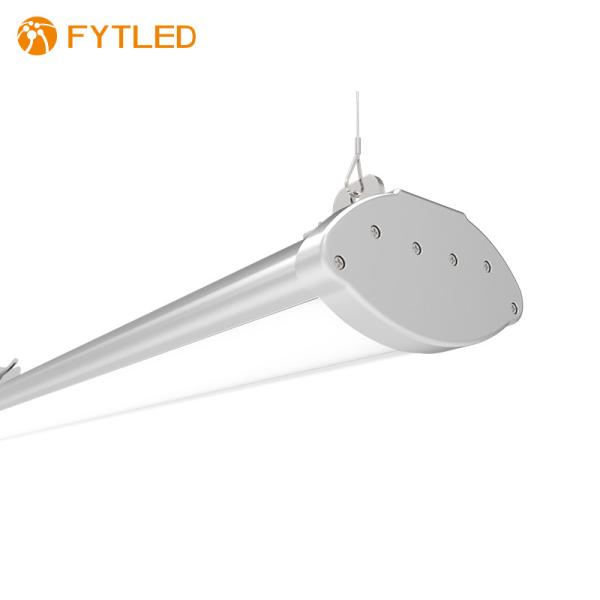

240W Tomline T10B linear LED high bay lights aluminum tube highbay LED for indoor sports field IP65 warehouse lighting

T10B linear high bay light was specially designed for use in industrial environments. Due to a massive aluminum heat sink and high quality components this product was built to last for many years. The enormous light output and the high efficiency make this high bay an ideal replacement for all sorts of traditional industrial lamps. This extremely robust industrial light is available in three versions: standard, Lumen-Plus and dust-free version. All versions can be used in all areas where an IP grade up to IP65 is needed. Thanks to the large polycarbonate cover and the high quality LED chips the illumines distribution is perfectly homogeneous.

Main Features

-135lm/W standard (155 lm/w selectable)
-Good cooling due to pure aluminum housing
-IP65 and IK10
-CRI 80 natural color presentation
-D-Mark tested for the use in paper production, wood processing etc.

OPTIONS

-IP65 junciton box
-CRI 90 Ra available upon request
-1-10V dimmable and DALI, DMX dimmable
-IP65 Microwave motion sensor
-Zigbee control and gateway
-Surface mounting bracket with ±60° angle adjustment
-Emergency power supply(IP20 20W for 3 hours)

AREA OF APPLICATION

-Factories and warehouses
-Exhibition room
-Super market
-Indoor sports field

CERTIFICATIONS
American market: UL, cUL, DLC Premium
European market: TUV, GS,CB,CE, RoHS
Australian market: SAA, C-Tick

PRODUCT SPECIFICATIOM

Specification for T10B Tomline Linear High Bay

General

Information

 Product Type Food Processing Linear high bay
Product Size 605*135*72mm, 905*135*72mm, 1205*135*72mm
Electric parameter Driver Brand Tomcarline/Meanwell HLG Series
Input Voltage AC90-305V/50-60Hz
Power 100W/150W/200W/240W
PF >0.95
Optical Parameter LED Brand Lumileds 3030
CRI >80
Color Temperature (CCT) 3000K-6000K
Luminous Flux up to 31000lm
Luminous Efficiency 155lm/w
Beam angle 120°
Others Lifetime 50,000Hr
Operating temperature -40℃~50℃
Warranty 5 years
Materials Extruded aluminum housing, PC cover
Installation Suspending
Application Warehoues, factory workshop, exhibition room, food factory etc.

PACKING
2pcs per carton: 1 piece in each inner box, and two inner box in one carton.
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
Model Dimension(mm) CTN Size(cm) QTY/CTN N.W/pc (kg) G.W/CTN (kg)
T10B-60W/100W 605*135*72 66*28*18 2 pcs 3.5 8.3

T10B-150W

 905*135*72 96*28*18 2 pcs 4.6 10.8
T10B-200W 1205*135*72 125*28*18 2 pcs 5.7

13.8

INCLUDED MOUNTING ACCESSORY
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
(Surface mounting bracket is optional)
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field
OPTIONAL ACCESSORIES
0-10V and DALI dimmable driver
Surface mounting bracket with ±60° angle adjustment
Emergency battery pack
IP65 junction box
IP65 Microwave motion sensor
Zigbee control and gateway
TUV Certified CRI 80 Linear LED High Bay Lights For Indoor Sports Field

FAQ:

1. Q: Where is your target market?
A: Europe is our main market, followed by North America, Asia, Australia and South America
have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other
certifications, I believe it can meet your needs.


2.Q: What is your MOQ?
A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.


3. Q: How long is the sample production time?
A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.


4.Q: What is the Payment?
A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%
2) 30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms


5. Q:How long is the delivery time?
A: 5-7 days for sample, 4-5 weeks for main order
