Specifications
Brand Name :
FYTLED
Model Number :
T56
Certification :
CE(EMC,LVD), RoHS,UL,cUL,DLC,ENEC,SAA,CB
Place of Origin :
CHINA
MOQ :
10 piece
Price :
US17-66/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 PCS per day
Delivery Time :
5-8 work days
Packaging Details :
6PCS or 4PCS/Carton
Power :
20W 40W 60W 80W 110W
Material :
PC&aluminum
Efficiency :
Up to 130lm/W
Impact protection :
IK10
IP rating :
IP65
Beam angle :
120 degree
CRI :
>80
L80/B10 :
50,000H
Warranty :
5 years
Description
T56 E-power tri-proof light 20W~110W 130lm/w single or linkable use IP65 protection

T56 is a highly durable and robust Tri-Proof light designed for production areas, parking facilities and any other area of application where harsh conditions have to be countered. Its polycarbonate housing is cast from a single mold and therefore absolutely dust and waterproof. Its Ingress Protection rating of IP65 assures that it can truly be used indoor and outdoor under all conditions. Improved end-caps featuring a rotary knob system allow for tool-free wiring andassure a very fast and almost effortless installation. A massive internal aluminum core provides stability and assures good thermal conditions. This modern and efficient Tri-Proof light is available in several wattages starting from 20W up to 110W.

Tri Proof 120 Degree 40W IP65 Warm LED Tube Light For Parking Facilities

Tri Proof 120 Degree 40W IP65 Warm LED Tube Light For Parking Facilities

Features

-Highly energy efficient - up to 135 lm/w
-High Luminous flux - up to 9700lm

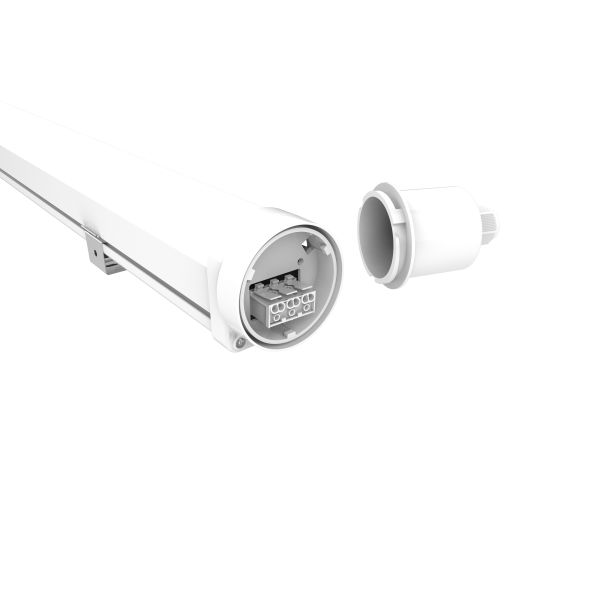

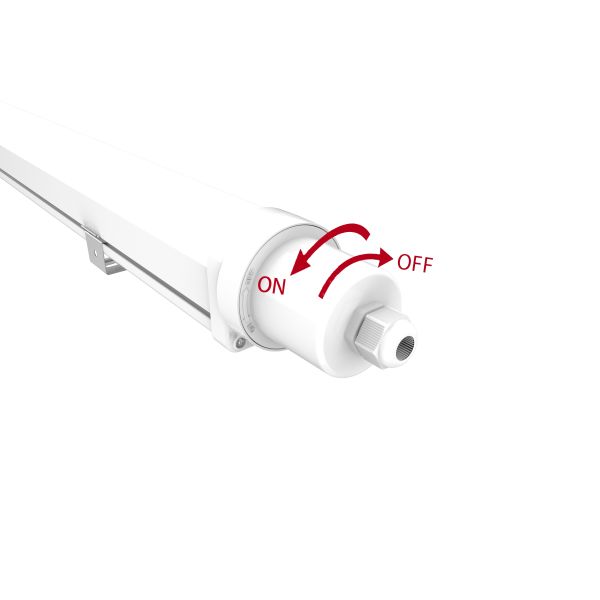

-Rotary knob for tool-free wiring and fast installation
-As continuous line
-IP65 rated for all indoor and outdoor conditions
-5 Years warranty

OPTIONS

-1-10V dimmable, DALI dimmable
-CRI 90 Ra available upon request
-3-Phase wiring
-Flicker free driver

AREA OF APPLICATION

-Factories and production areas
-Parking facilities, corridors and hallways
-Warehouses and storage rooms

CERTIFICATIONS
European market:CE (EMC, LVD, RoHS),D-Mark
North American market:UL, DLC,FCC
INCLUDED MOUNTING ACCESSORY
(Surface mounting bracket is optional)
Product Specification
Model Size Rated Power Input Voltage LED Quantity Color Temperature Rated
Luminous
Flux		 CRI IP Grade
T56-20W06 560*72*78mm 20W AC100~277V 50~60Hz 120 PCS 0.5W SMD2835 3000K, 4000K,
5000K, 6000K		 2700±100lm >80 IP65
T56-30W06 560*72*78mm 30W 120 PCS 0.5W SMD2835 3900±150lm
T56-40W12 1170*72*78mm 40W 192 PCS 0.5W SMD2835 5400±200lm
T56-60W12 1170*72*78mm 60W 192 PCS 0.5W SMD2835 7800±300lm
T56-60W15 1470*72*78mm 60W 240 PCS 0.5W SMD2835 8100±300lm
T56-75W15 1470*72*78mm 75W 240 PCS 0.5W SMD2835 9700±400lm
T56-80W24 2370*72*78mm 80W 480 PCS 0.5W SMD2835 10800±400lm
T56-110W24 2370*72*78mm 110W 480 PCS 0.5W SMD2835 14300±500lm
LEAD TIME
5-7 days for sample
2-4 weeks for bulk order

PACKING
Model Dimension(mm) CTN Size(cm) QTY/CTN N.W/pc (kg) G.W/CTN (kg)
T56-20W06/T56-30W06 560*72*78 72*35*22 6 pcs 0.9 8.5
T56-40W12/T56-60W12 1170*72*78 132*35*23 6 pcs 2 15.5
T56-60W15/T56-75W15 1470*72*78 162*35*24 6 pcs 2.4 17.5
T56-80W24/T56-110W24 2370*72*78 252*24*22 4 pcs 3.8 19.5
