Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot
Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot
Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot
Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot
Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot
Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot
Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot
Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot
Specifications
Brand Name :
FYTLED
Model Number :
T60D-300W
Certification :
CE, ROHS, UL, DLC
Place of Origin :
China
MOQ :
10
Price :
US40-102/pcs
Packaging Details :
1pcs/CTN
Delivery Time :
7-10 working days
Item type :
LED Area/Parking Lot Lighting
IP Rating :
IP66
Lamp body material :
Brown and custom color
Materials :
Massive aluminum
Application :
Parking lots & Area Lighting & Street lighting
Size :
580*310*66mm
Power :
150W
Accessories :
Slip fitter,Square pole mount,Round pole mount, Yoke mount
Light Source :
EMC3030 LEDs
Input Voltage :
AC100-277V, AC277-480V
Lamp luminous flux(lm) :
140lm/w±5%
Color temperature(cct) :
3000K, 4000K, 5000K, 6000K
Working lifetime(hour) :
50000hrs
Beam angle :
Type 3, Type 4, Type 5
Warranty(year) :
5
Description
AC100-277V, AC277-480V 300W Shoebox Light with 5 years warranty
LED Parking Lot lights | Area Lights | Street Lights is an exceptional mixture of value and performance, which can provide the high voltage AC277-480V besides AC100-277V.
The product range has been upgraded to reach very high efficacy up to 140 lm/w and cover lumen packages between 9,000 – 48,000 lumens. The range includes 480V high voltage and various sensor versions, such as photocell and motion sensor for further increasing the energy savings.
Features:
Streamlined modern design
Up to 140 lm/w
Multiple choices for mounting
IP66 and 5 years warranty
Options:
Beam angel options: Type3, Type4, Type5
1-10V dimmable
Photocell
Motion sensor
480V high voltage driver
Slip fitter, Square/Round Pole mounts, York mount
Area of application:
Parking lots & Streets, Outdoor basketball court, tennis court, Badminton court, football field,Walkways and building grounds
Specifications:
General Information Product Type LED Shoebox Light 300W
Product Size 766.5*330*76mm
Product Color Bronze, or custom
Electric parameter Input Voltage AC100-277V & AC277-480V /50-60Hz
Power 60W,100W,150W, 200W,300W
PF >0.95
Driver Brand Tomcarline/Meanwell or other famious brand
Optical Parameter LED EMC3030
CRI >70,or 80 options
Color Tempearture (CCT) 3000-6000K
Luminous Efficiency 140lm/w
Beam angle TYPE3 / TYPE4 / TYPE5
Standards & Certification Type of protection IP66
Tested dielectric strength 3.75KVac
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection
Certificates CE, RoHS, UL, DLC
Energy efficiency class A+ & A++
Temperatures & operating conditions Heatsink temperature 5~+70℃
Ambient temperature -30~+55℃
Storage temperature -40~+80℃
Others Lifetime 50,000Hr
Operating temperature -40℃~50℃
Warranty 5 years
Materials AL housing+PC lens +AL board
Application Parking lots & Streets,Outdoor basketball court, tennis court,Badminton court, football field,The school playground, stadium.,Walkways and building grounds

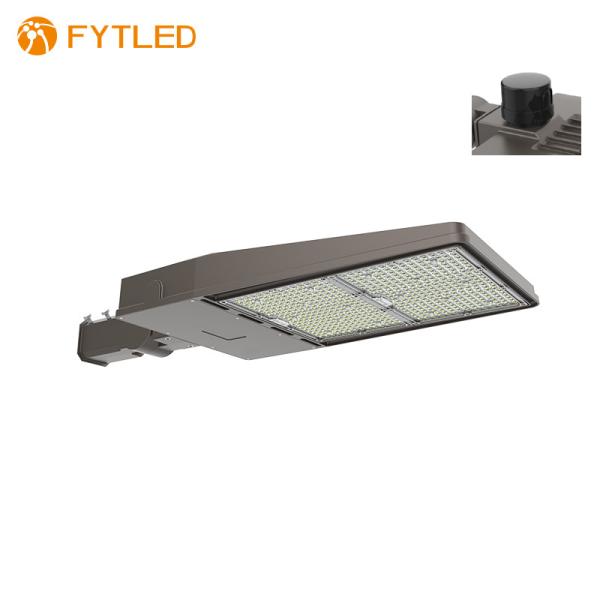

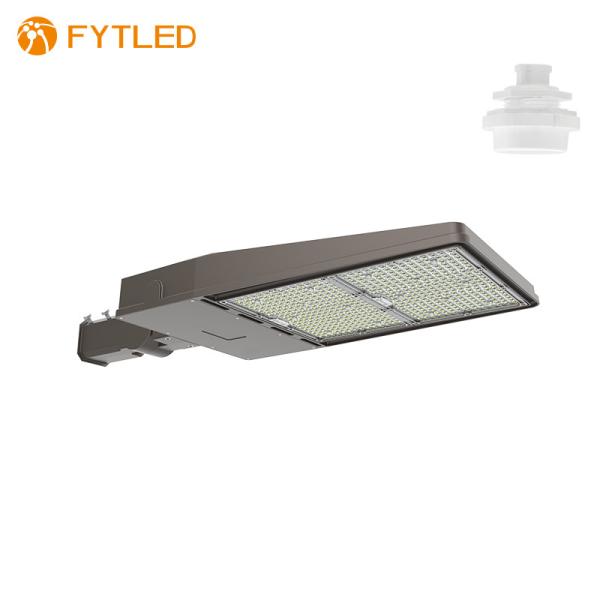

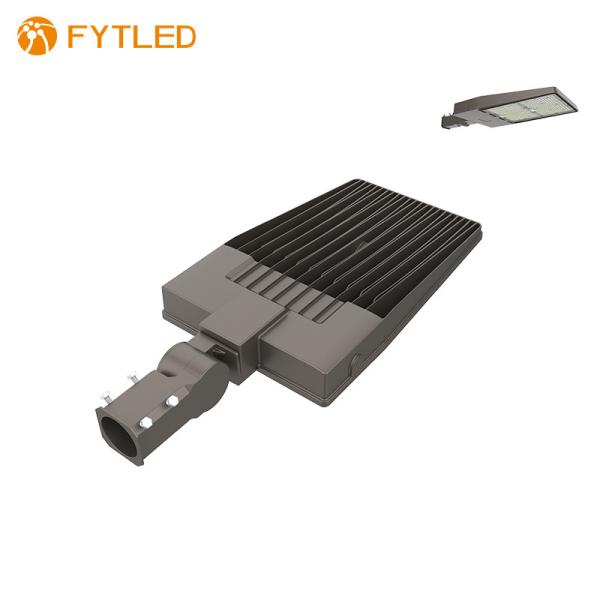

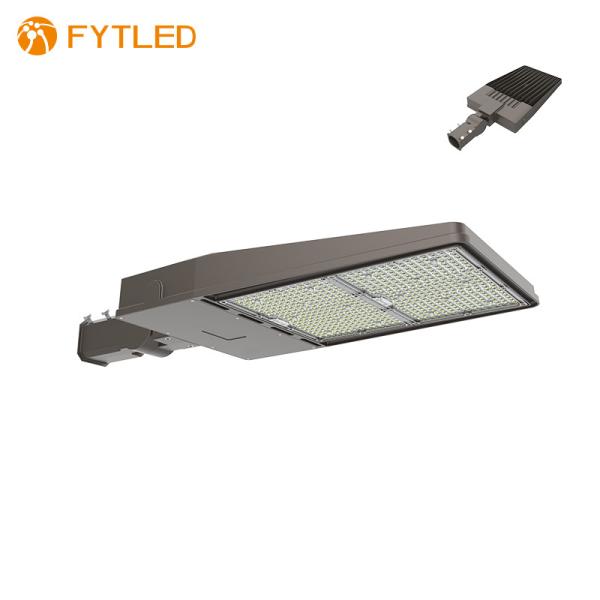

Pictures:

Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot

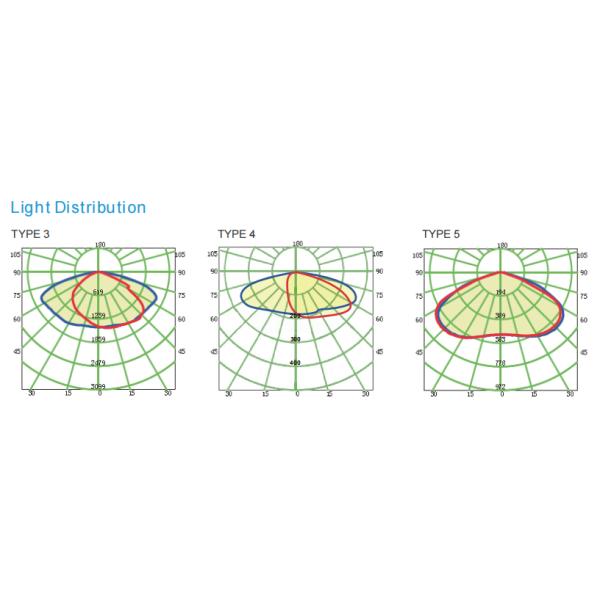

Beam angle:

Aluminum IP66 Waterproof 300W LED Shoebox Light For Parking Lot

FAQ
1. Q: Where is your target market?
A: Europe,North America is our main market, followed by ,Asia, Australia and South America.Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC,SAA and other certifications, I believe it can meet your needs.
2.Q: What is your MOQ?
A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.
3.Q: How long is the sample production time?
A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.
4.Q: What is the Payment?
A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%
2)30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms
5.Q:How long is the delivery time?
A:About 7 days
Why choose us?
1.Your inquiry related to our products or prices will be replied in 12 hours.
2.Welcome to visit our factory to check the production process.
3.We always try our best to save the manufacture cost in order to give you super high quality
with the resonable price.
4.Well-trained and experienced staffs to answer all your inquiries in fluent English.
5.Distributer-ship are offered for your unique design and some our current models.
6.Trial order with small quantities is available for our first cooperation and we can also provide
you with wholesale price;
