Specifications
Brand Name :
FYT
Model Number :
3605
Certification :
CE RoSH, ENEC, CB, SAA, UL, cUL, FCC
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
8-12 work days
Packaging Details :
1pcs/carton
Nominal wattages :
200W/300W/400W/500W/600W/800W/1000W/1200W/1500W/1600W
Voltage :
AC100-277V\100-350V \277-480V
Available color temperatures :
3000K;4000K;5000K;6000K
Rated luminous efficacy (lm/w) :
140lm/W
Beam angle :
30° \60° \90° \30x70° \60x90° \40x130° (140lm/w) / 15° (150lm/w) / 10° (125lm/w)
IP Grade Protection :
IP66
Warranty :
5 years
Material :
Die casting aluminum; PC
Color :
Black or other for options
Description

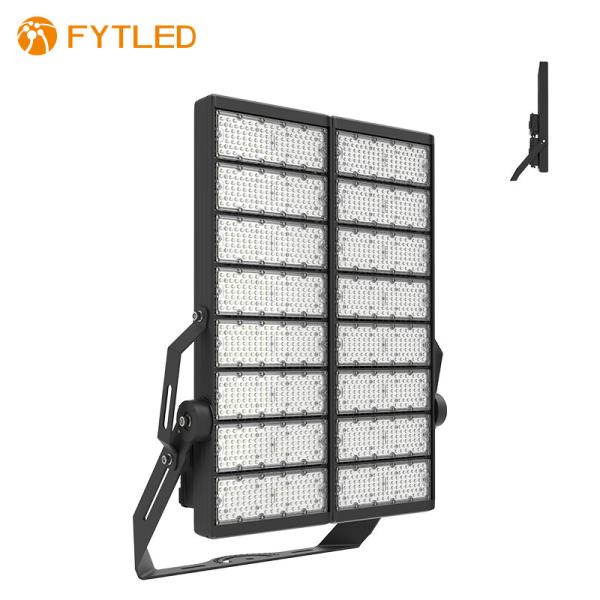

500W/600W/800W 3605 Star Spot Sports Flood High Mast Light Aluminum Die-casting

Product description:

Star Spot 3605 sports light is designed for industrial and commercial
lighting harboring the newest LED lighting technology for a wide range
of applications. High grade materials and perfect workmanship provide
excellent cooling abilities, low maintenance costs and a long lifespan. The
enormous light output and the high efficiency make this modular high bay
an ideal replacement for all sorts of traditional industrial lamps.

Features:

Highly energy efficient - up to 150 lm/w.
IP66 for indoor and outdoor use under all conditions.
Robust and modern design.
Long lifetime due to high quality LED chips and drivers.
10KV Surge Protection.
5 years warranty
High Mast 140lm/W 800W 4000K LED Sport Court Lights For Basketball
High Mast 140lm/W 800W 4000K LED Sport Court Lights For Basketball
Standard lumen (140lm/W)

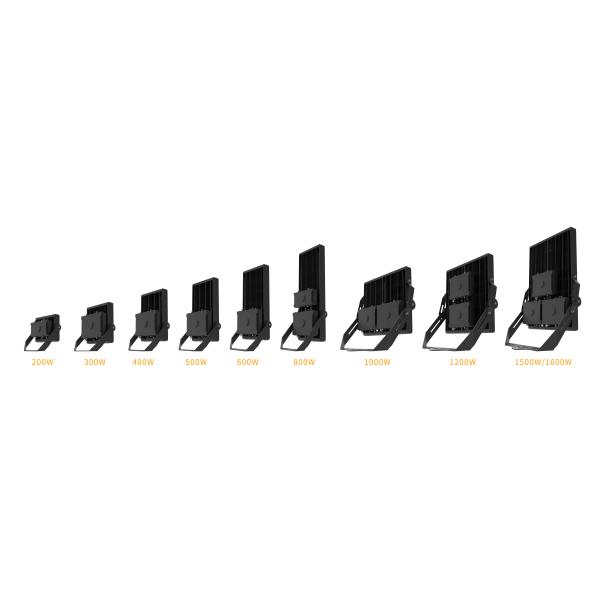

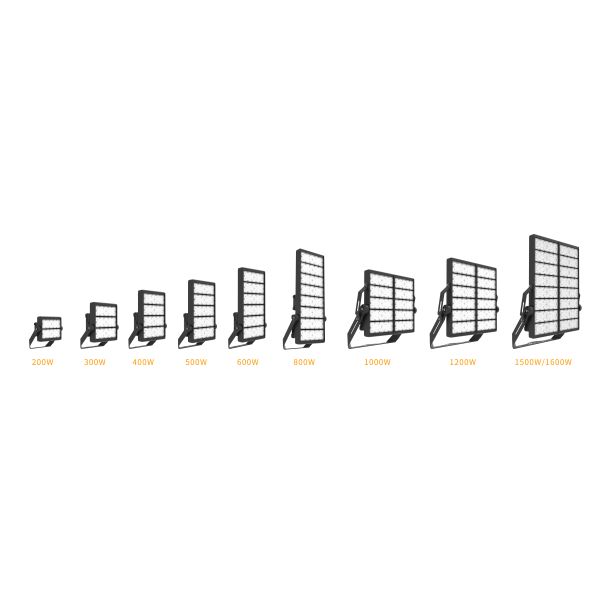

Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
3605-200W 200W AC100~277V
50~60Hz		 140±10 28000±2000 30°60°90°
30*70°40*130°60*90°		 224 PCS
EMC 3030		 >70
3605-300W 300W 140±10 42000±3000 336 PCS
EMC 3030
3605-400W 400W 140±10 56000±4000 448 PCS
EMC 3030
3605-500W 500W 140±10 70000±5000 560 PCS
EMC 3030
3605-600W 600W 140±10 84000±6000 672 PCS
EMC 3030
3605-800W 800W 140±10 112000±8000 896 PCS
EMC 3030
3605-1000W 1000W 140±10 140000±10000 1120 PCS
EMC 3030
3605-1200W 1200W 140±10 168000±12000 1344 PCS
EMC 3030
3605-1500W 1500W 140±10 217000±15000 1792 PCS
EMC 3030
3605-1600W 1600W 140±10 240000±16000 1792 PCS
EMC 3030
Standard lumen (150lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
3605-200W 200W AC100~277V
50~60Hz		 150±10 30000±2000 15° 92 PCS
EMC 5050		 >70
3605-300W 300W 150±10 45000±3000 138 PCS
EMC 5050
3605-400W 400W 150±10 60000±4000 184 PCS
EMC 5050
3605-500W 500W 150±10 75000±5000 230 PCS
EMC 5050
3605-600W 600W 150±10 90000±6000 276 PCS
EMC 5050
3605-800W 800W 150±10 120000±8000 368 PCS
EMC 5050
3605-1000W 1000W 150±10 150000±10000 460 PCS
EMC 5050
3605-1200W 1200W 150±10 180000±12000 552 PCS
EMC 5050
3605-1500W 1500W 150±10 232000±15000 736 PCS
EMC 5050
3605-1600W 1600W 150±10 240000±16000 736 PCS
EMC 5050
Standard lumen (125lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
3605-200W 200W AC100~277V
50~60Hz		 125±10 25000±2000 10° 64 PCS
5W 3535		 >70
3605-300W 300W 125±10 37500±3000 96 PCS
5W 3535
3605-400W 400W 125±10 50000±4000 128 PCS
5W 3535
3605-500W 500W 125±10 62500±5000 160 PCS
5W 3535
3605-600W 600W 125±10 75000±6000 192 PCS
5W 3535
3605-800W 800W 125±10 100000±8000 256 PCS
5W 3535
3605-1000W 1000W 125±10 125000±10000 320 PCS
5W 3535
3605-1200W 1200W 125±10 150000±12000 384 PCS
5W 3535
3605-1250W 1250W 125±10 187500±15000 512 PCS
5W 3535
3605-1600W 1600W 125±10 200000±16000 512 PCS
5W 3535
Operating frequency
47-63HZ
Available light colors
warm white;natural white;
daylight white
Type of current
AC100-277V100-350V
277-480V
Available color temperatures
3000K;4000K;5000K;6000K
Power factor λ
>0.9
Color rendering index Ra
>70
Efficiency in %
>90%
Standard deviation of color
matching
<6
Start time (0.2s / 0.5s / … )
0.1S
UGR (Unified Glare Rating)
<27
Warm-up time to 60 % (1.5s / 2s / … )
0.5S
Available beam angles
10°/15°/30°/60°/90°/30*70°/40*130°
Type of protection
IP66
Heatsink temperature
5~+70℃
Tested dielectric strength
3.75KVac
Ambient temperature
-30~+45℃
Safety features
Open circuit protection;
short circuit protection ;
overvoltage protection
Storage temperature
-40~+80℃
Energy efficiency class
A+ & A++
Lumen maintenance at e.o.l.
70%

Options
CRI>80
480V high voltage driver
20KV Surge Protection upgrade
1-10V dimmable & DALI dimmable

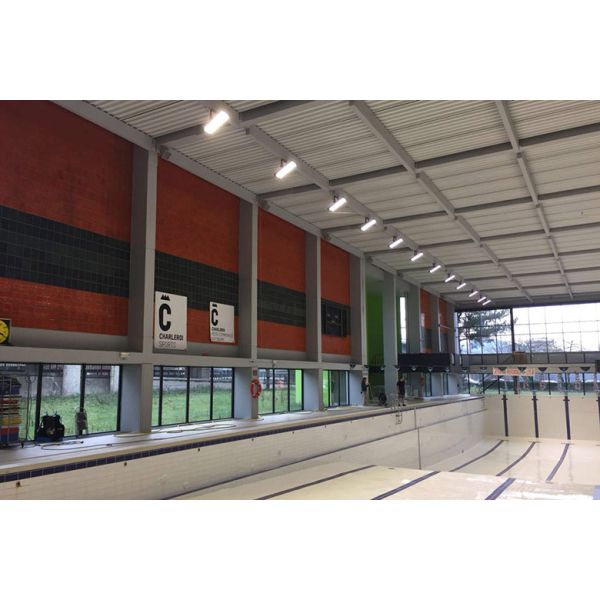

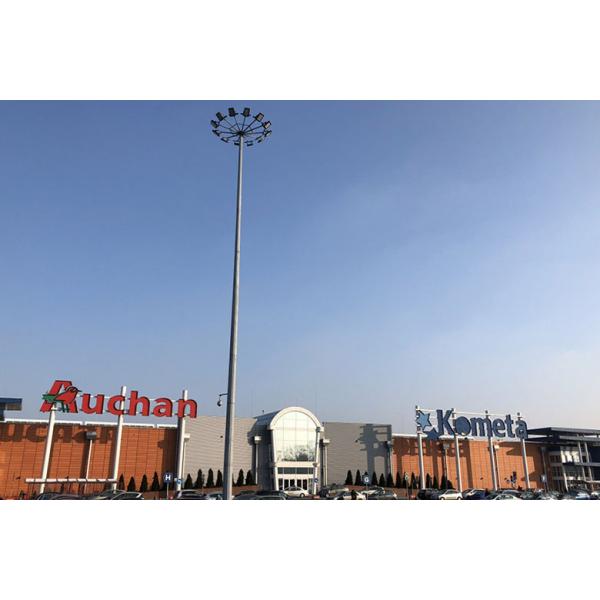

Area of application
Sports
Storage yards
Car dealerships
Parking areas
Other outdoors application
High Mast 140lm/W 800W 4000K LED Sport Court Lights For Basketball
High Mast 140lm/W 800W 4000K LED Sport Court Lights For Basketball
Certificates
CE RoSH, ENEC, CB, SAA, UL, cUL, FCC
High Mast 140lm/W 800W 4000K LED Sport Court Lights For Basketball

FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.

2.Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3.Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4.Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2)30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5.Q:How long is the delivery time?

A:About 7 days
