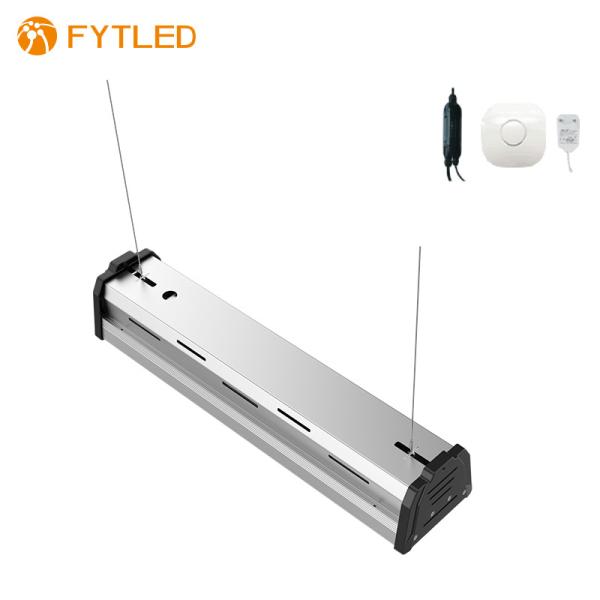

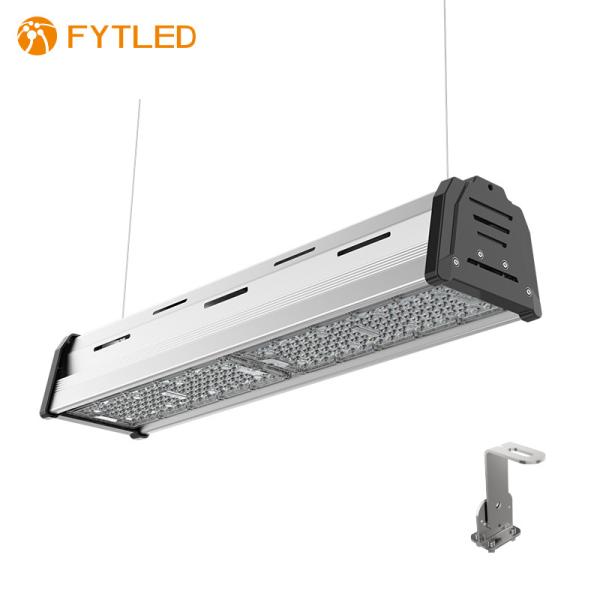

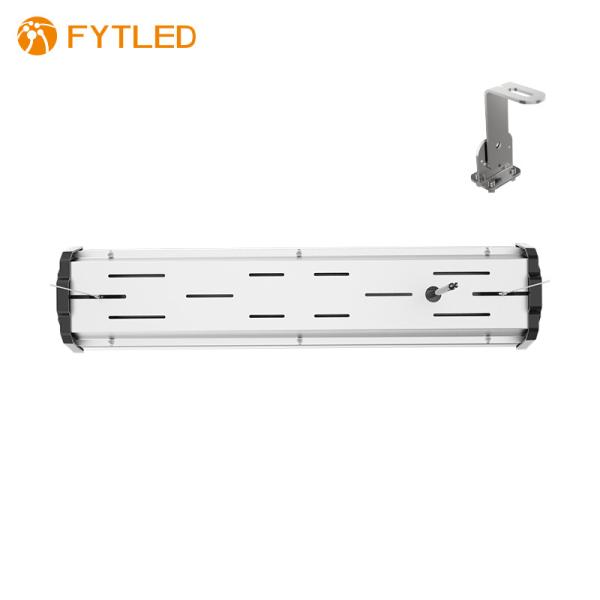

Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Specifications
Brand Name :
FYTLED
Model Number :
T31D
Certification :
CE-LVD
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD20-110/PCS
Payment Terms :
L/C, T/T, D/A, D/P
Delivery Time :
3-10 work days
Packaging Details :
2PCS/CTN
Wattage :
90W-120W
Luminous Flux :
17400LM
Dimension :
620*145*116
CCT :
4000K
beam angle :
60°
Net Weight :
4.2KG
Description

LINEAR LIGHT T31D 120W 30DEGREE CE ROHS 17000LM 5 YEARS WARRANTY

Features

• 90W-120W Adjustable
• High Luminous flux 17400±1200lm
• 60° 90° Various lenses for different beam angles and more for optional
• IP65

OPTIONS

• The external driver is mounted on spacers to prevent an unnecessary heat transfer to the driver providing a longer lifespan
• Various beam angle options: 60°/ 90 °/ 30 °x70°,40°x130° Optional
• DALI driver or other brand driver available
• motion or PIR sensor available
• brackets allow for wall or ceiling installation where the installation angle needs to be adjusted.

AREA OF APPLICATION

Can be efficiently used in heights up to 30m warehouse, tall halls, loading areas and freight yards
Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay
Basic Specification
Model Nominal wattages Nominal voltage Rated luminous efficacy Nominal luminous flux Beam Angle LED Quantity CRI
T31D-80W01 80W AC100~277V 50~60Hz 140±10 11200±800 30°60°90°30*70°
40*130°		 112 PCS EMC 3030 >70
T31D-120W02 120W 145±10 17400±1200 224 PCS EMC 3030
T31D-150W02 150W 140±10 21000±1500 224 PCS EMC 3030
T31D-200W03 200W 145±10 29000±2000 336 PCS EMC 3030
T31D-240W03 240W 140±10 33600±2400 336 PCS EMC 3030
T31D-300W04 300W 140±10 42000±3000 448 PCS EMC 3030
Lumen Plus (160lm/W)
Model Nominal wattages Nominal voltage Rated luminous efficacy Nominal luminous flux Beam Angle LED Quantity CRI
T31D-80W02 80W AC100~277V 50~60Hz 165±5 13200±400 30°60°90°30*70°
40*130°		 224 PCS EMC 3030 >70
T31D-150W03 150W 160±5 24000±750 336 PCS EMC 3030

Electrical data Photometrical data

Operating frequency 47-63HZ Available light colors warm white;natural white; daylight white
Type of current

AC100-277V100-350V277-480V

 Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >90% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 30°/60°/90°/30*70°/40*130°

Packing Information
Model Dimension(MM) CTN SIZ E(CM) QT Y/ CT N Net Weight/pcs(kg) Gross Weight /CTN(kg)
T31D-80W01 320*145*116 37*34*17 2PCS 2.6 6.8
T31D-80W02/ 120W02/150W02 620*145*116 67*34*17 2PCS 4.2 10.2
T31D-150W03/ 200W03/240W03 920*145*116 97*34*17 2PCS 5.8 14.5
T31D-300W04 1220*145*116 127*34*17 2PCS 7.8 19.5

FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.

2. Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3. Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4. Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2) 30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5. Q:How long is the delivery time?

A: About 7 days
