Specifications
Brand Name :
FYT
Model Number :
T35B
Certification :
CE RoSH, UL, DLC, FCC
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Nominal wattages :
300W/400W/500W/750W/1000W
Voltage :
AC100-277V\100-350V \277-480V
Available color temperatures :
3000K;4000K;5000K;6000K
Rated luminous efficacy (lm/w) :
150lm/W
Beam angle :
15° /30° /60° /90°
IP Grade Protection :
IP65
Warranty :
5 years
Description

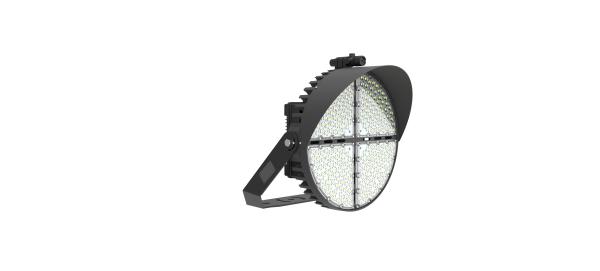

T35B Winner Round Stadium Sports Light EMC5050 UL DLC CE RoHS​.

The Winner T35B sports light is ideal for sports field lighting, back yard sports
courts, parks, signs, parking lot lighting, and other general applications where
sports lighting may come into use. It has wattages ranging from 300 watts to
1000 watts. With different beam spreads available, we can adjust your LED sports
light fixture output to eliminate dark sports on your sports field.

Features:

Heavy-Duty, lightweight and durable die-cast design.
Compact design with no expose electronics or wiring.
As high as 150lm/w system light efficiency.
High level of lighting quality, flicker free.
Benefits:
Round shape provides large area for massive LEDs and lumens.
PC cover for higher refraction idex.
Massive die-casting Aluminum body.
Firm die-casting Aluminum bracket.

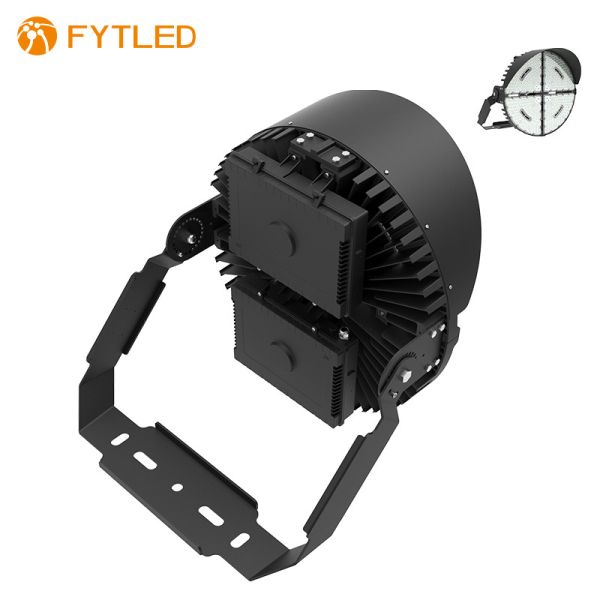

Aluminum driver box with excellent heat dissipation ability and big volume for not only drivers but all the wiring, SPD and other accessories.
RoHS Certified AC100V 150lm/W LED Sport Court Lights High Brightness
RoHS Certified AC100V 150lm/W LED Sport Court Lights High Brightness
RoHS Certified AC100V 150lm/W LED Sport Court Lights High Brightness
Operating frequency 47-63HZ Available light colors
warm white;natural white;
daylight white
Type of current
AC100-277V100-350V
277-480V
 Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >90%
Standard deviation of color
matching
 <6
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 10°/15°/30°/60°/90°/30*70°/40*130°
Type of protection IP66 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+45℃
Safety features
Open circuit protection;
short circuit protection ;
overvoltage protection
 Storage temperature -40~+80℃
Energy efficiency class A+ & A++ Lumen maintenance at e.o.l. 70%
Options
CRI>80
480V high voltage driver
SPD protection
Laser aiming device
Area of application
Sports (such as football, tennis ball stadium and etc).
Other outdoor lighting
RoHS Certified AC100V 150lm/W LED Sport Court Lights High Brightness
Certificates
CE RoSH, UL, DLC, FCC
RoHS Certified AC100V 150lm/W LED Sport Court Lights High Brightness
Applications and saftey notes:
  • Carefully read and follow all warnings and instructions before installing or servicing the luminaire.
  • The installation should be done by an individual familiar with the construction and operation of the luminaire.
  • The installation of this luminaire must be in accordance with national and local building and electrical codes.
  • The product must not be damaged or operated in a damaged condition.
  • This luminaire must be directly wired on line. Any ballast or other power device previously used with the replaced luminaire must be removed.
  • Between the luminaire and any possibly flammable material must be an appropriate safety space (at least 20cm).
  • The luminaire must not be covered with heat insulating materials.
  • Always provide proper ventilation around the luminaire and do not exceed the maximum ambient temperature.
  • Compared to traditional lights the characteristic light distribution of this LED luminaire may differ. In order to be sure to meet your lighting
  • requirements a photometric check of the installation is recommended.
