SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
Specifications
Brand Name :
FYT
Model Number :
T35
Certification :
CE RoSH, CB, SAA
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T
Delivery Time :
8-12 work days
Nominal wattages :
750W/1000W
Voltage :
AC100-277V\100-350V \277-480V
Available color temperatures :
3000K;4000K;5000K;6000K
Rated luminous efficacy (lm/w) :
150lm/W
Beam angle :
15° /30° /60° /90° /90x120° /40x130° /TYPE2 / TYPE3 / TYPE4
IP Grade Protection :
IP65/IP67 for option
Warranty :
5 years
Description

T35 Honor Flood Light High Mast Light Sports Light TYPE2TYPE3TYPE4 TOMCARLINE.

The newest Honor T35 sports light is robust and modern design. It is an ideal solution

for sports and multifunctional lighting applications. HONOR T35 flood light offers
outstanding light quality, effective thermal management, and long lifetime. The

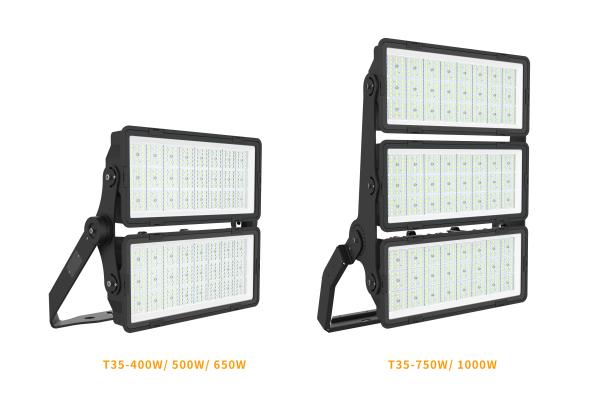

floodlight range includes 400W, 500W, 650W, 750W, and 1000W with different beam
angle options.

Features:

As high as 150lm/w, 150,000lm maximum.
Easy installation and lower labor cost.
High level of lighting quality, flicker free.
Multiple light distributions including 15° narrow beam angle.
The angle of each module can be adjustable.
Each module can be replaced to minimize maintenance costs.
Both integrated version and remote version.
5 years warranty.
Materials:
Massive die-casting Aluminum body.
Firm die-casting Aluminum bracket.
Aluminum driver box with excellent heat dissipation ability and big volume for not only drivers but all the wiring, SPD and other accessories.
Tempered glass cover: anti-UV and various chemicals.
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
Features
As high as 150lm/w, 150,000lm maximum
Easy installation and lower labor cost
High level of lighting quality, flicker free
Multiple light distributions including 15° narrow beam angle
The angle of each module can be adjustable
Each module can be replaced to minimize maintenance costs
Both integrated version and remote version
Options
Various beam angle options
Salty Spray 1,000hrs
SPD protection
1-10V dimmable and DALI driver
Operating frequency 47-63HZ Available light colors
warm white;natural white;
daylight white
Type of current
AC100-277V100-350V
277-480V
 Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.9 Color rendering index Ra >70
Efficiency in % >90%
Standard deviation of color
matching
 <6
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 10°/15°/30°/60°/90°/30*70°/40*130°
Type of protection IP66 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+45℃
Safety features
Open circuit protection;
short circuit protection ;
overvoltage protection
 Storage temperature -40~+80℃
Energy efficiency class A+ & A++ Lumen maintenance at e.o.l. 70%
Area of application
Indoor and outdoor sports arenas and stadiums
Ports and airports

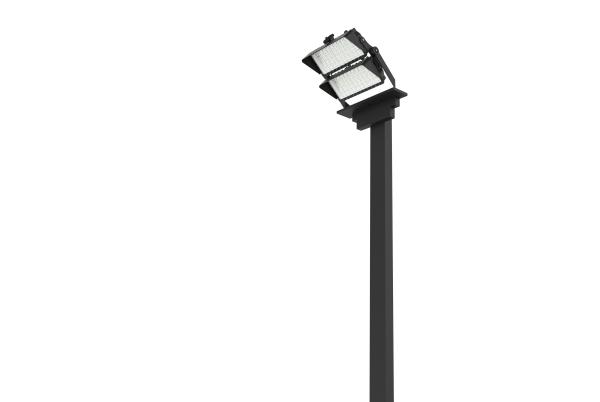

Other high mast area application
SAA Approve 4000K 150lm/W Badminton Court Lighting Outdoor Waterproof
