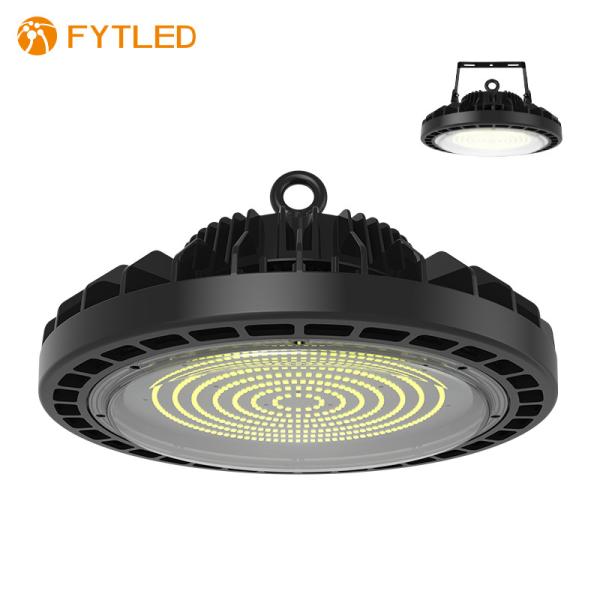

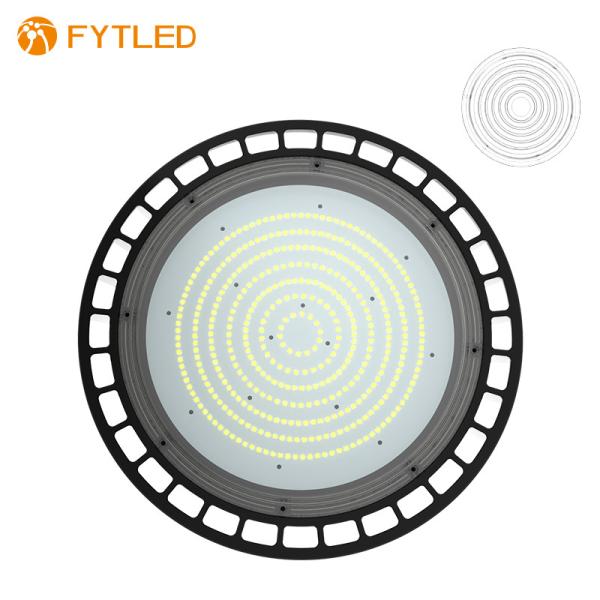

Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W
Specifications
Brand Name :
FYTLED
Model Number :
HB07
Certification :
UL, DLC, CE, ,ROHS, SAA,
Place of Origin :
China
MOQ :
1
Supply Ability :
5000 pcs / Month
Delivery Time :
8-12 working days
Packaging Details :
1pc/Carton, size 30*30*20.5
Material :
Massive aluminum
Color :
Black or white
Application :
Warehouses and logistic halls; Production facilities; Exhibition- & showrooms
Available light colors :
warm white;natural white;daylight white
Available beam angles :
60°/90°/110°
Type of current :
AC100-277V
Rated nominal Lifetime :
50,000hours
LED Device Lifetime :
L80/B10 @ 50.000H
Color rendering index Ra :
>80 or >70
Description

Factory LED highbay 100W 110 degree CE RoHS CB 180lm/w with 50,000hours

The HB07 HERO High bay Series are designed for industrial lighting adopting the newest LED lighting technology with 180 lm/w light efficiency. High grade materials and perfect workmanship provide excellent cooling abilities and a long lifespan with 5 year warranty.

HB-07 highbay Features:
  • 100W,150W,200W
  • 130lm/W,150lm/W and 180lm/W lumen plus.(Real light efficency,IES for reference)
  • Aluminum die-cast material(Black standard,white color for option)
  • IP65,IK10
  • Power factor>0.9; THD<10
  • Ambient temperature:-30~+55℃
  • Easy changed in PC cover and 60 ° 90° lens help you save stock.
Options:
  • Optional Meanwell ELG driver available
  • 1-10V or DALI dimmable driver available
  • Milky PC cover available upon request
  • Microwave motion sensor available
  • Zigbee is available

​

Standard lumen (130lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HB07-100W 100W AC100~277V
50~60Hz		 130±10 13000±1000 110° 176 PCS
1W 2835		 >80
HB07-150W 150W 130±10 19500±1500 272 PCS
1W 2835
HB07-200W 200W 130±10 26000±2000 368 PCS
1W 2835
Lumen Plus (150lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HB07-100W 100W AC100~277V
50~60Hz		 150±10 15000±1000 110° 252 PCS
1W 2835		 >70
HB07-150W 150W 150±10 22500±1500 330 PCS
1W 2835
HB07-200W 200W 150±10 30000±2000 440 PCS
1W 2835
Lumen Plus + (180lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HB07-100W 100W AC100~277V
50~60Hz		 180±10 18000±1000 110° 306 PCS
1W 2835		 >70
HB07-150W 150W 180±10 27000±1500 459 PCS
1W 2835
HB07-200W 200W 180±10 36000±2000 612 PCS
1W 2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.95 Color rendering index Ra >80 or >70
Efficiency in % >91% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <30
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 60°/90°/110°
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+55℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection		 Storage temperature -40~+80℃
Certificates UL, cUL, DLC, CE, RoHS, TUV, SAA
Energy efficiency class A+
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable / DALI dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension CTN SIZE(mm) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
HB07-100W/150W Φ280*188 36*35*27 1PCS 3.5 4.5
HB07-200W Φ320*188 39*36*27 1PCS 4.3 5.5

Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W

Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W

Durable 110 Degree Round LED High Bay Lights , LED High Bay 100W

FAQ:
1. Delivery Time:
Normal 15 days after order confirming. Some items maybe more faster
2. Payment Terms:
T/T 30% deposit after order confirmed, the balance after goods ready
3. OEM :
OEM Service is available.
4. Shipping Ways:
By Express: DHL, UPS, EMS, TNT, etc.
By Air: Please let us know the airport.
By Sea : Please let us know the seaport.
UPS, FEDEX, EMS etc
