High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging
Specifications
Brand Name :
FYTLED
Model Number :
HB09
Certification :
UL, DLC, SAA, CE,RoHS
Place of Origin :
China
MOQ :
1
Price :
USD 74.5~76 / PCS
Supply Ability :
5000PCS/Month
Delivery Time :
8~12 working days
Packaging Details :
1PCS/Carton
Housing :
Die-casting aluminum
Light efficiency :
140lm/W
Support Dimmer :
Yes
Beam Angle :
90 /120°
Application :
Warehouses and logistic halls, Production facility
Type of current :
AC100-277V
Power :
200W-150W-100 adjustable
CCT :
3000K+4000K,3000K+5000K,3000K+6000K,4000K+5000K,4000K+6000K,5000K+6000K
Warranty :
5 years
Description

Future HB09 highbay light CCT+Power DIP UL,DLC,SAA 140lm/W 5 years warranty save SKU

Future HB09 highbay light with Power & CCT adjustable, which enables you to save SKU and fewer inventories.

It's 360mm big size for good heat dissipation, with power 200W-150W-100W adjustable and CCT adjustable.

HB-09 CCT+Power DIP highbay Features:

  • AC 100-277V
  • Smart plug & play system for build-in sensor without wiring, Power & CCT adjustable
  • 200W-150W-100W adjustable
  • 140lm/W.(Real light efficency,IES for reference)
  • Aluminum die-cast material(Black standard,white color for option)
  • IP65,IK10
  • Power factor>0.95; THD<10
  • Ambient temperature:-30~+55℃
  • Easy changed in PC cover and 90° lens help you save stock.
Options:
  • Optional Meanwell ELG driver available
  • 1-10V dimmable driver available
  • Milky PC cover available upon request
  • 12V Plug&Play PIR sensor or Microwave motion sensor available

Specification:

Model No. HB09-200W(DIP Design)
Power DIP 200W-150W-100W
Product dimension Φ360*188mm
Efficiency 140±10lm/W
Luminous Flux(±10%) 200W(28000lm±2000lm)-150W(21000lm±2000lm)-100W(1400lm±2000lm),
LED Quantity 414PCS EMC 3030

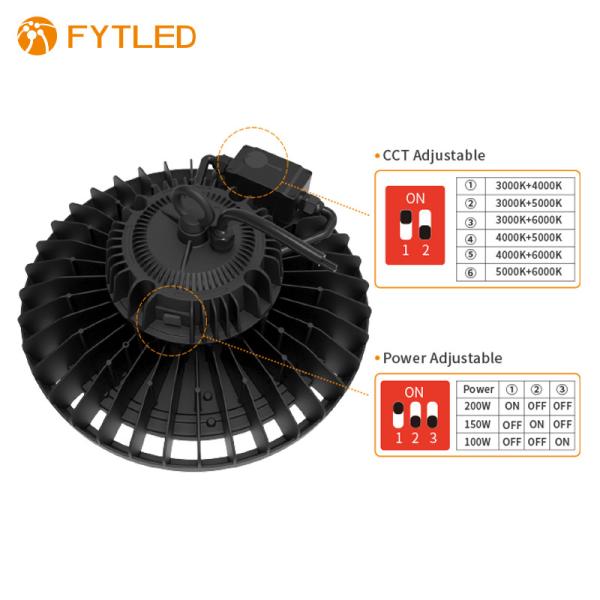

CCT DIP ①3000K+4000K
②3000K+5000K
③3000K+6000K
④4000K+5000K
⑤4000K+6000K
⑥5000K+6000K
Ingress protection IP65
Color Rendering Index Ra>70
Beam Angle 90°/120°

​

Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.95 Color rendering index Ra >70
Efficiency in % >91% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <27
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 90°/120°
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+55℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection		 Storage temperature -40~+80℃
Certificates UL, cUL, DLC, CE, RoHS, TUV, SAA
Energy efficiency class A+ & A++
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension CTN SIZE(mm) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
HB09-200W Φ360*188 41*41*23 1PCS 5.3 6.5

High Brightness 150W 140lm/W High Bay LED Shed Lights Ceiling Hanging

FYTLED ADVANTAGES

Product Advantage:
FYTLED specializes in the development and manufacturing of LED high bay lights, street lights, tri-proof lights, floodlights, stadium light, etc.. It is a professional LED lighting manufacturer with its own brand Tomcarline driver and hardware die-casting factory. With 13 years of industry experience , FYTLED has unique advantages over technological innovation, costs control, OEM/ODM flexibility, and delivery stability.


Tomcarline Driver Advantage:
The life of LED lamps depends on the long-term stability of the power supply and good heat dissipation performance of the die-casting parts. FYT believes in and adhere to control reliable quality for any parts of our LED products, expecially driver. Since 2011, it has independently developed and produced its own power supplies, and strictly controlled the power supply quality in accordance with international standards. Quality guarantees the stable and reliable life and performance of LED lamps, After years of R&D innovation and technological reform, our power supply product series range from 20W-1200W, including 0-10V, DALI, Class II, isolated power supply, non-isolated power supply, high voltage 277-480V, constant voltage power supply, high temperature power supply, and flicker-free power supply, Bluetooth power supply. More than 95% of our LED lighting customers accept and highly praise the stability of Tomcarline drivers.

Foshan JYT Die-casting Advantage:
In 2019, we established JYT hardware die-casting factory, which is mainly engaged in the production and processing of the whole chain of hardware such as mold design, mold making, hardware die-casting, CNC machining, stamping, surface spraying, etc. The establishment of die-casting factory is not only flexibly supplying FYTLED heat sink demand, but also improving our delivery time, costs and quality control. At the same time it provides high flexibility and coordination in OEM and ODM services. JYT has rich experience and unique process routes in the production and processing of LED lamp radiators, with an annual production capacity of 1 million pieces.

FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.

2. Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3. Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4. Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2) 30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5. Q:How long is the delivery time?

A: About 7 days
