IK65 IK10 180lm/W HB07 skybay highbay with AC220-240V 5 year warranty
IK65 IK10 180lm/W HB07 skybay highbay with AC220-240V 5 year warranty
IK65 IK10 180lm/W HB07 skybay highbay with AC220-240V 5 year warranty
IK65 IK10 180lm/W HB07 skybay highbay with AC220-240V 5 year warranty
IK65 IK10 180lm/W HB07 skybay highbay with AC220-240V 5 year warranty
IK65 IK10 180lm/W HB07 skybay highbay with AC220-240V 5 year warranty
Specifications
Brand Name :
FYTLED
Model Number :
HB07
Certification :
UL, DLC, CE, ,ROHS, SAA,
Place of Origin :
China
MOQ :
1
Supply Ability :
5000 pcs / Month
Delivery Time :
8-12 working days
Packaging Details :
1pc/Carton, size 30*30*20.5
Material :
Aluminum die-casting
Color :
Black, white option
Warranty :
5 year
AREA OF APPLICATION :
Warehouses and logistic halls; Production facilities; Exhibition- & showrooms
Available beam angles :
60°/90°/110°
Available light colors :
warm white;natural white;daylight white
Rated nominal Lifetime :
50,000hours
Description

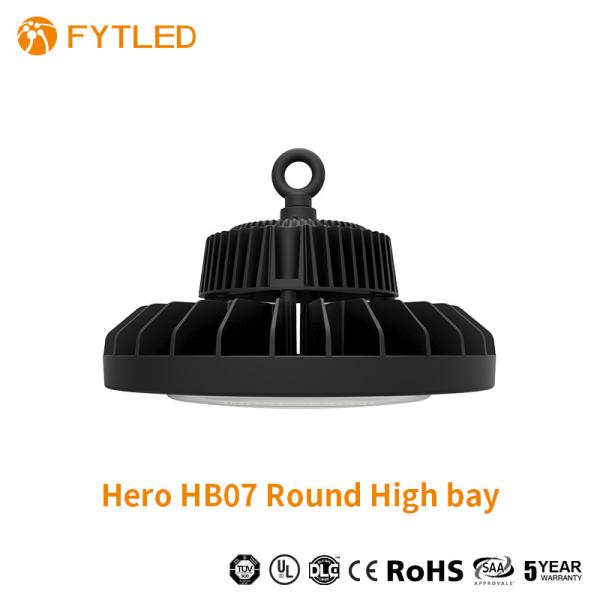

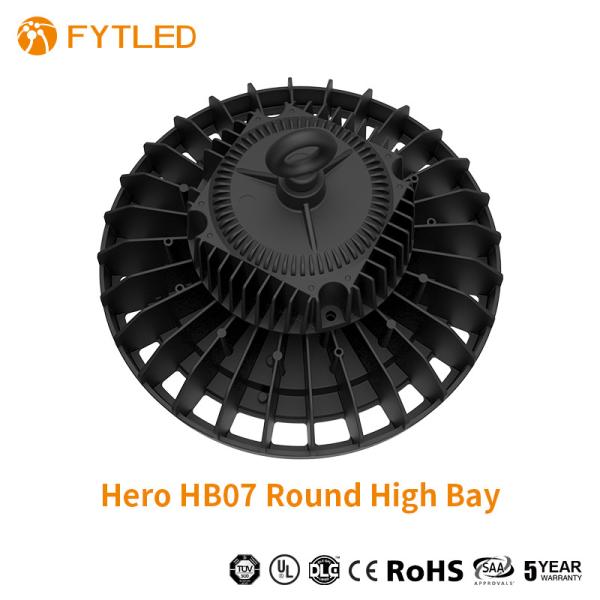

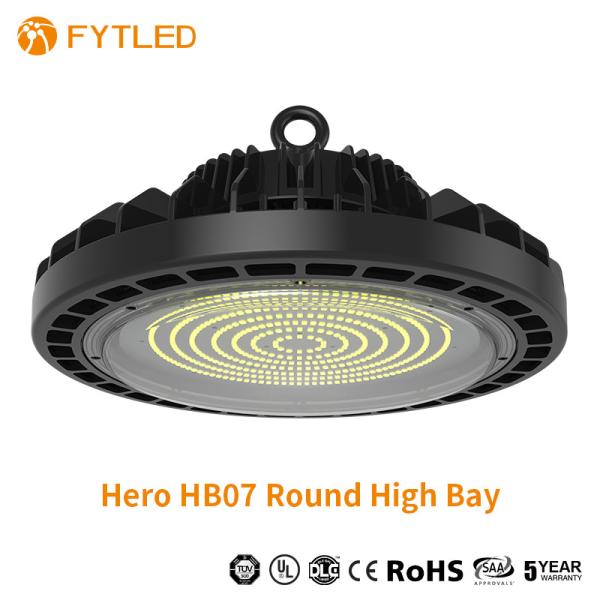

220-240V cost effective 180lm/W HB07 skybay highbay with IK65 IK10

The HB07 HERO High bay Series are designed for industrial lighting adopting the newest LED lighting technology with 180 lm/w light efficiency. High grade materials and perfect workmanship provide excellent cooling abilities and a long lifespan with 5 year warranty.

HB-07 highbay Features:
  • AC 220-240V
  • Price competitive
  • 100W,150W,200W
  • 130lm/W,150lm/W and 180lm/W lumen plus.(Real light efficency,IES for reference)
  • Aluminum die-cast material(Black standard,white color for option)
  • IP65,IK10
  • Power factor>0.9; THD<10
  • Ambient temperature:-30~+55℃
  • Easy changed in PC cover and 60 ° 90° lens help you save stock.
Options:
  • Optional Meanwell ELG driver available
  • 1-10V or DALI dimmable driver available
  • Milky PC cover available upon request
  • Microwave motion sensor available
  • Zigbee is available

​

Standard lumen (130lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HB07-100W 100W AC220~240V
50~60Hz		 130±10 13000±1000 110° 176 PCS
1W 2835		 >80
HB07-150W 150W 130±10 19500±1500 272 PCS
1W 2835
HB07-200W 200W 130±10 26000±2000 368 PCS
1W 2835
Lumen Plus (150lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HB07-100W 100W AC220~240V
50~60Hz		 150±10 15000±1000 110° 252 PCS
1W 2835		 >70
HB07-150W 150W 150±10 22500±1500 330 PCS
1W 2835
HB07-200W 200W 150±10 30000±2000 440 PCS
1W 2835
Lumen Plus + (180lm/W)
Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI
HB07-100W 100W AC220~240V
50~60Hz		 180±10 18000±1000 110° 306 PCS
1W 2835		 >70
HB07-150W 150W 180±10 27000±1500 459 PCS
1W 2835
HB07-200W 200W 180±10 36000±2000 612 PCS
1W 2835
Electrical data Photometrical data
Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white
Type of current AC220-240V Available color temperatures 3000K;4000K;5000K;6000K
Power factor λ >0.95 Color rendering index Ra >80 or >70
Efficiency in % >91% Standard deviation of color matching <5
Start time (0.2s / 0.5s / … ) 0.1S UGR (Unified Glare Rating) <30
Warm-up time to 60 % (1.5s / 2s / … ) 0.5S Available beam angles 60°/90°/110°
Standards & Certification Temperatures & operating conditions
Type of protection IP65 Heatsink temperature 5~+70℃
Tested dielectric strength 3.75KVac Ambient temperature -30~+55℃
Safety features Open circuit protection;
short circuit protection ;
overvoltage protection		 Storage temperature -40~+80℃
Certificates UL, cUL, DLC, CE, RoHS, TUV, SAA
Energy efficiency class A+
Lifespan Features/Capabilities and additional product data
Rated nominal Lifetime 50,000hours Base/Socket Directly wired
Switching cycles 100,000 times Dimmable 1-10V dimmable / DALI dimmable
Lumen maintenance at e.o.l. 70%
Packing Information
Model Dimension CTN SIZE(mm) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg)
HB07-100W/150W Φ280*188 36*35*27 1PCS 3.5 4.5
HB07-200W Φ320*188 39*36*27 1PCS 4.3 5.5

IK65 IK10 180lm/W HB07 skybay highbay with AC220-240V 5 year warranty

FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.

2.Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3.Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4.Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2)30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5.Q:How long is the delivery time?

A:About 7 days
