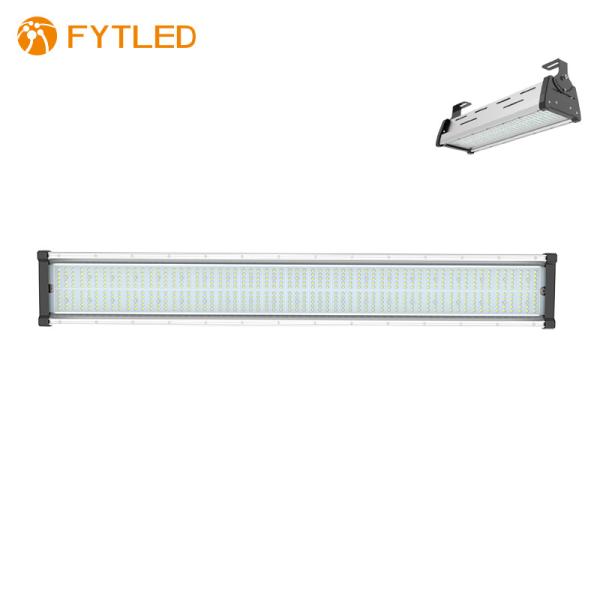

Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights
Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights
Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights
Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights
Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights
Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights
Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights
Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights
Specifications
Brand Name :
FYTLED
Model Number :
3103
Certification :
CE RoHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD25-160/PCS
Payment Terms :
T/T, D/P, L/C
Delivery Time :
3-16 work days
Packaging Details :
2PCS/CTN
Model :
3103-240W09
Power Consumption :
170W-240W Adjustable
Efficiency :
150±10lm/W
Luminous Flux (±10%) :
36000±2400lm
Beam Angle :
60°/90°/120°/40*130°/90*120°
Driver Type :
Constant Current (CC)
Description

3103 HIGHBAY LIGHT 240W 900MM 5000K 36000LM 50000 HOURS LIFE TIME

The Starline Extra 3103 was designed for tall halls, high warehouses, loading areas and freight yards. Various lenses,
especially the asymmetric beam angle is very good option for warehouse with racks. This linear high bay to be efficiently used in heights up to 30m. Unique tempered glass design is perfect choice for harsh conditionand easy for cleaning.

Features

• 170W-240W Adjustable
• 36000±2400lm
• Tempered Glass cover
• 60°/90°/120°/40*130°/90*120° Beam Angle, more options available
• 5 years warranty

Options Available:
1-10V/ DALI DRIVER

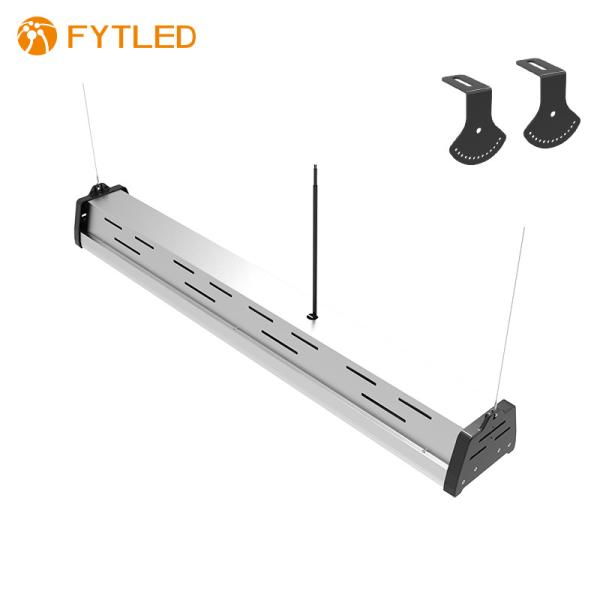

SURFACE MOUNTING BRACKET
CRI >80/ 90 OPTIONAL
WIRE GUARD
Specifications
Model No. 3103-240W09
Power Consumption 170W-240W Adjustable
Product Dimension 875*168*133(mm)
Efficiency 150±10lm/W
Luminous Flux (±10%) 36000±2400lm
LED Quantity 448 PCS (EMC 3030)
CCT 3000K;4000K;5000K;6000K
Ingress Protection IP65
Color Rendering Index Ra>70
Beam Angle 30°/60°/90°/120°/40*130°/90*120°

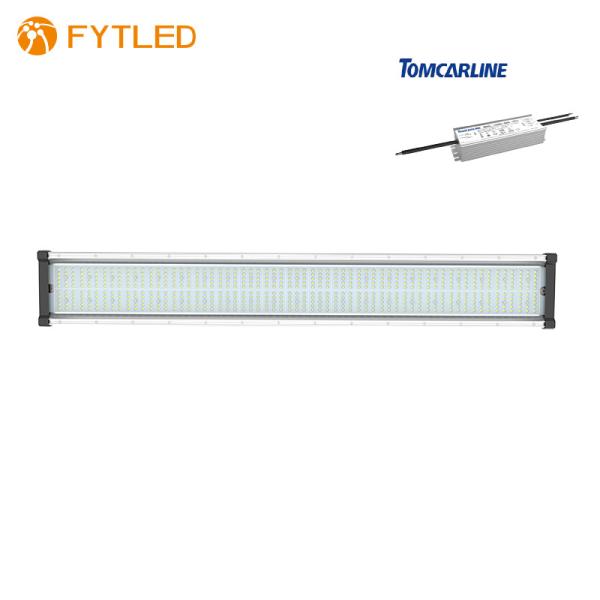

Driver Brand TOMCARLINE(MW or other brand optional)
Input Voltage AC100-277V100-350V277-480V
Power Factor >0.9
Frequency 47-63HZ
Driver Type Constant Current (CC)
Luminaire Net Weight 8.8kg
Packing Information 2PCS/CTN
Export Carton Size 95*41*19(cm)
Gross Weight 20.5kg
Material Housing Aluminum Alloy
Optics Tempered Glass+ Lens
Finish Powder Coating
Fixture Color Silver+Black

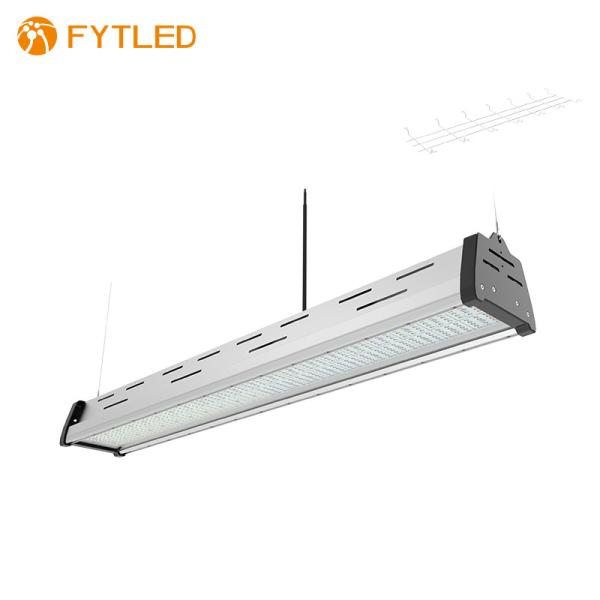

Mounting Option Surface mounting/ Suspending ropes installation
Ambient Temperature -30~+45℃
Life Time 50.000 hours
Warranty 5 Years
Dimmable 1-10V dimmable, Dali dimmable
Optional Accessories 1-10V/ DALI driver
Surface mounting bracke
CRI >80/ 90 optional
Wire guard

Aluminum Alloy 5000K Linear LED High Bay Lights , 240 Watt High Bay Led Lights

FAQ:
1. Delivery Time:
Normal 15 days after order confirming. Some items maybe more faster
2. Payment Terms:
T/T 30% deposit after order confirmed, the balance after goods ready
3. OEM :
OEM Service is available.
4. Shipping Ways:
By Express: DHL, UPS, EMS, TNT, etc.
By Air: Please let us know the airport.
By Sea : Please let us know the seaport.
UPS, FEDEX, EMS etc
