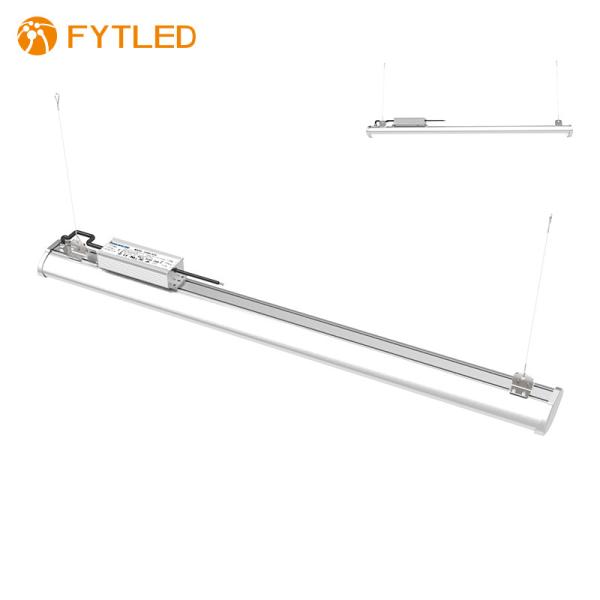

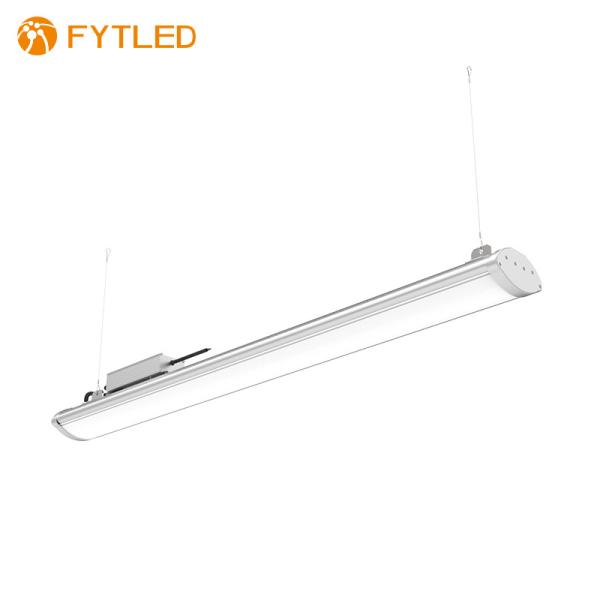

PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
Specifications
Brand Name :
FYT LED
Model Number :
T12C-240W
Certification :
UL, cUL, DLC, CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
56USD-83USD/piece
Payment Terms :
L/C, T/T, Paypal
Supply Ability :
12000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
2PCS/CTN
Beam angle :
120°
Diffuser material :
High quality optical PC
End cap material :
Aluminum
Market :
Europe, America, Australia, Middle East, Asia
Lifetime :
50,000H
LED type :
SMD2835
Size :
605*135*72mm, 905*135*72mm, 1205*135*72mm
Input voltage :
100-277V, 100-480V
Description

240W 36000lm T12C linear high bay food processing highbay CRI80 extruded aluminum IP65 waterproof PC cover DLC premium

T12C is a very unique design which is designed specially for food industry. The surface is very smooth, no dust hidden and can be cleaned with water directly. Aluminum PCB size is 114*6cm, which is 20 times area of traditional highbay, housing and heat sink are made of pure aluminum which provides excellent cooling performance. We provide 130lm/W efficiency version as standard, and 150lm/W high efficiency version optional. This product will absolutely help you save money on electricity cost, and provide nice lighting effect. Due to good heat dessipation, the lifespan will be longer than general light fixtures. We provide 5 years warranty, actually, it has longer lifespan.

Main Features

- 130lm/W standard (150 lm/w selectable)
- Good cooling due to pure aluminum housing
- IP65 and IK10
- CRI 80 natural color presentation
- D-Mark tested for the use in paper production, wood processing etc.

OPTIONS

- Meanwell driver available
- CRI 90 Ra available upon request
- 1-10V dimmable and DALI, DMX dimmable
- Microwave motion sensor
- Emergency power supply

AREA OF APPLICATION

- Factories and warehouses
- Food processing workshop
- Super market
- Indoor sports field

CERTIFICATIONS
American market: UL, cUL, DLC Premium
European market: TUV, GS,CB,CE, RoHS
Australian market: SAA, C-Tick

PRODUCT SPECIFICATIOM

Specification for T12C Tomline Linear High Bay

General

Information

 Product Type Food Processing Linear high bay
Product Size 605*135*72mm, 905*135*72mm, 1205*135*72mm
Electric parameter Driver Brand Tomcarline/Meanwell HLG Series
Input Voltage AC90-305V/50-60Hz
Power 100W/150W/200W/240W
PF >0.95
Optical Parameter LED Brand Lumileds 3030
CRI >80
Color Temperature (CCT) 3000K-6000K
Luminous Flux up to 31000lm
Luminous Efficiency 155lm/w
Beam angle 120°
Others Lifetime 50,000Hr
Operating temperature -40℃~50℃
Warranty 5 years
Materials Extruded aluminum housing, PC cover
Installation Suspending
Application Warehoues, factory workshop, exhibition room, food factory etc.

PACKING
2pcs per carton: 1 piece in each inner box, and two inner box in one carton.
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
Model Dimension(mm) CTN Size(cm) QTY/CTN N.W/pc (kg) G.W/CTN (kg)
T12C-60W/100W 605*135*72 66*28*18 2 pcs 3.5 8.3

T12C-150W

 905*135*72 96*28*18 2 pcs 4.6 10.8
T12C-200W 1205*135*72 125*28*18 2 pcs 5.7

13.8

INCLUDED MOUNTING ACCESSORY
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
(Surface mounting bracket is optional)
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
OPTIONAL ACCESSORIES
0-10V and DALI dimmable driver
Surface mounting bracket with ±60° angle adjustment
Emergency battery pack
IP65 junction box
IP65 Microwave motion sensor
Zigbee control and gateway
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights

FAQ

1,Prices conditions
Price can be FOB, CIF ,EXW, or With taxes


2,What will be the delivery time and what will be the mode of payment?
About 4-7days. But if you want a special sample, it will need some times to make the mold.

The payment can be T/T transaction,Letter of credit,Paypal,Western Union


3,Could you please send me the sample for the same.So that i could see and analyze its quality?
Yes.We can send samples first,samples need to be charged if the value is higher. According to some certain project, we can also provide free sample for testing.


4,Will there be any contract for this business or trade?
Yes,there is a normal PI before the order is placed.

DELIVERY TIME
5-7 days for sample
4-5 weeks for main order
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
PROJECT PICTURE
PC Cover 240W Linear LED High Bay Lights , 277 Volt Led High Bay Lights
