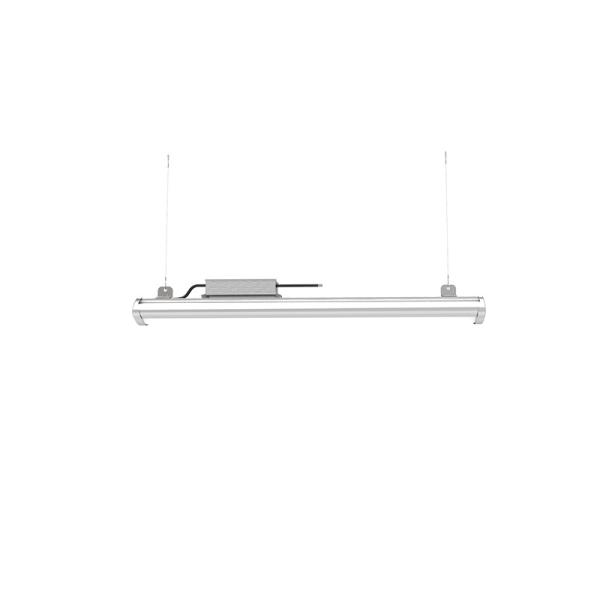

Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
Specifications
Brand Name :
FYTLED
Model Number :
T10C-100W
Certification :
ETL, DLC, FCC,TUV, ENEC, CB, CE(EMC,LVD), RoHS, C-TICK, SAA
Place of Origin :
China(Mainland)
MOQ :
1pc
Price :
56USD-83USD/piece
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
15000pcs per month
Delivery Time :
4 weeks for bulk order, 2-5days for sample order
Packaging Details :
2pcs in one carton
Power :
100W
Coating :
Silver
Efficiency :
130lm/W(150lm/W optional)
Emergency power supply :
Support
Zigbee control :
Support
Warranty :
5 years
Description

Up to 150lm/W high efficiency linear high bay silver finish extrusive aluminum 6063 housing excellent heat dissipation

Features

- Up to 150lm/W, super energy-saving
- Good heat dissipation due to massive long cooling fins
- Wide beam angle 120 degree
- Uniform and high quality light low glaring
- 5 Years warranty

BENIFITS
- Replacement for 250W HID and HIP highbay light
- Modern elegent design
- Excellent heat dissipation performation
- Uniform light distribution
- 10 years warranty negotiable

OPTIONS

- Meanwell driver available
- CRI 90 Ra available upon request
- 1-10V dimmable and DALI available
- Microwave motion sensor available
- Optional emergency power supply

AREA OF APPLICATION

- Factories and warehouses
- Food processing workshop
- Indoor sports field

CERTIFICATIONS
American market: ETL, DLC Premium
European market: TUV, GS,CB,CE (EMC, LVD, RoHS), D-Mark
Australian market: SAA, C-Tick,RCM

PRODUCT SPECIFICATIOM

Specification for T10C Tomline Linear High Bay

General

Information

 Product Type Linear high bay
Product Size 605*135*72mm, 905*135*72mm, 1205*135*72mm
Electric parameter Driver Brand Tomcarline/Meanwell HBG Series
Input Voltage AC90-305V/50-60Hz
Power 100W/150W/200W/240W
PF >0.95
Optical Parameter LED Brand Lumileds 3030
CRI >80
Color Temperature (CCT) 3000K-6000K
Luminous Flux up to 30000lm
Luminous Efficiency 150lm/w
Beam angle 120°
Others Lifetime 50,000Hr
Operating temperature -40℃~50℃
Warranty 5 years
Materials Extruded aluminum housing, PC cover
Installation Suspending
Application Warehoues, factory workshop, exhibition room etc.

PACKING
2pcs per carton: 1 piece in each inner box, and two inner box in one carton.
Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
Model Dimension(mm) CTN Size(cm) QTY/CTN N.W/pc (kg) G.W/CTN (kg)
T10C-100W 605*135*72 66*28*18 2 pcs 3.5 8.3
T10C-150W 905*135*72 96*28*18 2 pcs 4.6 10.8
T10C-200W 1205*135*72 125*28*18 2 pcs 5.7 13.8

INCLUDED MOUNTING ACCESSORY
Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
(Surface mounting bracket is optional)
OPTIONAL ACCESSORIES
0-10V and DALI dimmable driver
Surface mounting bracket with ±60° angle adjustment
Emergency battery pack
IP65 junction box
IP65 Microwave motion sensor
Zigbee control and gateway
Heat Dissipation Silver 150lm/W Hanging High Bay Lights , 4ft Led Linear High Bay
Why choose us?


1. Your inquiry related to our products or prices will be replied in 12 hours.
2. Welcome to visit our factory to check the production process.
3. We always try our best to save the manufacture cost in order to give you super high quality
with the resonable price.
4. Well-trained and experienced staffs to answer all your inquiries in fluent English.
5. Distributer-ship are offered for your unique design and some our current models.
6. Trial order with small quantities is available for our first cooperation and we can also provide
you with wholesale price;

Delivery time

2-5 days for sample order

4-6 weeks for bulk order
