110 Degree 900mm 32000lm Linear Led High Bay Lights For High Rooms
110 Degree 900mm 32000lm Linear Led High Bay Lights For High Rooms
110 Degree 900mm 32000lm Linear Led High Bay Lights For High Rooms
110 Degree 900mm 32000lm Linear Led High Bay Lights For High Rooms
Specifications
Brand Name :
FYTLED
Model Number :
T109-200W
Certification :
CE UL CB
Place of Origin :
CHINA
MOQ :
2PCS
Price :
USD10-200/PCS
Payment Terms :
T/T, D/A T/T
Delivery Time :
3-15 work days
Packaging Details :
2PCS/CTN
Wattage :
120W
Luminous Flux :
32000LM
Driver :
200H-42V
Input Voltage :
AC100~277V50~60Hz
CCT :
6000K
SPD :
10/20KV
Description

200W 900MM 110 DEGREE 32000LM LUMILEDS T109 LINEAR HIGHBAY

FYT Skyline G3 T109 linear highbay is suitable for indoor & try applications. The light distribution performance is very good and thankfully of the housing has very little light decay over time. It is suitable to install in factories, warehouses, high rooms, halls, exhibitions orshowrooms due of the smooth surface design.

Features

• 200W
Efficiency: 130±10lm/w , 160±10lm/w
•High luminous flux for 200W is 32000 lumens

OPTIONS

• DALI dimmable driver

• 100W-150W Adjustable
• 20KV SPD

AREA OF APPLICATION

• Factories and warehouses
• High rooms and halls
• Exhibition & showroom
Specifications
Model No. T109-200W09
Power Consumption 140W-200W Adjustable
Product Dimension 902*158*92(mm)
Efficiency 130±10lm/w
Luminous Flux (±10%) 26000±2000lm
LED Quantity 500 PCS (SMD 2835)
High Efficiency 160±10lm/w
Luminous Flux (±10%) 32000±2000lm
LED Quantity 600 PCS (SMD 2835)
CCT 3000K;4000K;5000K;6000K
Ingress Protection IP42
Color Rendering Index Ra> 80
Beam Angle 110°
Driver Brand TOMCARLINE (MW or other brand optional)
Input Voltage AC100-277V
Power Factor >0.95
Frequency 47-63HZ
Driver Type Constant Current (CC)
Luminaire Net Weight 4.5kg
Packing Information 2PCS/CTN
Export Carton Size 98*38*15(cm)
Gross Weight 11.6kg
Material Housing Aluminum Alloy
Optics PC milky cover
Finish Powder Coating
Fixture Color Silver
Mounting Option Surface mounting/ Hanging rope installation
Ambient Temperature -30~+45℃
Life Time 50.000 hours
Warranty 5 Years
Dimmable 1-10V dimmable, DALI dimmable
Intelligent Control 12V Plug-and-Play PIR or Microwave motion sensor/ ZIGBEE
Optional Accessories 1-10V/ DALI driver
Emergency power supply
High voltage power supply(277-480V)
Ceiling mounted / Suspending ropes
10KV SPD/ 20KV SPD
CRI> 90
PC clear cover

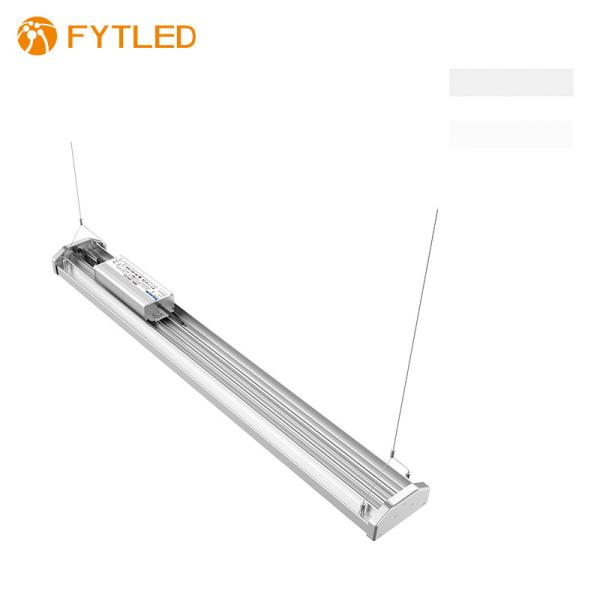

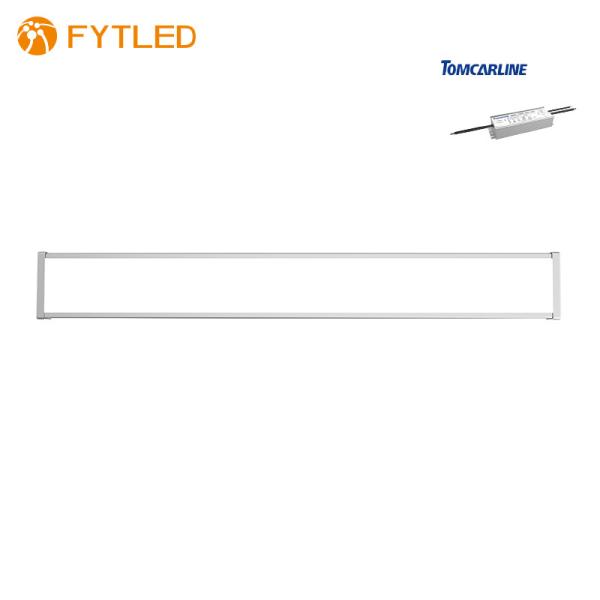

Picture:

110 Degree 900mm 32000lm Linear Led High Bay Lights For High Rooms

FAQ

1, Prices conditions
Price can be FOB, CIF ,EXW, or With taxes
2, What will be the delivery time and what will be the mode of payment?
About 4-7days. Butif you want a specialsample, it will need some times to make the mold.
The payment can be T/T transaction,Letter of credit,Paypal,Western Union
3, Could you please send me the sample for the same.So that i could see and analyze its quality?
Yes.We can send samples first,samples need to be charged if the value is higher.
4, Will there be any contract for this business or trade?
Yes,there is a normal PI before the order is placed.
