Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Specifications
Brand Name :
FYTLED
Model Number :
T10B
Certification :
UL, DLC, FCC,TUV, ENEC, CB, CE(EMC,LVD), RoHS, C-TICK, SAA, RCM
Place of Origin :
CHINA
MOQ :
1 piece
Price :
56USD-83USD/piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
2PCS/CTN
Material :
Extruded aluminum
Efficiency :
Up to 150lm/W
Input Voltage :
100-277VAC
Power Factor :
>0.9
UGR :
<27
Operating Temp :
-20~+ 69℃
Ambient Temp :
-30~+ 50℃
Safety features Features :
Open circuit protection; Short circuit protection ; Overvoltage protection
IP Rating :
IP65
Warranty :
5 years
Description

High efficiency Energy Saving Tomline T10B Extruded Aluminum Linear LED Hig Bay IK10 for Indoor Sports Field

Our T10B linear high bay light was specially designed for use in industrial environments. Due to a massive aluminum heat sink and high quality components this product was built to last for many years. The enormous light output and the high efficiency make this high bay an ideal replacement for all sorts of traditional industrial lamps. This extremely robust industrial light is available in three versions: standard, Lumen-Plus and dust-free version. All versions can be used in all areas where an IP grade up to IP65 is needed. Thanks to the large polycarbonate cover and the high quality LED chips the illumines distribution is perfectly homogeneous.

Features

- Extremely energy efficient - up to real 150 lm/w
- Excellent heat dissipation performance
- High color fidelity through CRI 80Ra
- Perfectly suitable for industrial use due to IP65
- D-Mark tested for the use in paper production, wood processing etc.
- 5 Years warranty

OPTIONS

- Optional Mean well driver available
- CRI 90 Ra available upon request
- 1-10V dimmable and DALI available
- Microwave motion sensor available
- Optional emergency power supply
BENIFITS
- Replacement for HID and HIP 250W-400W highbay light
- Energy saving over 50%
- Uniform light distribution

AREA OF APPLICATION

Factories and warehouses
High rooms and halls
Exhibition- & showrooms
Suitable for outdoor use

PRODUCT SPECIFICATIOM

Specification for T10B Tomline Linear High Bay

General

Information

 Product Type Linear high bay
Product Size 605*135*72mm, 905*135*72mm, 1205*135*72mm
Electric parameter Driver Brand Tomcarline/Meanwell HBG Series
Input Voltage AC90-305V/50-60Hz
Power 100W/150W/200W/240W
PF >0.95
Optical Parameter LED Brand Lumileds 3030
CRI >80
Color Temperature (CCT) 3000K-6000K
Luminous Flux up to 31000lm
Luminous Efficiency 155lm/w
Beam angle 120°
Others Lifetime 50,000Hr
Operating temperature -40℃~50℃
Warranty 5 years
Materials Extruded aluminum housing, PC cover
Installation Suspending
Application Warehoues, factory workshop, exhibition room etc.

CERTIFICATIONS
American market: UL, DLC Premium, cUL
European market: TUV, GS,CB,CE (EMC, LVD, RoHS), D-Mark
Australian market: SAA, C-Tick,RCM

PACKING
2pcs per carton: 1 piece in each inner box, and two inner box in one carton.
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Model Dimension(mm) CTN Size(cm) QTY/CTN N.W/pc (kg) G.W/CTN (kg)
T10B-100W 605*135*72 66*28*18 2 pcs 3.5 8.3

T10B-150W

 905*135*72 96*28*18 2 pcs 4.6 10.8
T10B-200W/240W 1205*135*72 125*28*18 2 pcs 5.7

13.8

INCLUDED MOUNTING ACCESSORY
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
(Surface mounting bracket is optional)
OPTIONAL ACCESSORIES
0-10V and DALI dimmable driver
Surface mounting bracket with ±60° angle adjustment
Emergency battery pack
IP65 junction box
IP65 Microwave motion sensor
Zigbee control and gateway
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
DELIVERY TIME
5-7 days for sample
4-5 weeks for main order

FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.

2.Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3.Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4.Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2)30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5.Q:How long is the delivery time?

A:About 7 days

Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field

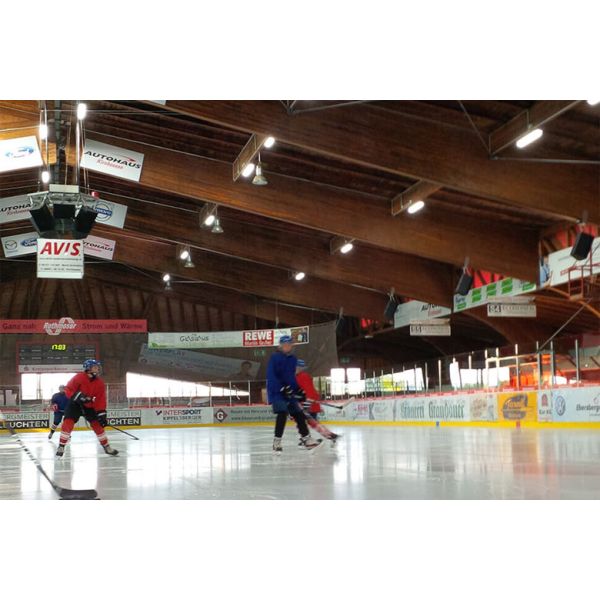

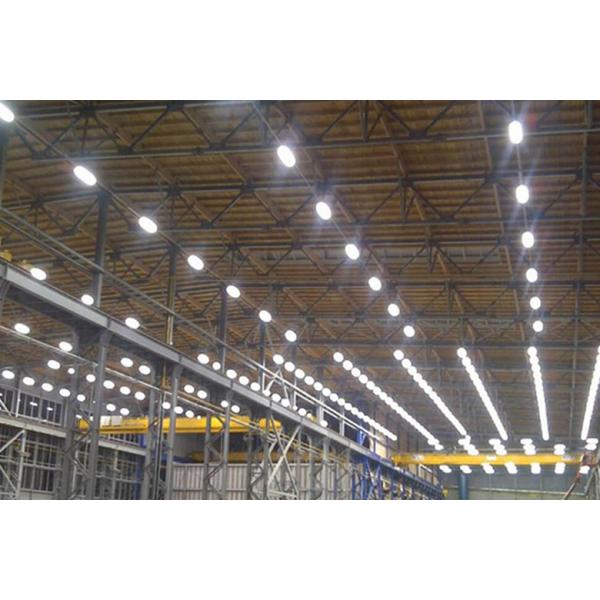

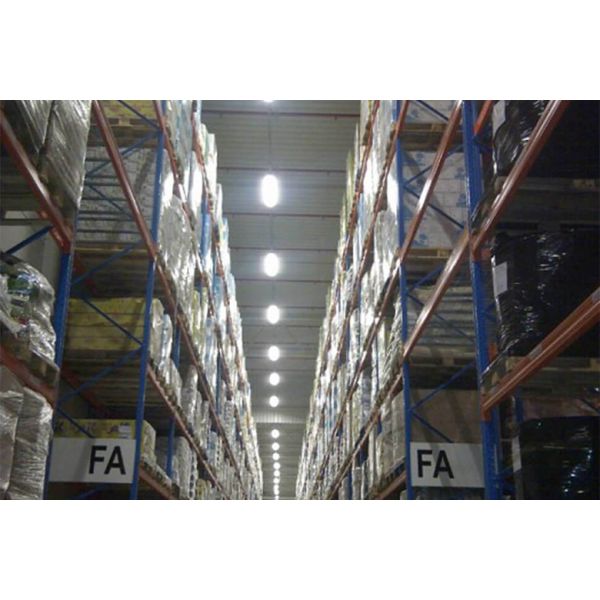

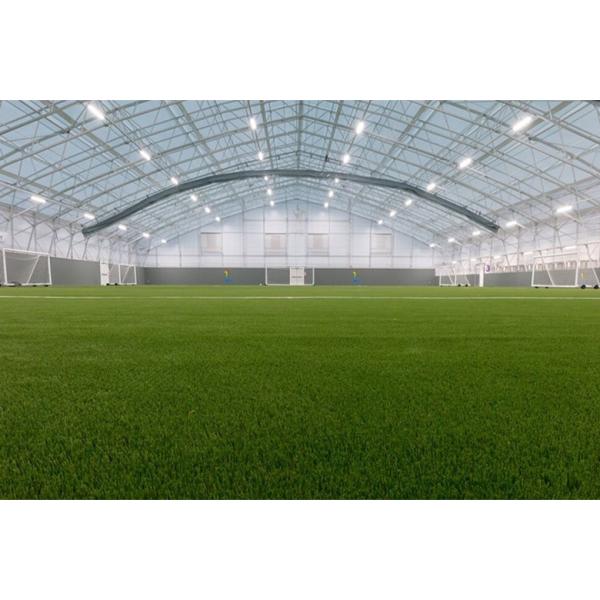

PROJECT PICTURE
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
Tomline T10B 2ft LED Industrial High Bay Light Extruded Aluminum For Indoor Sports Field
