Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape
Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape
Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape
Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape
Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape
Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape
Specifications
Brand Name :
LEDIKA
Model Number :
TRB
Certification :
TUV
Place of Origin :
Guangzhou,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50,000M/ month
Delivery Time :
15-20 working days
Packaging Details :
Carton with film / Flight case / Wooden box
Span :
12-36m (customized)
Product :
Aluminum Spigot Truss
Type :
Bolt/Spigot/Folding
Color :
Red/Black/Sliver(custmoized)
Material :
6082-T6 Aluminum Alloy
Shape :
Triangle,or Square, Oblong,
Length :
0.5m-4m
Application :
Concert, Party, Wedding
Description

Lighting Aluminum Triangular Bolt Truss For Club Park Dj Customized Shape


Product's Material

  • Material : 6082 Aluminum
  • Color : Silver, Black, Red, Green or Customized
  • Standard: TUV ,SGS, ISO9001
  • Truss Shape: Triangular

Product Description


Aluminum Triangular Bolt Truss is made by international standard aluminum 6082 , with the advantages of beautiful appearance,small volume, easy to set up and transport, it also has the advantages of excellent compressive and anticorrosive performance; the truss average loading can meet many kinds of performances, business conferences audio equipment requirements. Other irregular shapes can be customized according to your requirements.

Truss section specification(L*W): mm= millimeter

(1) Light Series

Size of Truss 287x287mm 290x290mm 300x300mm 305x305mm
Connection Spigot Bolt/Spigot Bolt Bolt
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
Truss sub-tube / Diameter Ø 20mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm
Truss brace tube Diameter Ø 20mm , Thickness 2mm Diameter Ø 20mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm Diameter Ø 25mm , Thickness 2mm
Truss Joint Diameter Ø 50mm Mould die 50x25mm 100x10mm
Max Loading 520-800kg 720-1200kg 600-1100kg 640-920kg
Max Span 12m 12m 12m 12.2m

(2) Medium Series

Size of Truss 450x450mm 410x410mm 400x400mm 387x387mm
Connection Spigot/Bolt Bolt Bolt/Spigot Bolt
Truss main tube Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm Diameter Ø 50mm , Thickness 3mm
Truss sub-tube Diameter Ø 50mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm /
Truss brace tube Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm Diameter Ø 30mm , Thickness 2mm
Truss Joint 50x40mm 100x10mm 50x25mm Ø 50mm
Max Loading 790-1100kg 600-900kg 600-1100kg 690-930kg
Max Span 18m 12.2m 16m 16m

Applications:

1.Celebration services: opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon-cutting, the launching ceremony, the unveiling ceremony,

the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;


2.Performances service: Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign

star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.


Pictures

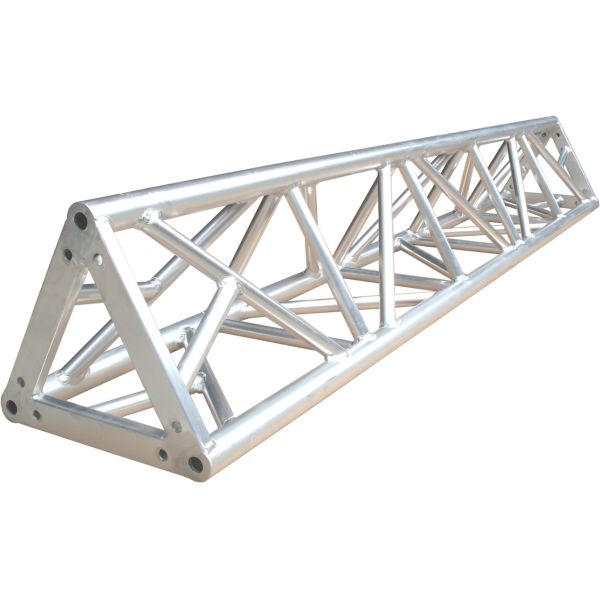

Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape

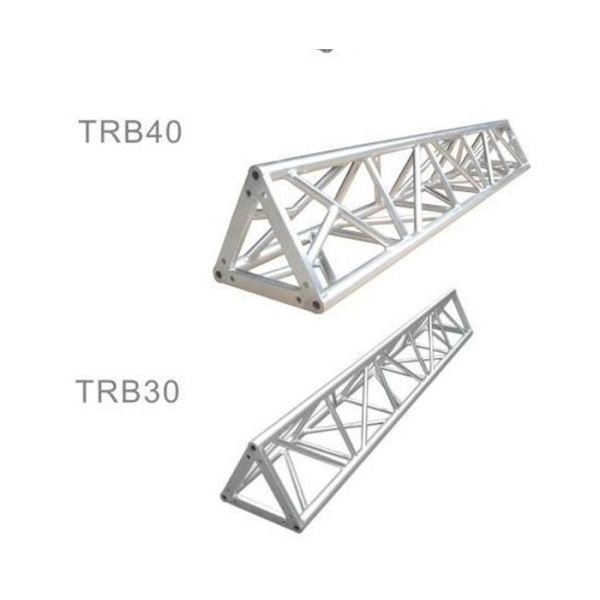

Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape

Concert Lighting Aluminum Spigot Truss Triangular Bolt Truss Customized Shape

Welcome to contact us for a long term cooperation !​
