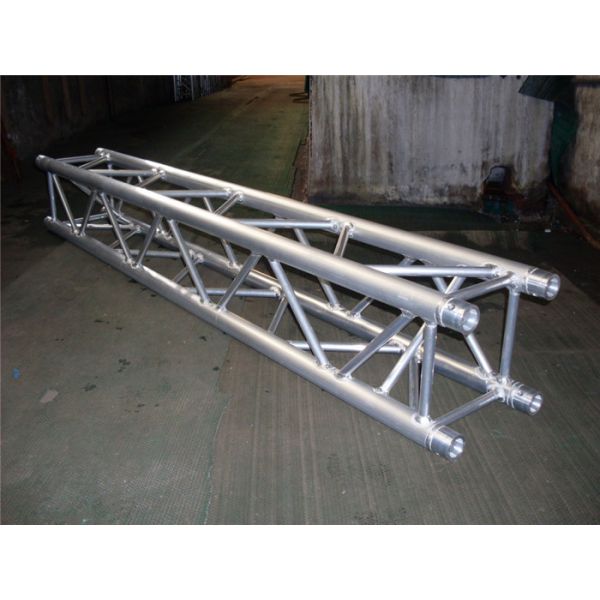

6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m
6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m
6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m
6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m
6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m
6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m
6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m
6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m
Specifications
Brand Name :
LEDIKA
Model Number :
SQS290
Certification :
TUV/ISO9001
Place of Origin :
Guangzhou, China
MOQ :
10pcs
Price :
$60-$200 per meter
Payment Terms :
T/T, L/C
Supply Ability :
10000pcs per month
Delivery Time :
15 days
Packaging Details :
Carton or bubble bag
Material :
6082 T6 Aluminum
Truss size :
290 X 290 mm
Length :
0.5m-4m
Color :
Silver, black, red
Application :
Games, events, LED screen
Shape :
Square
Tube size :
50*3mm
Weight :
6kg per meter
Description

6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m

6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m

Material

Aluminum 6082/T6

Length available

1m,2m,3m,4m.

Shape

Ladder,Triangle,Square,Circle Truss

Color

Silvery and Black or Customized

Certification

TUV

Features

Spigot connect

Application

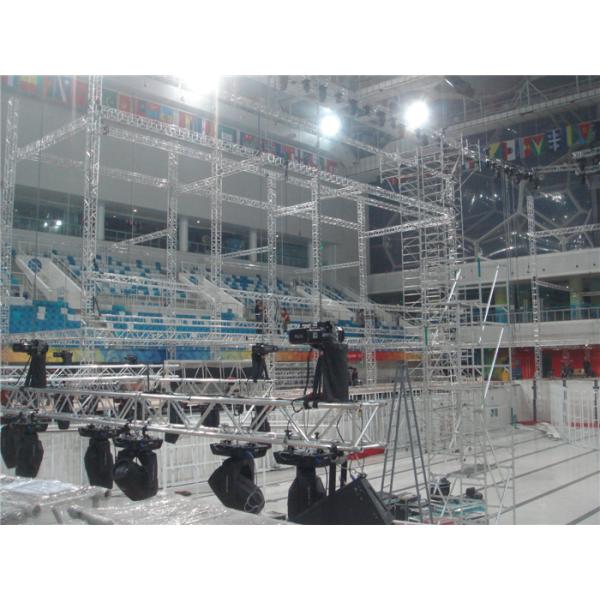

Truss system:Used for concert, exhibition, fashion show, auto show, school performance and so on.

LED truss to hang light, LED, speaker, audio

Similar Products
6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m



Product Advantages

1. 15 years perfessional stage truss big events experience since 2001.


2. Projects case are cover to all over the world.


3. LEDIKA Brand is famous in many countries and government tender brand.


4. OEM and R&D support.


5. We attend to prolight show every year.


6. With material 6082 T6 guarantee certification.


7. Have TUV and ISO certification.


8. Honor of experiences worked for 2007 Special Olympic, 2008 Beijing Olympic Games, Asian Games,

Shanghai Expo and World Youth Skiing Championships etc.


9. Best quality aluminium truss and stage, strict working production process.


10. Life-time after sales service.

6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m

Material Guarantee 6082

The proportion of chemical composition for 6061 and 6082 is different.

One of the most significant newer alloys is 6082, similar to 6061 but with better properties.

6082 has become popular in Europe because it has higher strengths which is allowable tensile strengths are 10 to 18% higher for 6082 than 6061 and better general corrosion resistance than 6061.

6082 was adopted to be using in aviation industry.

6082 T6 Aluminum Stage Lighting Truss Systems Square Spigot 0.5m - 4m

SQS290 Allowable Loading
6082-T6 50*3mm tube as main tube 20*2mm as brace tube
Span LOAD ALL Unitformly distributed load(UDL) Centre point load(CPL) DEFLECTION
m ( ft ) kg kg/m kg (mm)
4 13.1 809.6 202.4 404.3 8
5 16.4 808.5 161.7 404.3 16
6 19.7 808.5 134.8 404.3 27
7 23 808.5 115.5 404.3 43
8 26.2 788.5 98.6 394.2 63
9 29.5 699.9 77.8 350.4 80
10 32.8 631.4 63.1 315.7 99
11 36 576 52.4 288 120
12 39.3 526.7 43.9 263.3 142

Applications:

1.Celebration services: opening ceremonies, anniversary celebrations, housewarming celebration; opened the ribbon cutting, the launching ceremony, the unveiling ceremony, the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;

2.Business services: press conferences, new product launches, the various types conferences such as for investment,order, awards, the annual meeting, customer appreciation, sightseeing exchanges

3.Performances service: Business promotional performances, thank and return banquet, theatrical show, the models show,the ethnic features performances, Chinese and foreign star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.
